Rear Right Park Brake Cable: Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park brake cable. Install the park brake cable to the park brake cable bracket. Install the park brake cable to the park brake actuator. See Figure .

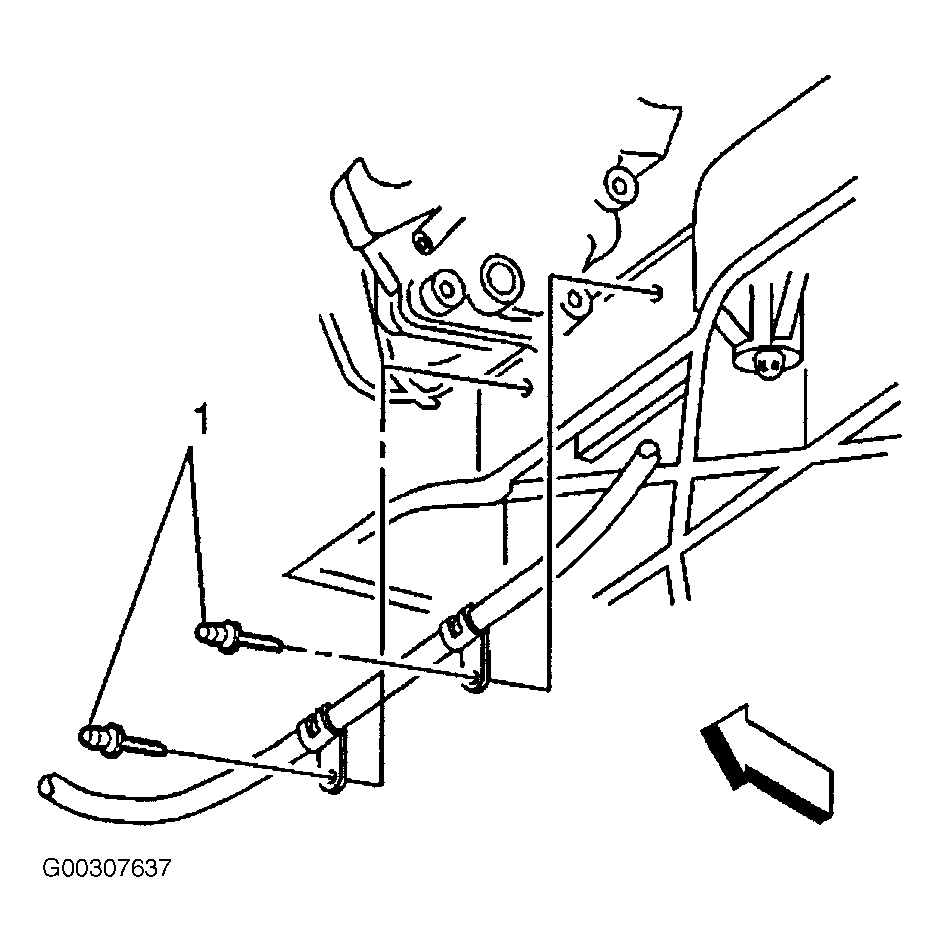

  2. Install the park brake left side cable to the park brake equalizer. Secure the park brake cable to the rear crossmember with 2 rivets. See Figure . Adjust the park brake cable. Lower the vehicle.
