Rear Drum Brake Hose: Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

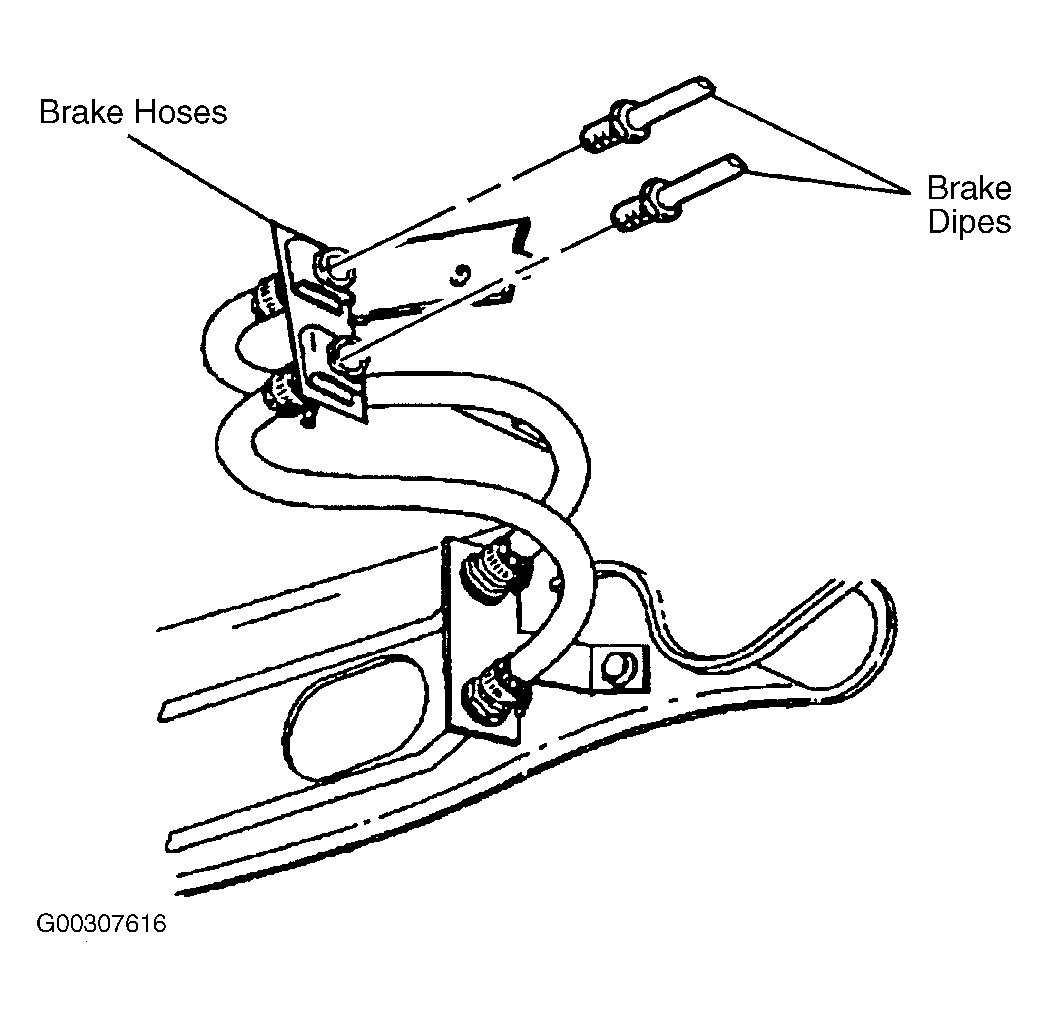

Ensure that there are no kinks in the brake hose. Align the hose fitting with the notch in the brackets. Install the brake hose to the brackets. Install the brake hose retainers to the hose fittings. Install the brake pipes to the brake hose. See Figure . Tighten the fittings to specifications. See TORQUE SPECIFICATIONS  . Bleed the hydraulic brake system. BLEEDING BRAKE SYSTEM  . Lower the vehicle.
