Park Brake Pedal Assembly: Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

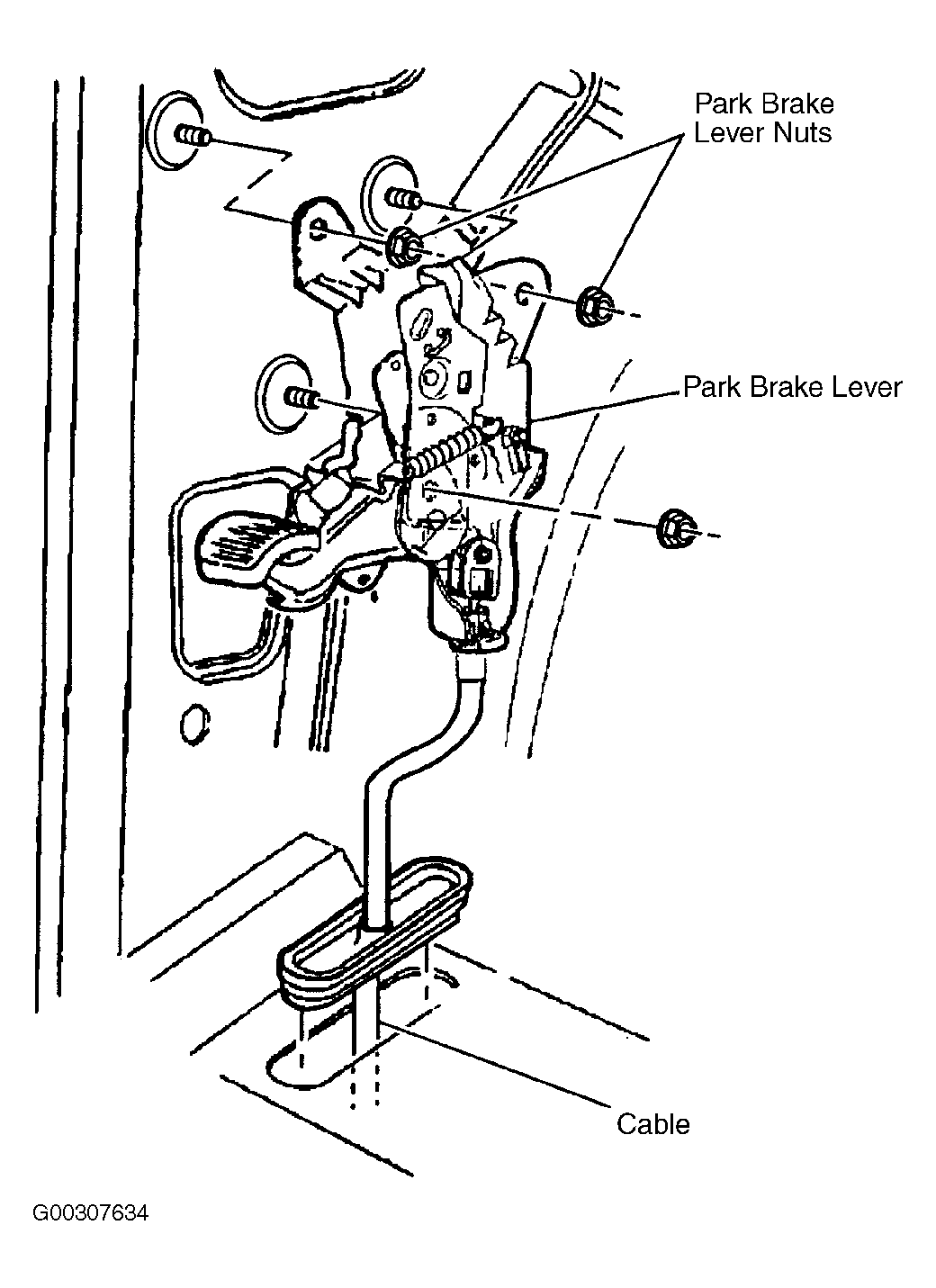

  1. Install the park brake cable to the park brake lever. See Fig 1 . Install the park brake cable end to the park brake lever clevis. Install the park brake lever with the cable. See Figure . Install the park brake lever nuts. Tighten the nuts to specifications. See TORQUE SPECIFICATIONS  .
  2. Install the park brake indicator switch electrical connector. See Figure . Fold the carpet back in place. Install the left-side carpet retainer. Push the door-opening carpet retainers to the retainer support.
  3. Install the left-side instrument panel insulator. Snap the I/P courtesy lamp into the I/P insulator. Position the I/P insulator to the instrument panel. Install the push-in retainers to the I/P insulator to instrument panel. Install the press-on retainers to the I/P insulator to dash mat. Adjust the park brake cable. See PARKING BRAKE ADJUSTMENT - DISC BRAKES  under ADJUSTMENTS & INSPECTIONS.

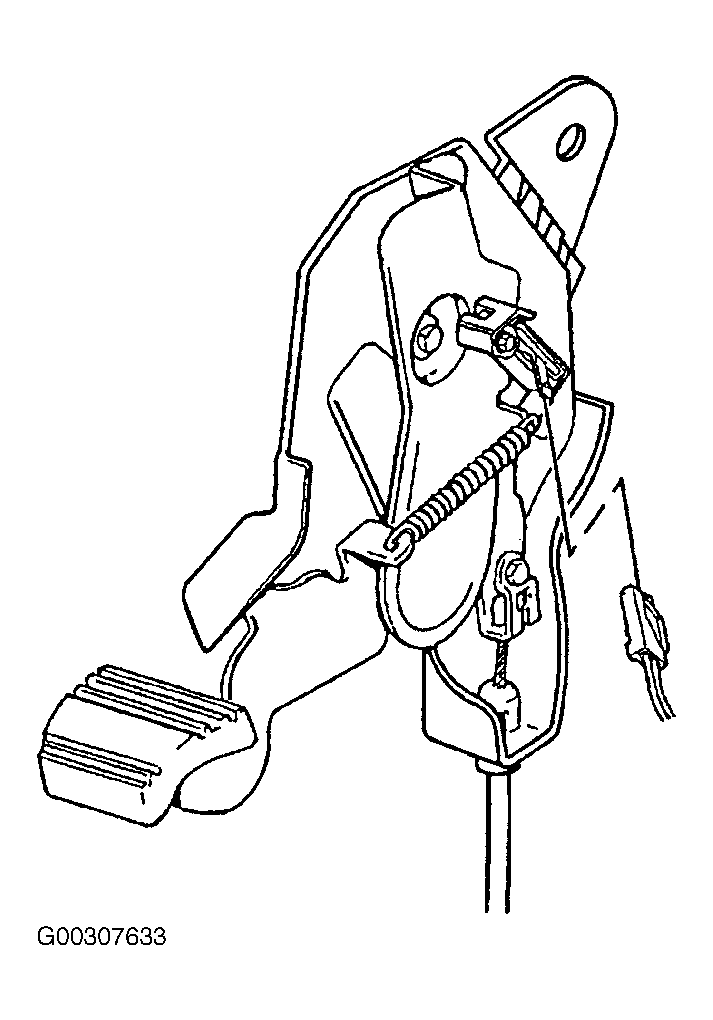

Fig 1: Installing Park Brake Cable To Park Brake Lever
G00307635Courtesy of GENERAL MOTORS CORP.
