Front Park Brake Cable: Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

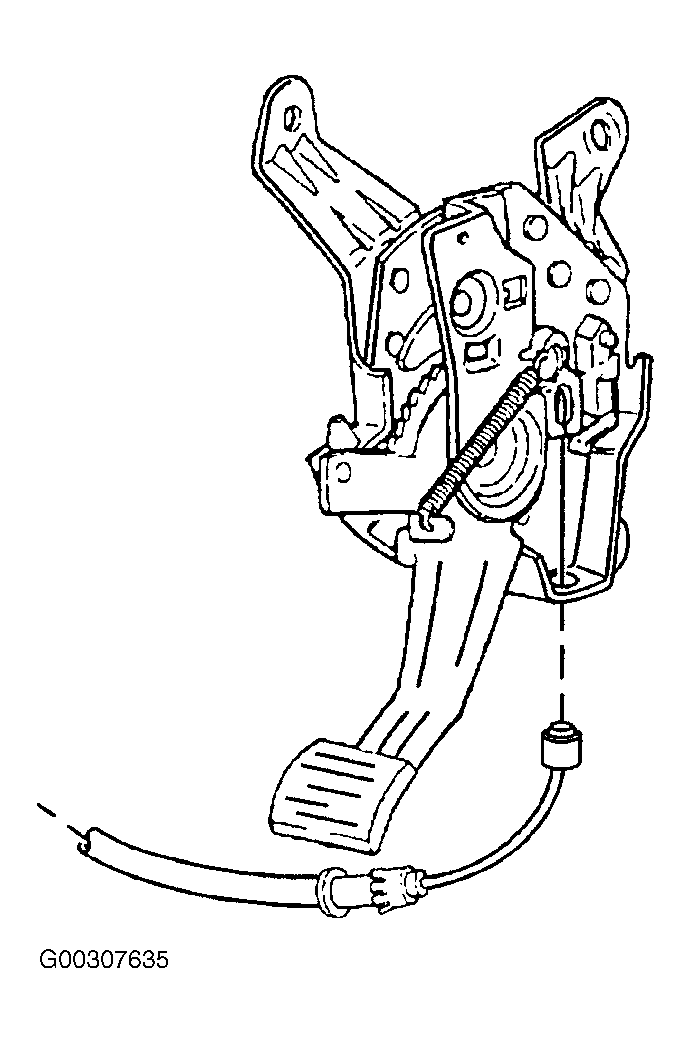

  1. Install the front park brake cable to the vehicle. Install the park brake cable to the park brake lever. See Figure . Install the park brake cable end to the park brake lever clevis. Raise and support the vehicle. Install the park brake cable clips to the park brake cable shielded areas.
  2. Install the park brake cable nuts to the underbody studs. Tighten the nuts to specifications. See TORQUE SPECIFICATIONS  . Install the park brake cable to the park brake cable guides. Install the park brake cable to the park brake equalizer. Install the park brake cable end to the park brake cable connector.
  3. Install the park brake left side cable to the park brake equalizer. Adjust the park brake cable. Lower the vehicle. Fold the carpet back in place. Install the left-side carpet retainer. Install the left-side instrument panel insulator.
