Park Brake Shoe Inspection

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Remove the tire and wheel. Remove the rear brake caliper bracket with the rear brake caliper. See REAR BRAKE CALIPER BRACKET  under REMOVAL & INSTALLATION.
  2. Remove the rear brake rotor. See REAR BRAKE ROTOR  under REMOVAL & INSTALLATION. Inspect the park brake shoe and lining. If it exhibits any of the following conditions, then it requires replacement: Excessive wear indicated by the park brake lining being worn down to the shoe, brake lining cracking or fluid contamination of the brake lining. See Fig 1 .
  3. Install the rear brake rotor. See REAR BRAKE ROTOR  under REMOVAL & INSTALLATION. Install the rear brake caliper with the rear brake caliper bracket. See REAR BRAKE CALIPER BRACKET  under REMOVAL & INSTALLATION. Install the tire and wheel. Lower the vehicle.

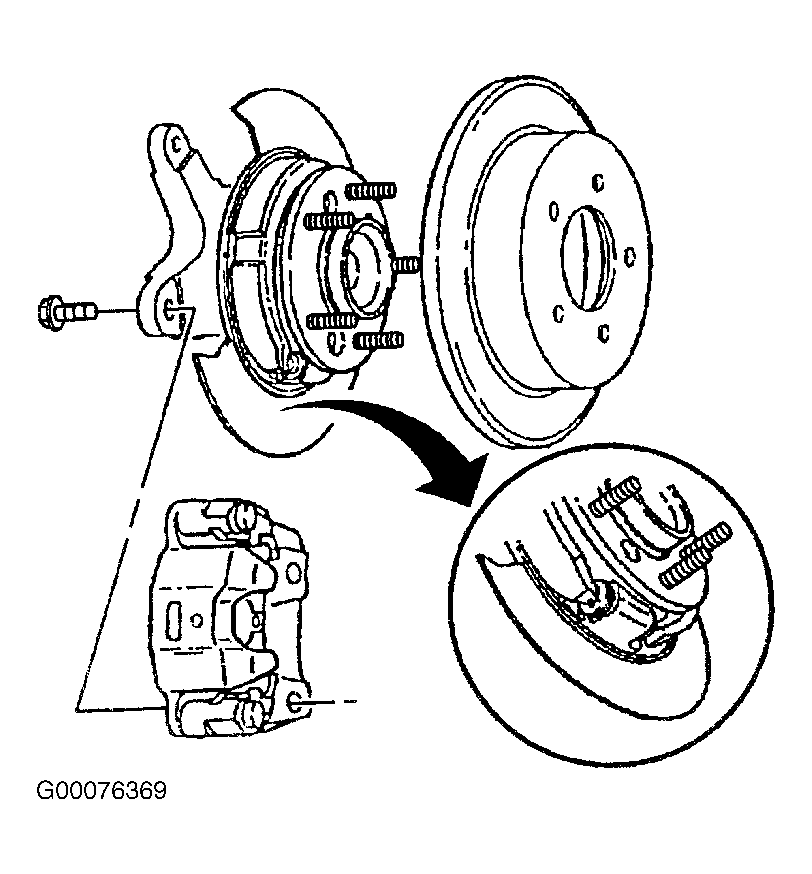

Fig 1: Inspecting Park Brake Shoes
G00076369Courtesy of GENERAL MOTORS CORP.
