Under Rear Axle

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Lift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.

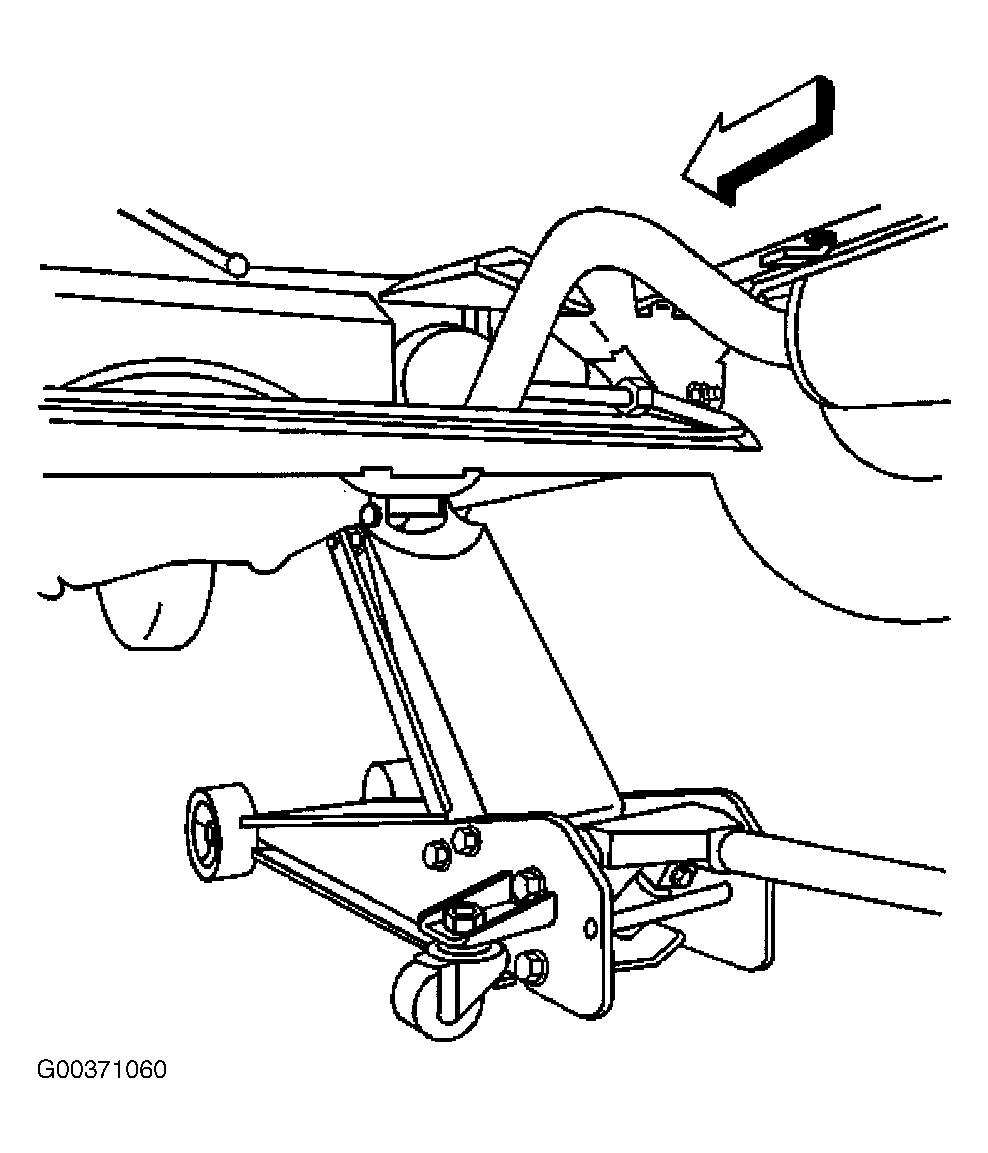

Fig 1: Positioning Floor Jack Under Rear Axle
G00371060Courtesy of GENERAL MOTORS CORP.
