2004 Models: Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a replacement stud in the wheel hub.
  2. Add enough washers (3) in order to draw the stud into the hub (2).

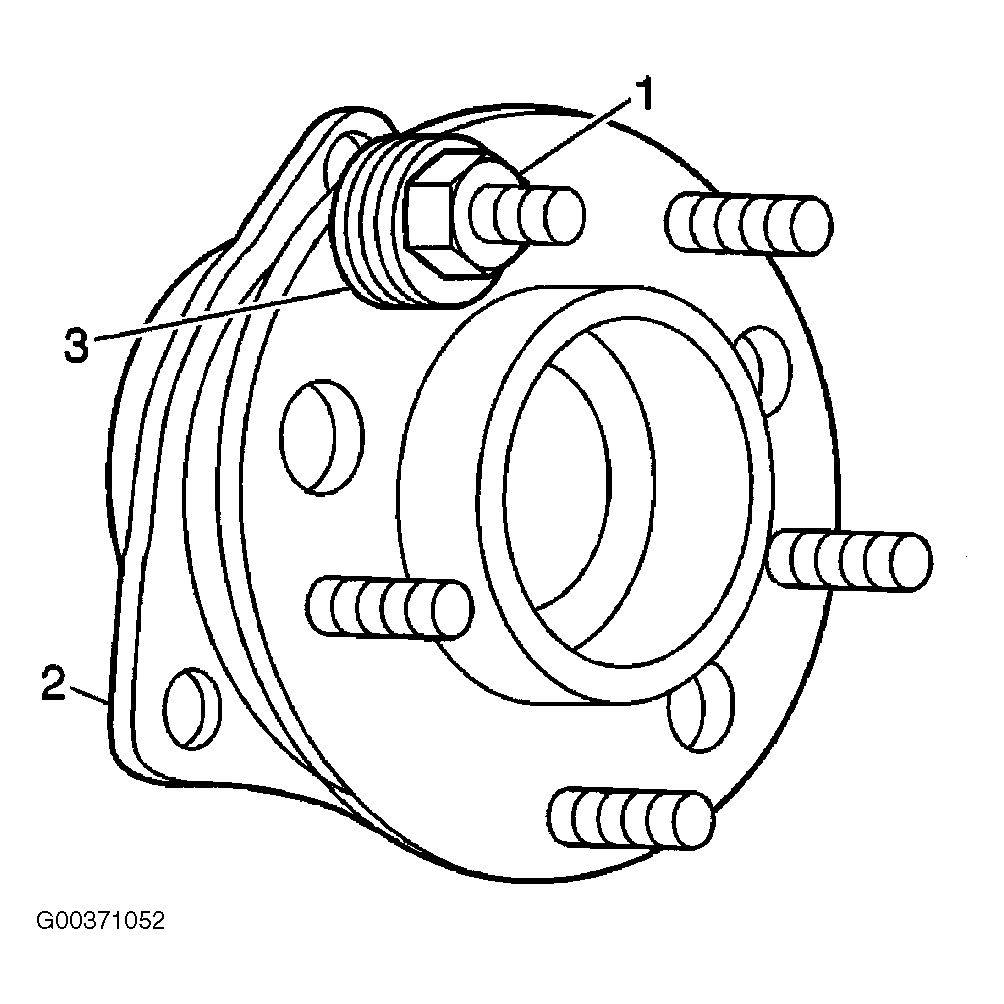

    Fig 1: Using Washers & Wheel Nut To Draw Wheel Stud Into Hub
    G00371052Courtesy of GENERAL MOTORS CORP.
  3. Install the wheel nut (1) with the flat side against the washers (3).
    NOTE: Fully seat the wheel stud against the hub flange (2).
  4. Tighten the wheel nut (1) until the wheel stud is fully seated against the hub flange.
  5. Back off the wheel nut (1) and remove the washers (3).
  6. Install the brake rotor.
  7. Install the brake caliper and bracket.
  8. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  9. Lower the vehicle.
