Rear Disc And AWD: Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel.
  3. Inspect the ball joint. Refer to BALL JOINT INSPECTION .
  4. Disconnect the sensor lead.
  5. If equipped with all-wheel drive (AWD) remove the wheel drive shaft nut. Refer to AXLE SHAFT .
  6. Remove the wheel bearing/hub assembly knuckle bolts (1).

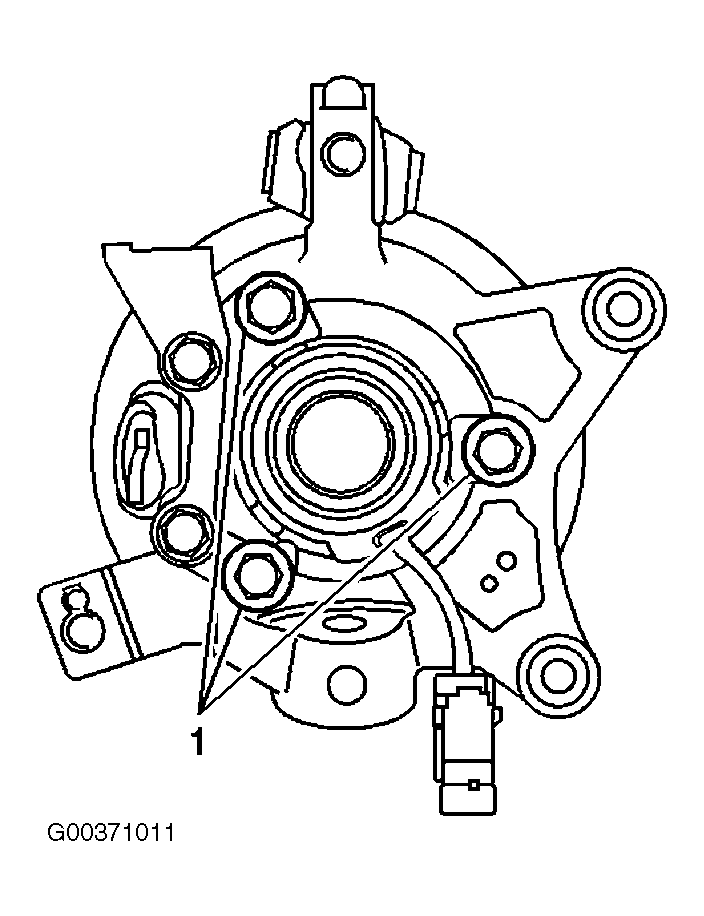

    Fig 1: Identifying Wheel Bearing/Hub Assembly Bolts
    G00371011Courtesy of GENERAL MOTORS CORP.
  7. Remove the wheel bearing/hub assembly from the knuckle.
