Rear Disc And AWD: Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel bearing/hub assembly (1) on to the knuckle (2).

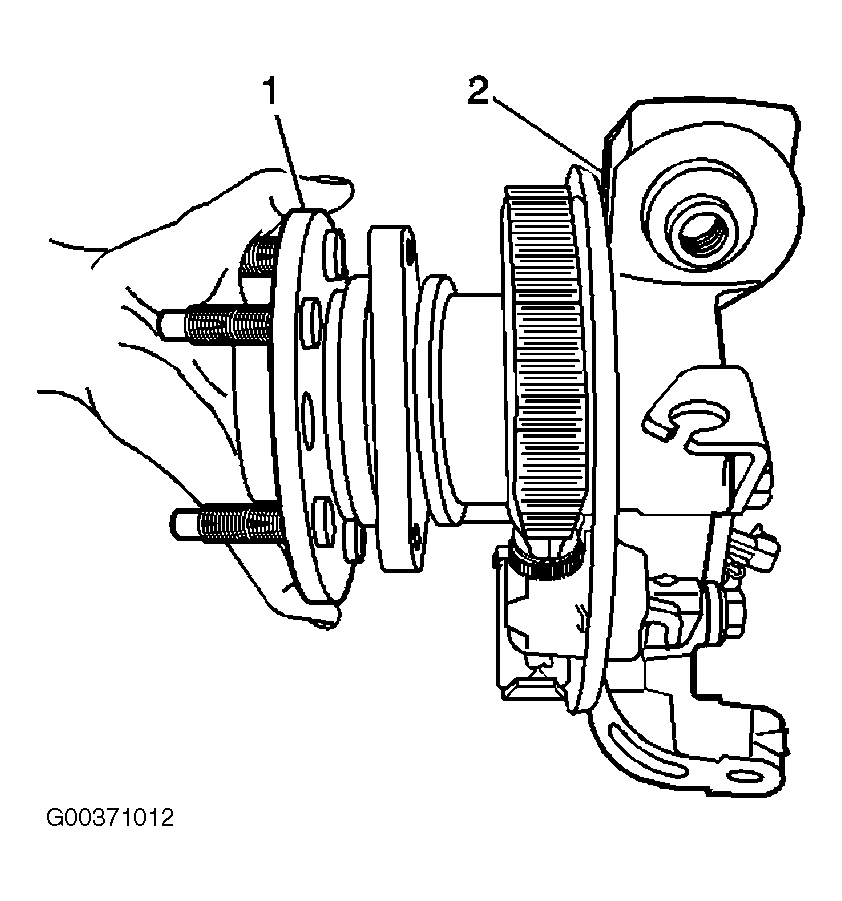

    Fig 1: Installing Wheel Bearing/Hub Onto Knuckle
    G00371012Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts (1) into the wheel bearing/hub assembly. See Figure. Tighten the wheel bearing/hub bolts to 130 N.m (96 lb ft).
  3. If equipped with all-wheel drive (AWD) install the wheel drive shaft nut. Refer to AXLE SHAFT . Tighten the nut to 260 Nm (192 lb ft).
  4. Connect the sensor lead.
  5. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in TIRE AND WHEEL REMOVAL AND INSTALLATION .
  6. Lower the vehicle.
