Tie Rod Replacement: Fwd: Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear axle tie rod to the vehicle.
    NOTE: Refer to FASTENER NOTICE .

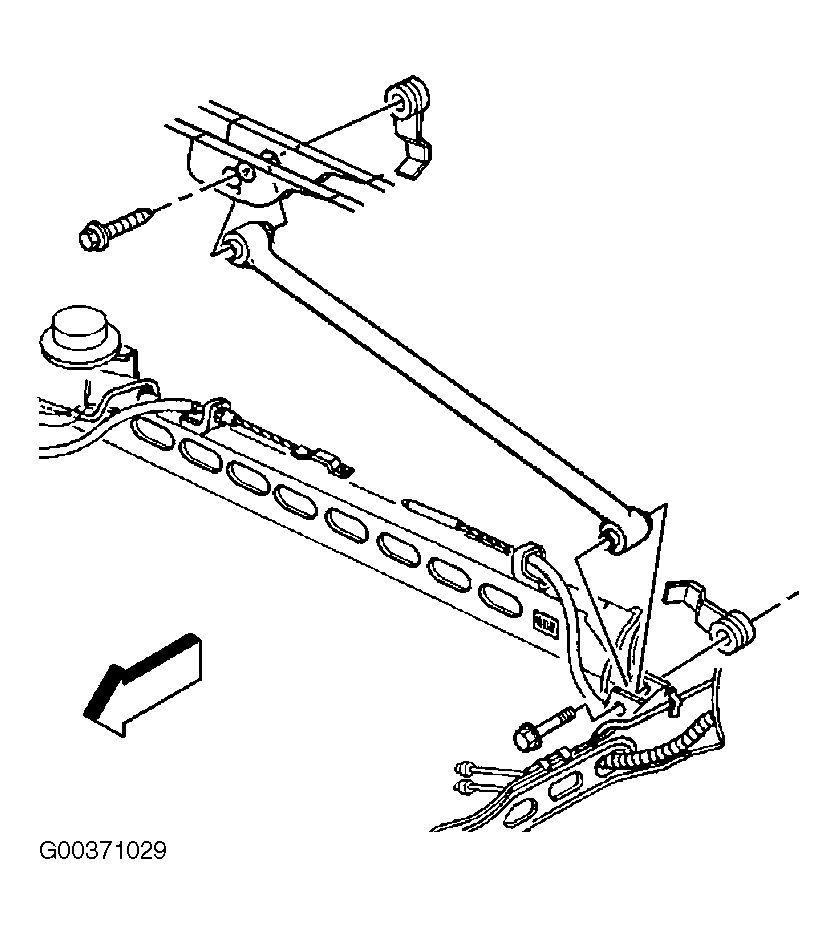

  2. Install the rear axle tie rod bolts and nuts. See Figure. Tighten the rear axle tie rod bolts to 125 N.m (92 lb ft).
    NOTE: When you are servicing the automatic level control sensor link, ensure that the sensor link and the sensor arm are not damaged. Ensure the sensor arm and the sensor link are properly oriented. Improper orientation of the sensor arm and the sensor link may cause damage to the automatic level control system or the vehicle.
  3. If the vehicle is equipped with automatic level control, perform the following steps:
    1. Install the height sensor link to the rear axle tie rod.
    2. Connect the automatic level control sensor electrical connector.
  4. Lower the vehicle.
