Tie Rod Replacement: AWD: Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tie rod bolt.

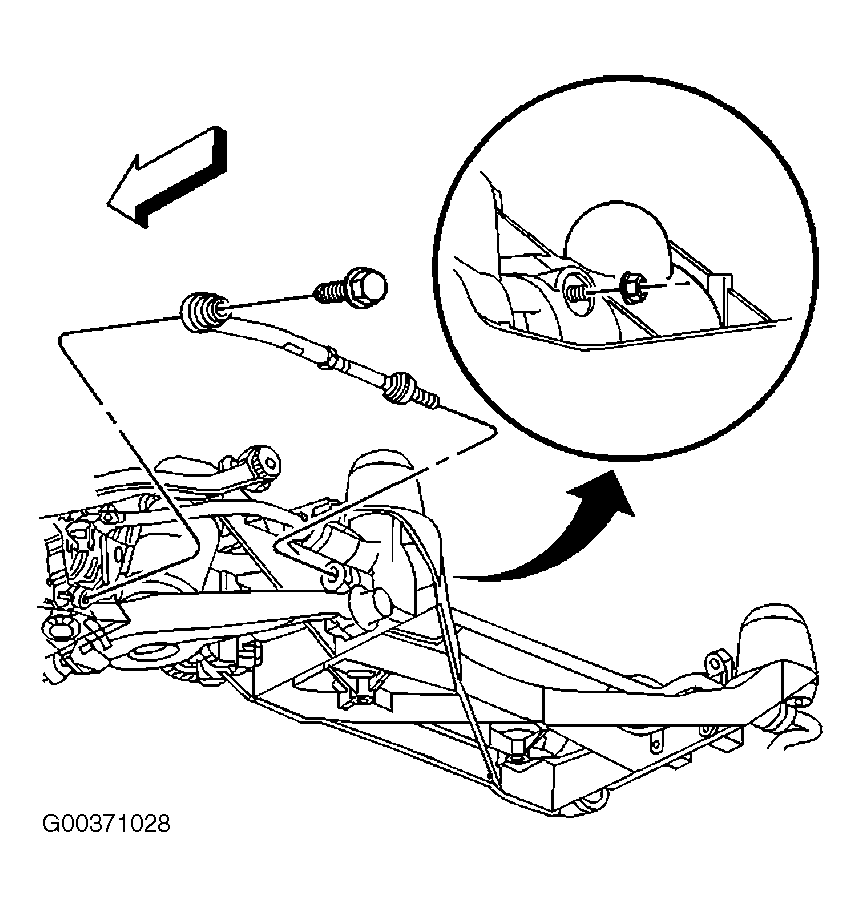

    Fig 1: Removing Tie Rod
    G00371028Courtesy of GENERAL MOTORS CORP.
  3. Remove the tie rod nut.
  4. Remove the tie rod.
