Rear Axle Lower Control Arm Replacement: Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower control arm to the crossmember.
    NOTE: Refer to FASTENER NOTICE .

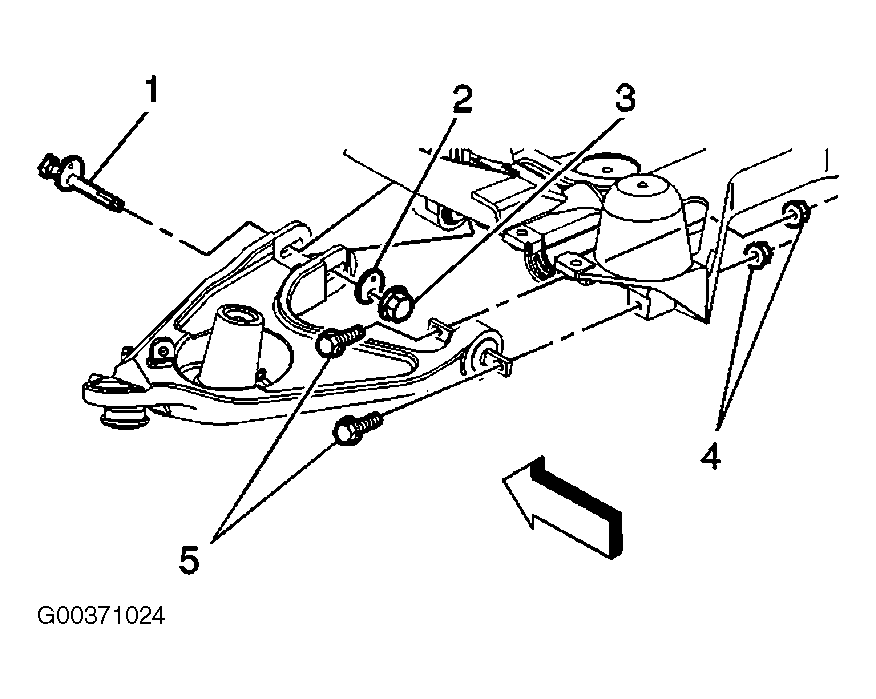

  2. Install the bolts (5) and the nuts (4) to the lower control arm. Tighten the nuts to 50 N.m (37 lb ft). Refer to Figure.
  3. Install the cam bolt (1) and the cam washer (2) to the lower control arm.
    NOTE: Align the cam indicator to the mark on the lower control arm.
  4. Install the cam nut (3) to the lower control arm. Refer to Figure. Tighten the cam nut to 125 N.m (92 lb ft).
  5. Install the spring jounce bumper to the spring.
  6. Index and install the spring insulator to the spring (2). See Figure.
  7. Index and install the spring assembly to the control arms (1). See Figure.
  8. Use the utility stand in order to raise the lower control arm.
  9. Install the lower ball joint to the knuckle.
  10. Install the lower ball joint nut. Tighten the lower ball joint nut to 85 N.m (63 lb ft).
  11. Install the stabilizer shaft link to the lower control arm. Refer to STABILIZER SHAFT LINK REPLACEMENT .
  12. Connect the speed sensor harness to the control arm.
  13. Install the speed sensor connector mounting bracket.
  14. Connect the speed sensor harnesses.
  15. Connect the shock absorber to the lower control arm. Refer to SHOCK ABSORBER REPLACEMENT .
  16. Connect the height sensor link to the lower control arm as necessary.
  17. Install the brake caliper. Refer to the following
  18. Install the rear wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in TIRE AND WHEEL REMOVAL AND INSTALLATION .
  19. Lower the vehicle.
