Rear Axle Lower Control Arm Bushing Replacement: Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower control arm.
NOTE: Identify the orientation of the voids in the bushing to the crossmember.
Remove the bushing from the crossmember.

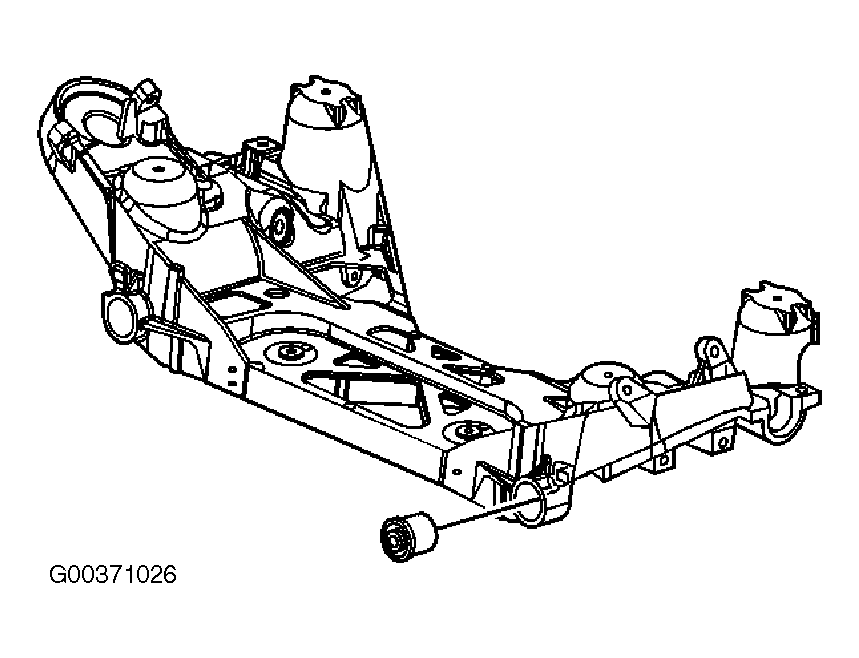

Fig 1: Removing Bushing From Crossmember
Courtesy of GENERAL MOTORS CORP.
In order to remove the bushing from the crossmember, use the following tools from the J-21474-01:
- J-6627-4 (1)
- J-45411 (2)
- J-21474-8 (3)
- J-21474-4 (4)

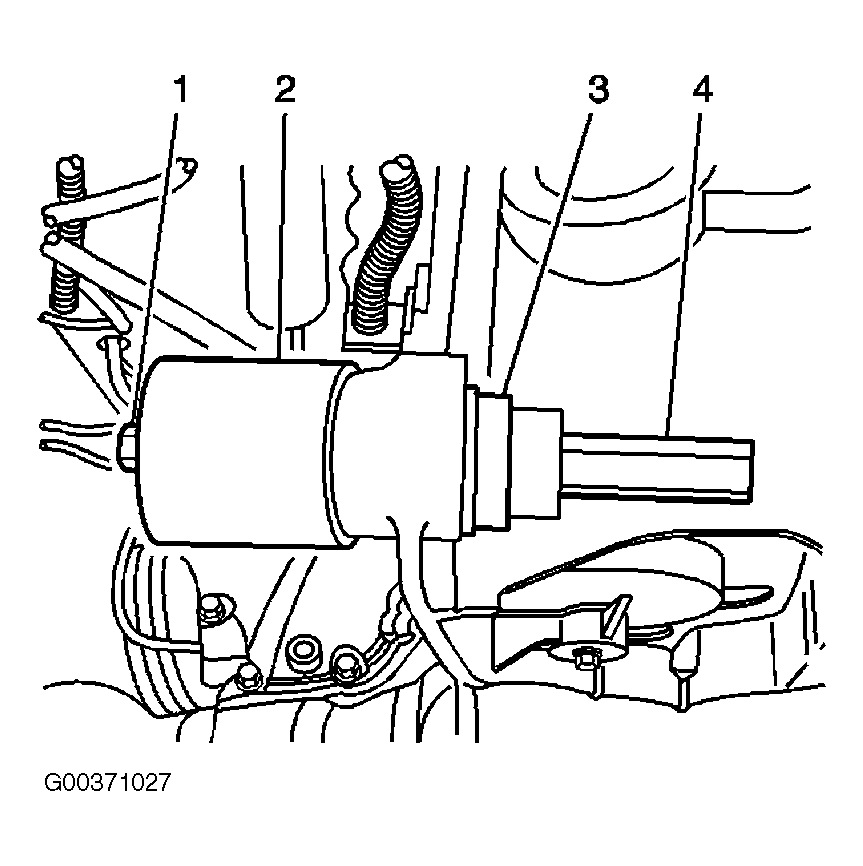

  Fig 2: Identifying J-21474-01 Components To Remove Crossmember Bushing
  Courtesy of GENERAL MOTORS CORP.
