Control Arm Bushing Replacement: Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Align the flat edge of the bushing with the mark on the control arm in order to install the bushing at a 45 degree angle.

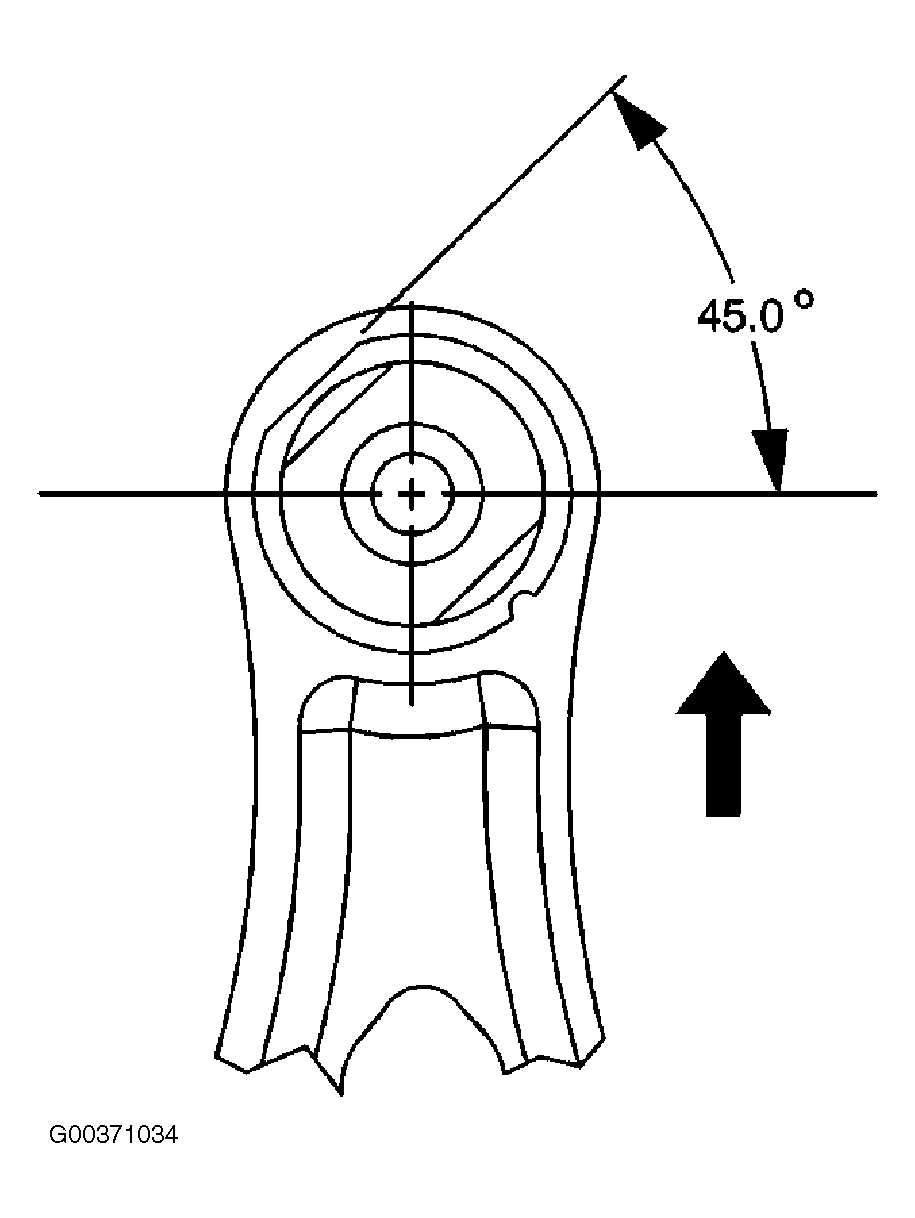

Fig 1: Aligning Bushing At 45 Degree Angle For Installation
Courtesy of GENERAL MOTORS CORP.
Use the J-28685 and the J-9519-E in order to install the control arm bushing.

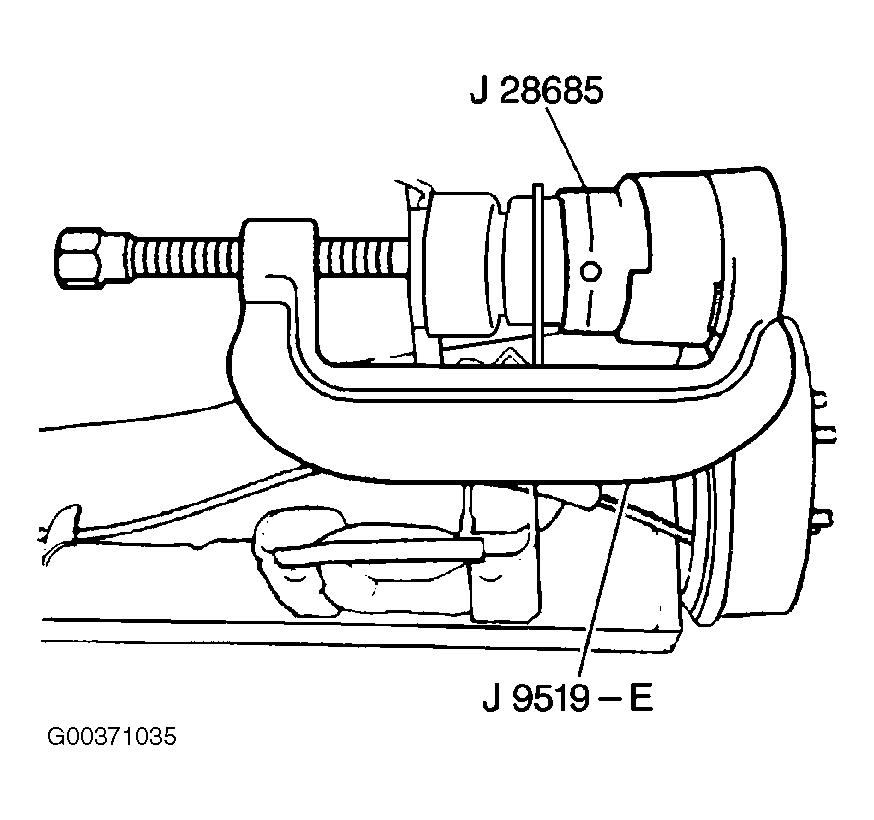

Fig 2: Using J-28685 & J-9519-E To Install Control Arm Bushing
Courtesy of GENERAL MOTORS CORP.

NOTE: The bushing must extend 9.8 mm (0.39 in) from the control arm.
The bushing is installed to the proper depth when the end of the bushing is aligned with the indicator line on the J-28685

Fig 3: Measuring Control Arm Bushing Depth
Courtesy of GENERAL MOTORS CORP.
Use the utility stand in order to raise the rear axle.
Install the control arm bolt to the rear axle. Refer to REAR AXLE REPLACEMENT .
Remove the utility stand.
Lower the vehicle.
