Rear Axle Upper Control Arm Replacement AWD: Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper control arm.

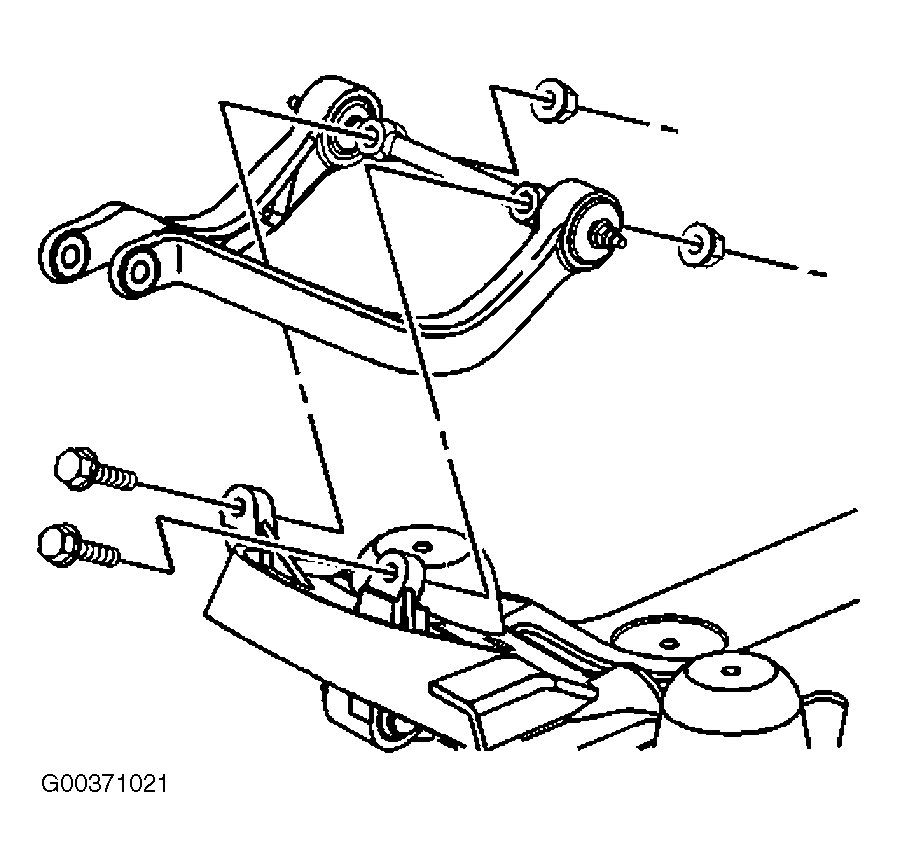

    Fig 1: Installing Upper Control Arm
    G00371021Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts and the nuts which secure the upper control arm to the crossmember. Tighten the nuts to 85 N.m (63 lb ft).
  4. Use 2 utility stands in order to raise the crossmember.
  5. Install the crossmember-to-underbody bolts.
  6. Install the upper control arm to the knuckle. Tighten the nut which secures the upper control arm to 85 N.m (63 lb ft).
  7. Connect the shock absorber to the lower control arm. Refer to SHOCK ABSORBER REPLACEMENT ALL WHEEL DRIVE .
  8. Connect the height sensor link to the lower control arm as necessary.
  9. Connect the park brake cable to the park brake actuator and the park brake cable bracket.
  10. Install the brake caliper. Refer to REAR BRAKE CALIPER .
  11. Install the rear wheel.
  12. Lower the vehicle.
