Rear Axle Lower Control Arm Bushing Replacement Front Bushing - All Wheel Drive: Installation

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Install the new bushing to the crossmember in the same mannerism as the old bushing, noting the voids.
  1. Use the J-21474-01 in order to install the bushing to the crossmember. Refer to Figure.
  2. Install the lower control arm and mounting bolts (1, 5) to the crossmember. Refer to Figure.

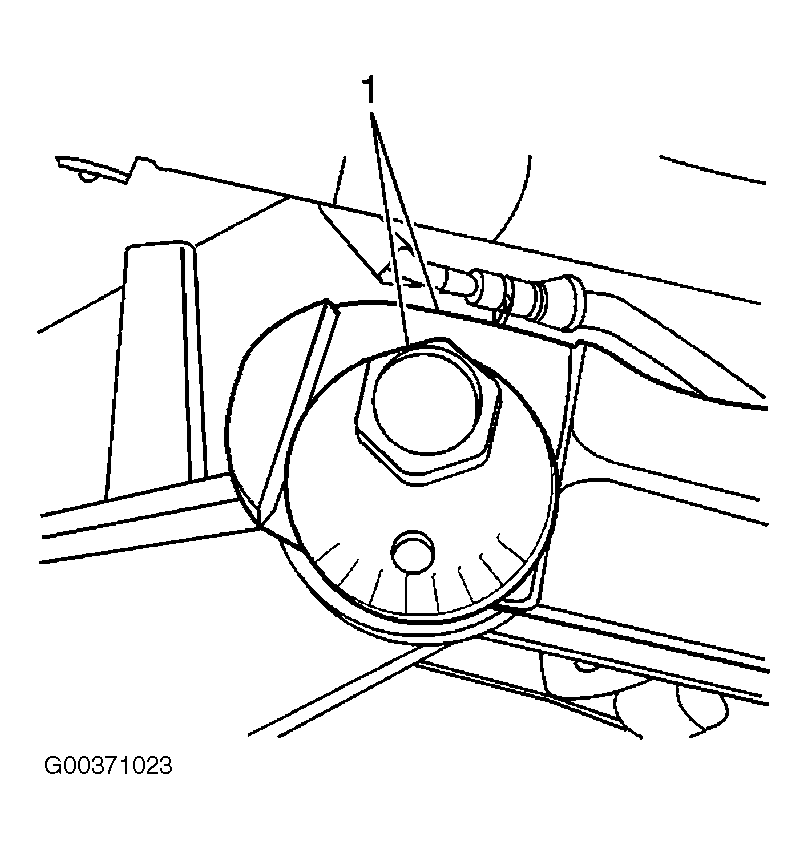

  3. Line up the mark on the lower control arm at the cam indicator (1). Refer to Figure.
  4. Install the coil spring (2). Refer to Figure.
  5. Install the tire and wheel assemblies.
  6. Lower the vehicle.
