D Height Adjustment

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: One complete turn of the adjustment bolt is equal to 2 mm (5/64 in).
  1. Remove the retainers (1) on the top of the spring bolts (2). See Fig 1.
  2. Adjust the D trim height by turning the spring bolt.
  3. Measure the D trim height again.
    NOTE: Do not exceed the maximum difference between the right and left rear spring stud heights.
  4. Measure the rear spring stud heights (1), the maximum difference should be 5 mm (0.196 in). See Fig 2.
  5. Install the retainers to the bolts.
  6. Lower the vehicle.

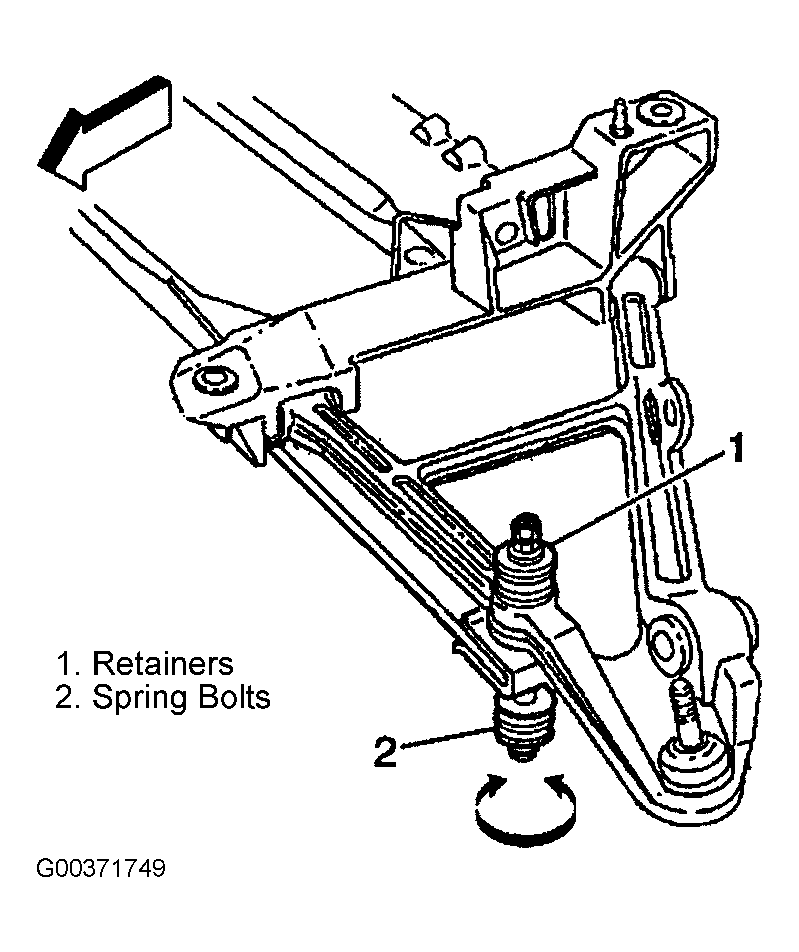

Fig 1: Removing Retainers On Top Of Spring Bolts
G00371749Courtesy of GENERAL MOTORS CORP.
Fig 2: Measuring Rear Spring Stud Heights
G00371750Courtesy of GENERAL MOTORS CORP.
