Removal & Installation: Starter: Removal

WARNING: This page is about a different car, the 2003 Pontiac Montana and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable from the battery. Raise and suitably support the vehicle. Remove radiator air baffle assembly.
  2. Remove the starter motor BAT terminal nut and electrical leads. Remove the starter motor S terminal nut and electrical lead.

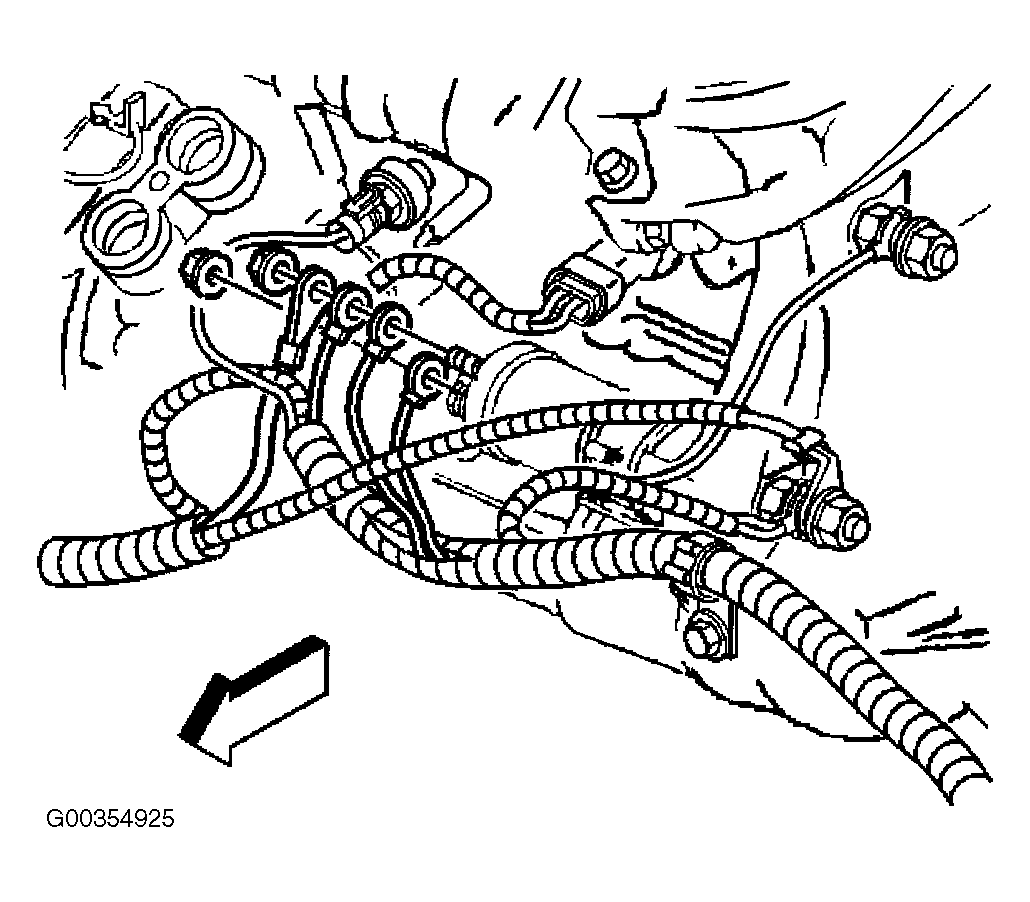

    Fig 1: Identifying Starter Wiring & Connectors
    G00354925Courtesy of GENERAL MOTORS CORP.
  3. Remove the torque converter cover. Remove the starter motor bolts. Remove the starter motor.
