Instrument Panel Fuse Block
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2005 Pontiac Montana, 2005 Chevrolet Venture, 2004 Pontiac Montana, 2004 Oldsmobile Silhouette, and 2004 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

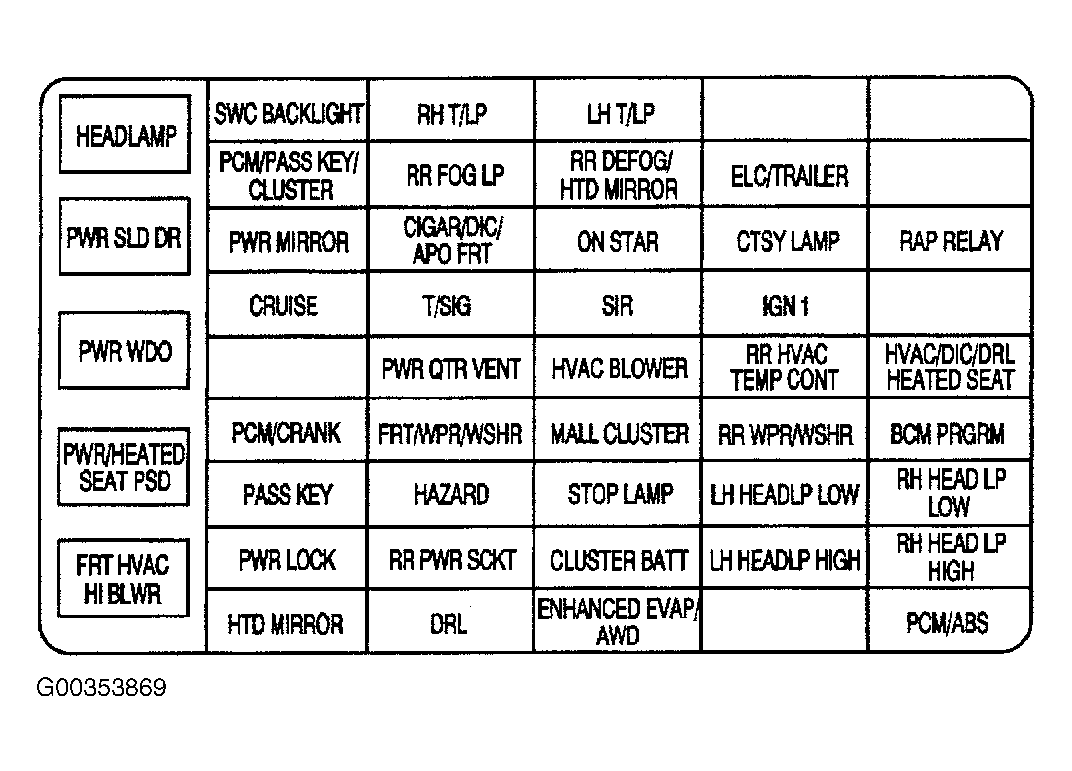

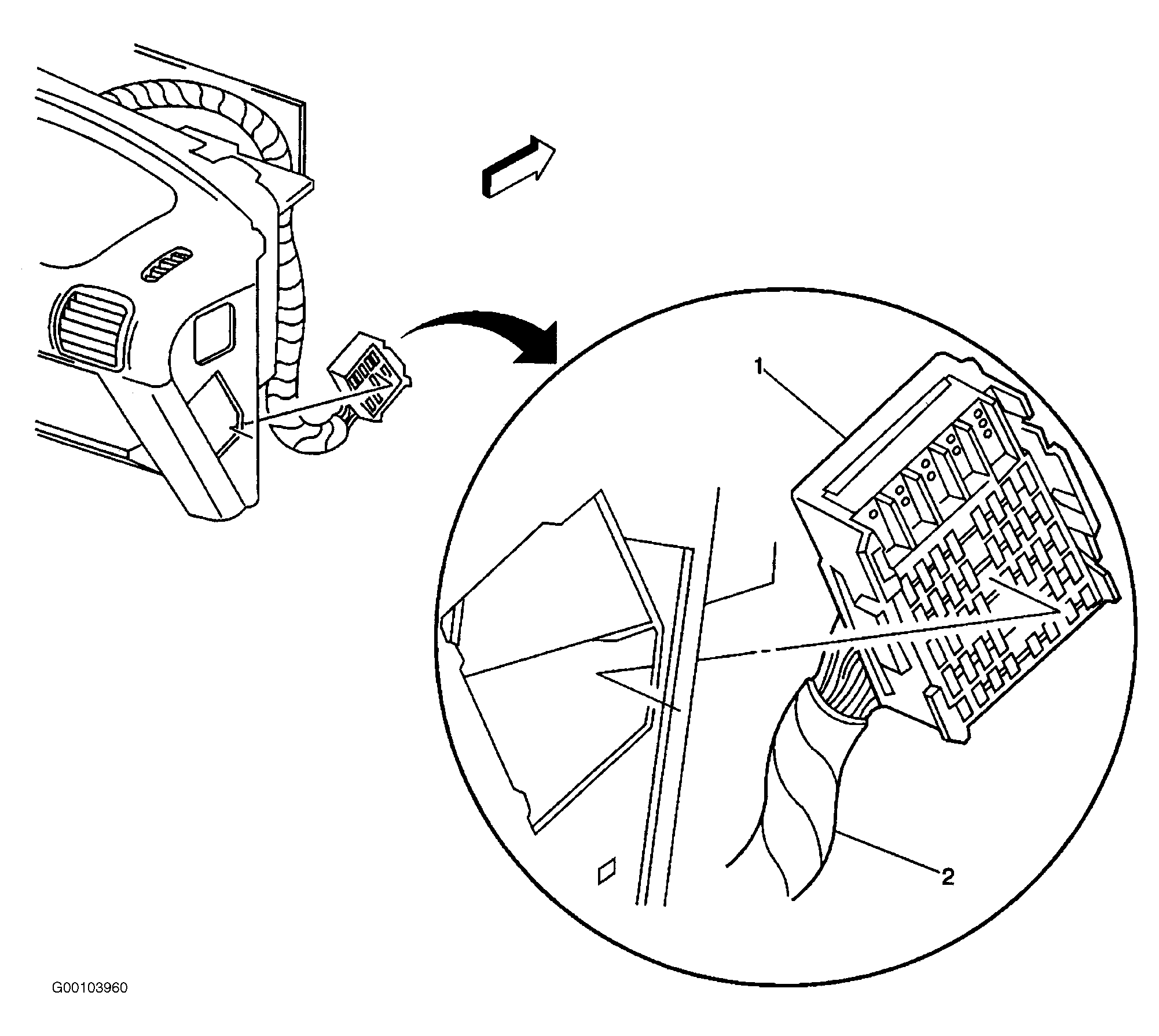

Instrument panel fuse block is located on the passenger's side of the instrument panel. See Fig 1.
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002)
| Circuit Breakers | Usage |
|---|---|
| HEADLAMP | Daytime Running Lamps (DRL) Control Module, Headlamp and Instrument Panel Dimmer Switch |
| PWR SLD DR | Power Sliding Door |
| PWR WDO | Front Power Windows |
| PWR/HEATED SEAT PSD | Six-Way Power Seats and Rear Side Door Actuator Motor |
| FRT HVAC | Blower Motor Hi Speed |
| HI BLWR | Relay Module |
| Fuses | Usage |
| FRT/WPR/WSHR | Windshield Wiper/Washer Motor and Switch |
| HAZARD | Hazard Switch |
| RR PWR SCKT | Rear Electric Accessory Plug Housing |
| DRL | Daytime Running Lamp Control Module |
| LH T/LP | Passenger's Side Taillamp |
| RR DEFOG/ HTD MIRROR | Rear Window Defogger Relay, Heated Mirrors |
| ON STAR | OnStar® |
| SIR | Inflatable Restraint Control Module |
| HVAC BLOWER | Heater-A/C Control |
| MALL | Instrument Cluster, Body Control |
| CLUSTER | Module, Electronic Level Control (ELC) Sensor and Relay |
| STOP LAMP | Stoplamp Switch |
| CLUSTER BATT | Module/Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM) |
| SWC BACKLIGHT | Steering Wheel Radio Control Switches (Illumination) |
| PCM/PASS KEY/CLUSTER | Instrument Cluster to PRNDL Indicators |
| PWR MIRROR | Power Remote Control Mirror Switch |
| CRUISE | Cruise Control Module, Switch and Release Switch |
| Blank | Not Used |
| PCM/CRANK | Powertrain Control Module (PCM), Ignition Crank |
| PASS KEY | PASS-Key® III System |
| PWR LOCK | Power Door Locks |
| HTD MIRROR | Heated Mirrors |
| Fuses | Usage |
| RH T/LP | Driver's Side Taillamp |
| RR FOG LP | Fog Lamps |
| CIGAR/DIC/ APO FRT | Cigarette Lighter, DIC, Front Auxiliary Power Outlets |
| T/SIG | Turn Signal Switch |
| PWR QTR VENT | Interior Lamp and Multifunction Switch (Power Vent Switch) |
| ENHANCED | Evaporative Emissions (EVAP) |
| EVAP/AWD | Canister Vent Solenoid Valve, All-Wheel Drive (AWD) |
| Blank | Not Used |
| ELC/TRAILER | ELC Air Compressor and ELC Relay, Trailer Harness |
| CTSY LAMP | Courtesy Lamp |
| IGN 1 | BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows |
| RR HVAC TEMP CONT | Rear HVAC-A/C Control |
| RR WPR/WSHR | Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch) |
| LH HEADLP LOW | Passenger's Side Low Beam Headlamp |
| LH HEADLP HIGH | Passenger's Side High Beam Headlamp |
| Blank | Not Used |
| Blank | Not Used |
| Blank | Not Used |
| RAP RELAY | Retained Accessory Power (RAP) Relay |
| Blank | Not Used |
| HVAC/DIC/DRL/HEATED SEAT | Air Inlet Actuator, DIC Display, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay |
| BCM PRGRAM | BCM Programming |
| RH HEAD LP LOW | Driver's Side Low Beam Headlamp |
| RH HEAD LP HIGH | Driver's Side High Beam Headlamp |
| PCM/ABS | IGN MAIN Relay and PCM, Electronic Brake Control Module |
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2003-05) (1 Of 3)
| Fuse | Usage |
| SWC BACKLIGHT | Steering Wheel Radio Control Switches (Illumination) |
| PCM/PASS KEY/CLUSTER | Instrument Cluster to PRNDL Indicators |
| PWR MIRROR | Power Remote Control Mirror Switch |
| CRUISE | Cruise Control Module, Switch and Release Switch |
| Blank | Not Used |
| PCM/CRANK | Powertrain Control Module (PCM), Ignition Crank |
| PASSKEY | PASS-Key® III System |
| PWR LOCK | Power Door Locks |
| HTD MIRROR | Heated Mirrors |
| RH T/LP | Not Used |
| RR FOG LP | Not Used |
| CIGAR/DIC/APO FRT | Cigarette Lighter, DIC, Front Auxiliary Power Outlets, Data Link |
| T/SIG | Turn Signal Switch |
| PWR QTR VENT | Interior Lamp and Multifunction Switch (Power Vent Switch), Auto Level |
| FRT/WPR/WSHR | Windshield Wiper/Washer Motor and Switch |
| HAZARD | Hazard Switch |
| RR PWR SCKT | Rear Electric Accessory Plug Housing |
| DRL | Daytime Running Lamp Control Module |
| LHT/LP | Not Used |
| RR DEFOG/HTD MIRROR | Rear Window Defogger Relay, Heated Mirrors |
| ON STAR | OnStar® |
| SIR | Inflatable Restraint Control Module |
| HVAC BLOWER | Heater-A/C Control |
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2003-05) (2 Of 3)
| Fuse | Usage |
|---|---|
| MALL CLUSTER | Instrument Cluster, Body Control Module, Electronic Level Control (ELC) Sensor and Relay, Theft, Door Ajar |
| STOP LAMP | Stoplamp Switch |
| CLUSTER BATT | Module/Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM) |
| ENHANCED EVAP/AWD | Evaporative Emissions (EVAP) Canister Vent Solenoid Valve, All-Wheel Drive (AWD) |
| Blank | Not Used |
| ELC/TRAILER | ELC Air Compressor and ELC Height Sensor, Trailer Harness |
| CTSY LAMP | Courtesy Lamp |
| IGN 1 | BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows, Rear Parking Aid |
| RR HVAC TEMP CONT | Rear HVAC-A/C Control |
| RR WPR/WSHR | Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch) |
| LH HEADLP LOW | Not Used |
| LH HEADLP HIGH | Not Used |
| Blank | Not Used |
| Blank | Not Used |
| Blank | Not Used |
| RAP RELAY | Retained Accessory Power (RAP) Relay |
| Blanks | Not Used |
| HVAC/DIC/DRL/HEATED SEAT | Air Inlet Actuator, DIC Display, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay |
| BCM PRGRAM | BCM Programming |
| RH HEAD LP LOW | Not Used |
| RH HEAD LP HIGH | Not Used |
| PCM/ABS | IGN MAIN Relay and PCM, Electronic Brake Control Module |
INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2003-05) (3 Of 3)
| Circuit Breaker | Usage |
|---|---|
| HEADLAMP | Daytime Running Lamps (DRL) Control Module, Headlamp and Instrument Panel Dimmer Switch |
| PWR SLD DR | Power Sliding Door |
| PWR WDO | Front Power Windows |
| PWR/HEATED SEAT PSD | Six-Way Power Seats and Rear Side Door Actuator Motor |
| FRT HVAC HI BLWR | Blower Motor Hi Speed Relay Module |
