Rear Brake Caliper: Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the caliper over the rotor and the caliper bracket. Ensure that the bushings are in place.
  2. Lubricate the caliper bolts. See Fig 1 . Use silicone grease. DO NOT lubricate the threads.
  3. Lubricate the 2 bolt boots in the caliper bracket. Use silicone grease.
  4. Install the caliper bolts. Ensure that the bolt boots fit securely in the groove of the caliper bolts. Be sure not to pinch or tear the boots. If the boots are damaged, they must be replaced. Tighten the brake caliper bolts to specification. See TORQUE SPECIFICATIONS  .
    NOTE: Install NEW copper gaskets.
  5. Assemble the brake hose bolt and the NEW copper brake hose gaskets to the brake hose.
  6. Install the brake hose-to-caliper bolt to the brake caliper. Tighten the bolt to specification. See TORQUE SPECIFICATIONS  .
  7. Remove the 2 wheel lug nuts retaining the rotor to the hub.
  8. Install the rear tire and the wheel assembly. Tighten wheel lug nuts to specification. See TORQUE SPECIFICATIONS  .
  9. Lower the vehicle.
  10. Fill the master cylinder to the proper level with clean brake fluid. See MASTER CYLINDER RESERVOIR FILLING  under BLEEDING BRAKE SYSTEM.
  11. Bleed the brake system. See BLEEDING BRAKE SYSTEM  .
  12. Inspect the hydraulic brake system for brake fluid leaks.

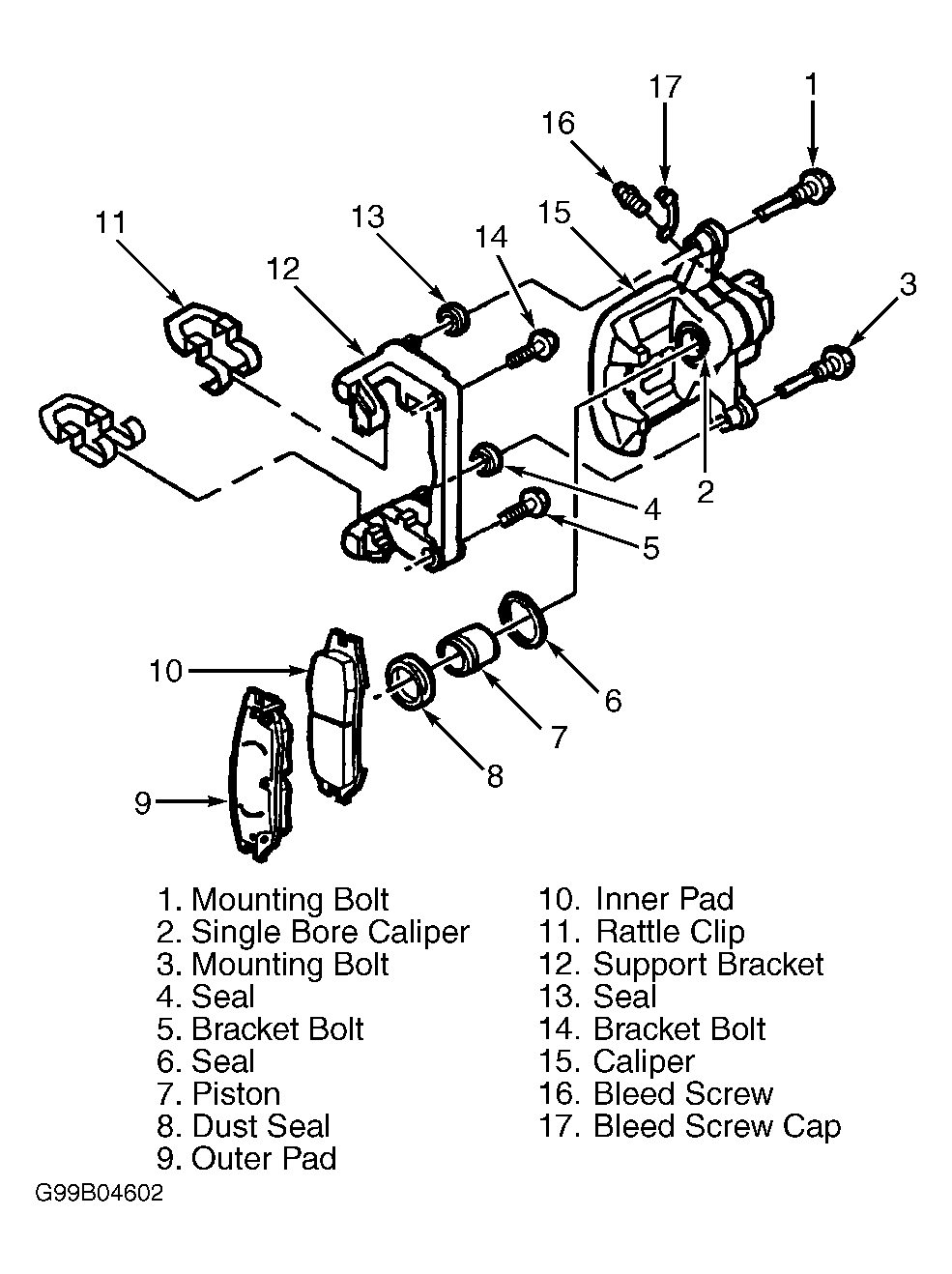

Fig 1: Exploded View Of Rear Brake Caliper
G99B04602Courtesy of GENERAL MOTORS CORP.
