Torque Tube Mounting Bracket: Installation
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
DO NOT fully tighten the torque tube-to-bracket through-bolt. Hand tighten only until the bracket is secured to the vehicle body.

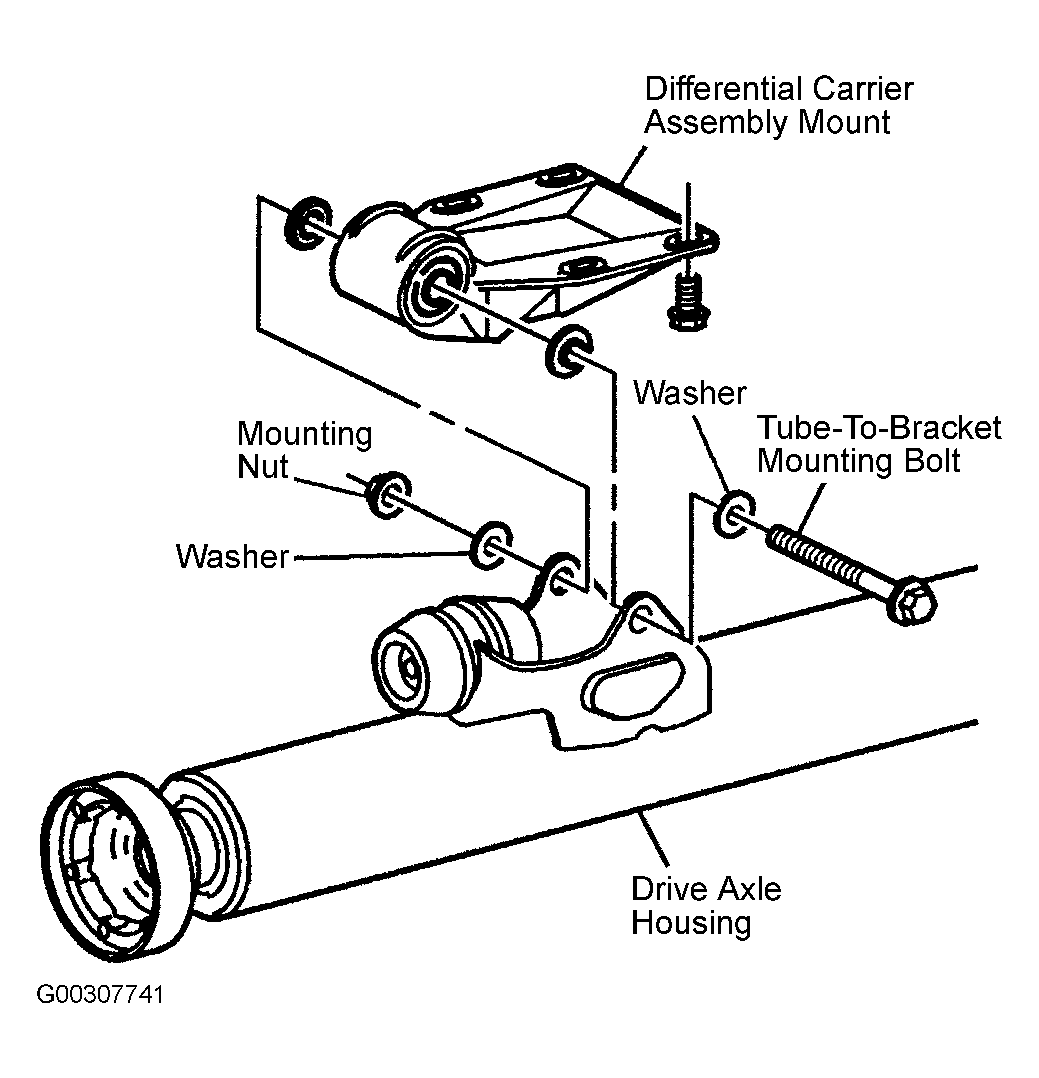

- Install the torque tube-to-bracket through-bolt, nut, washers and spacers. See Figure . Raise the jack stand in order to install the torque tube mounting bracket to the vehicle body.
- Install the torque tube bracket-to-body bolts. Tighten the torque tube bracket-to-body bolts to specification. See TORQUE SPECIFICATIONS . Tighten the torque tube-to-bracket through-bolt to specification. See TORQUE SPECIFICATIONS . Remove the jack stand. Lower the vehicle.
