Disabling System
WARNING: This page does not describe the selected car, but rather 63 other vehicles, including the 2004 Suzuki Swift +, 2004 Pontiac Vibe, 2004 Pontiac Sunfire, 2004 Pontiac Montana, and 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Turn front wheels to straight-ahead position. Turn ignition switch to OFF position. Remove key from ignition switch.
- Remove AIR BAG fuse from junction block/fuse panel at far left end of instrument panel. See Fig 1
. Wait one minute.

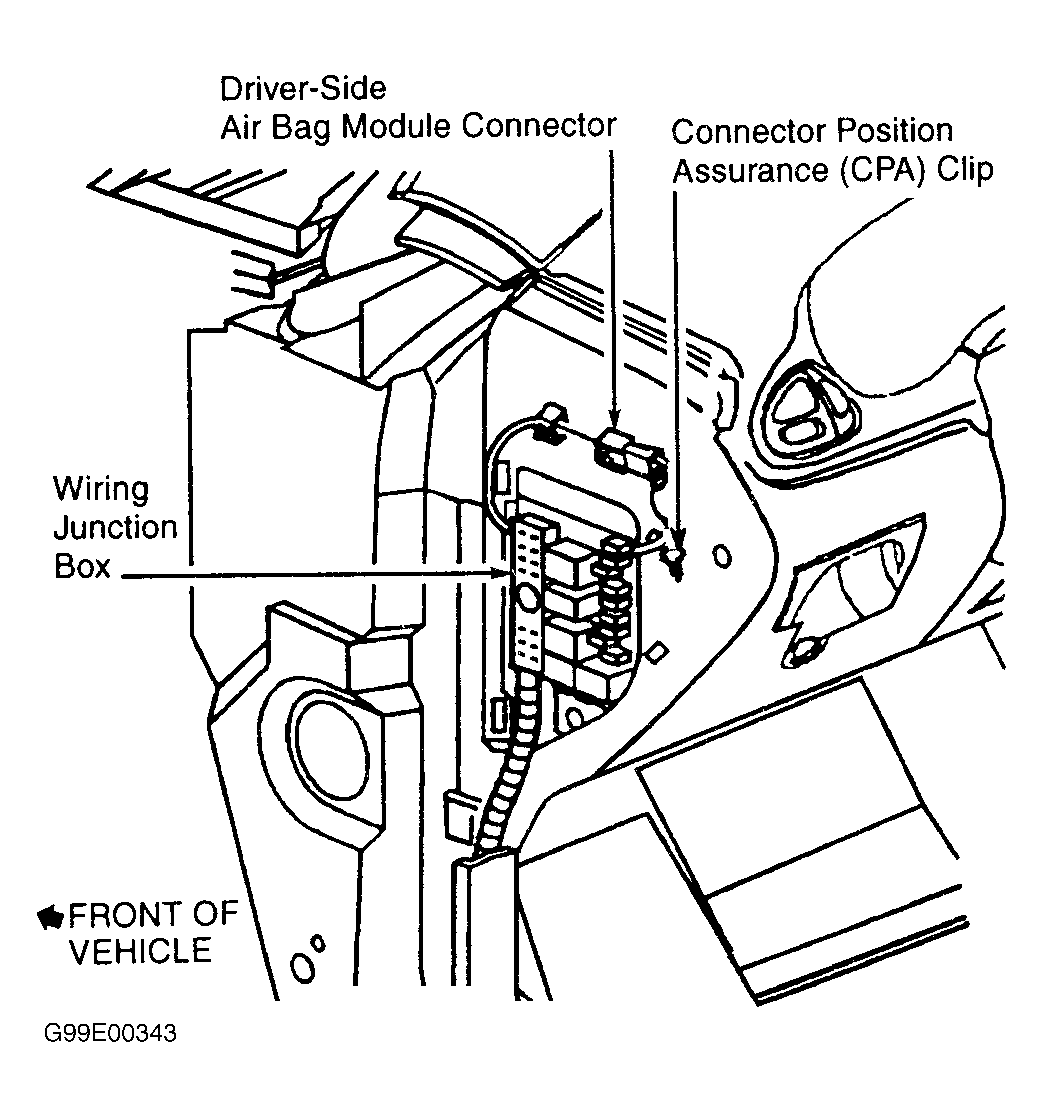

- Zone 3 - To disable driver side air bag module and coil located in SIR Zone 3, remove Connector Position Assurance (CPA) clip. See Figure . Disconnect driver 2-pin Yellow SIR connector located above fuse block. See Fig 1 .

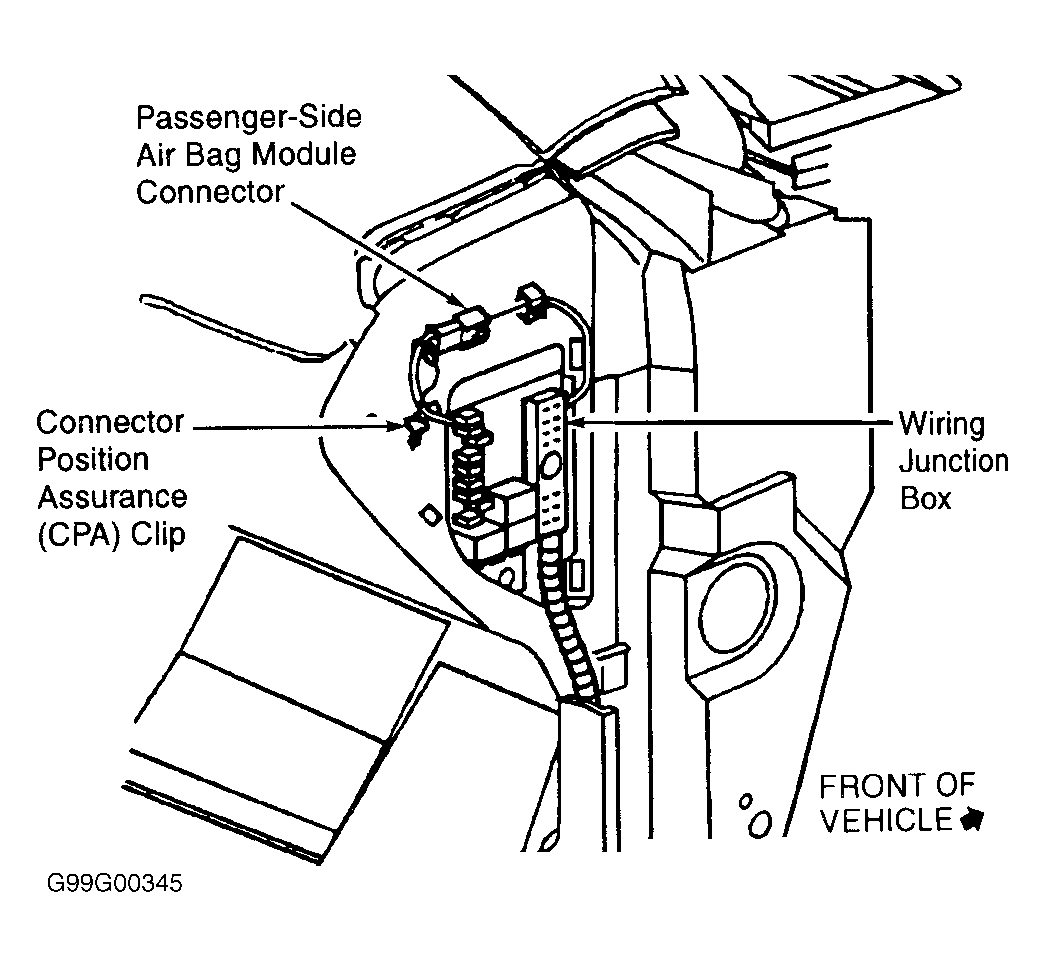

- Zone 5 - To disable passenger side air bag module located in SIR Zone 5, remove access panel from junction block/fuse panel at far right end of instrument panel. See Figure . Remove passenger air bag CPA clip and disconnect 2-pin Yellow SIR connector located above fuse block. See Fig 2 .
- Zone 9 - To disable inflatable restraint Sensing and Diagnostic Module (SDM) located in SIR Zone 9, remove CPA clip. See Figure . Disconnect driver side 2-pin Yellow SIR connector located above fuse block. See Fig 1 and Fig 2 . Remove passenger air bag CPA clip and disconnect 2-pin Yellow SIR connector located above fuse block.
