Wheel Stud: Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Tools Required: Ball Joint Remover (J-35917).
  1. Raise and support the vehicle.
  2. Remove the tire and wheel.
  3. Remove the brake rotor. See BRAKE ROTORS .
  4. Using J-35917 press the wheel stud from the wheel bearing/hub assembly. See Fig 1.

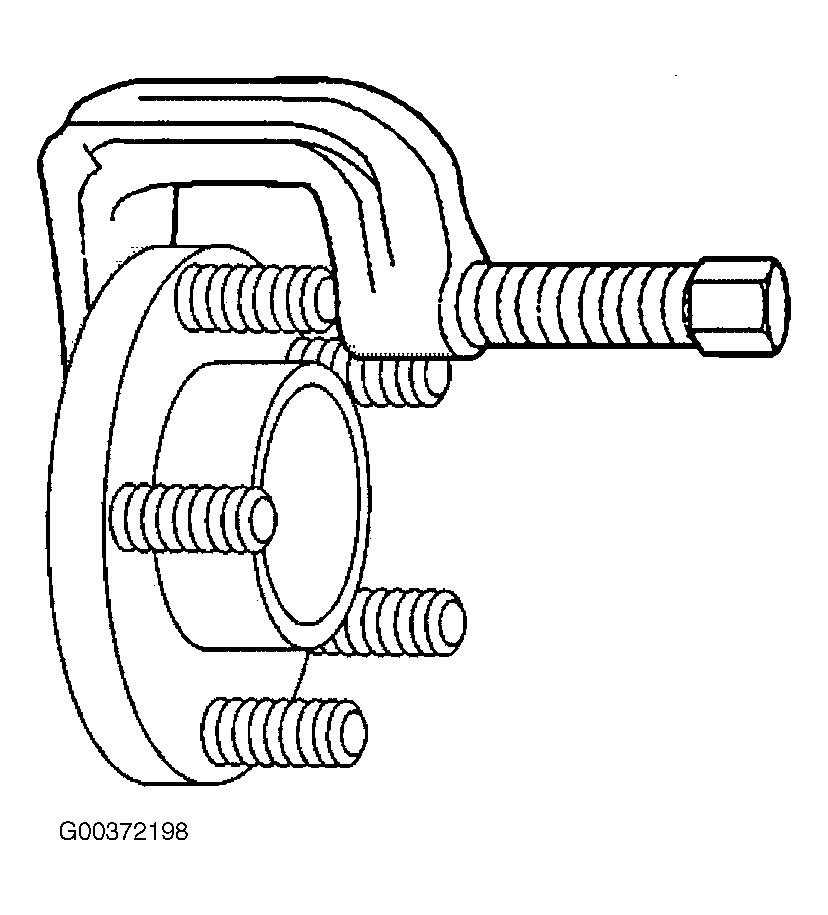

Fig 1: Removing Wheel Stud
G00372198Courtesy of GENERAL MOTORS CORP.
