Body Mount (Rear): Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

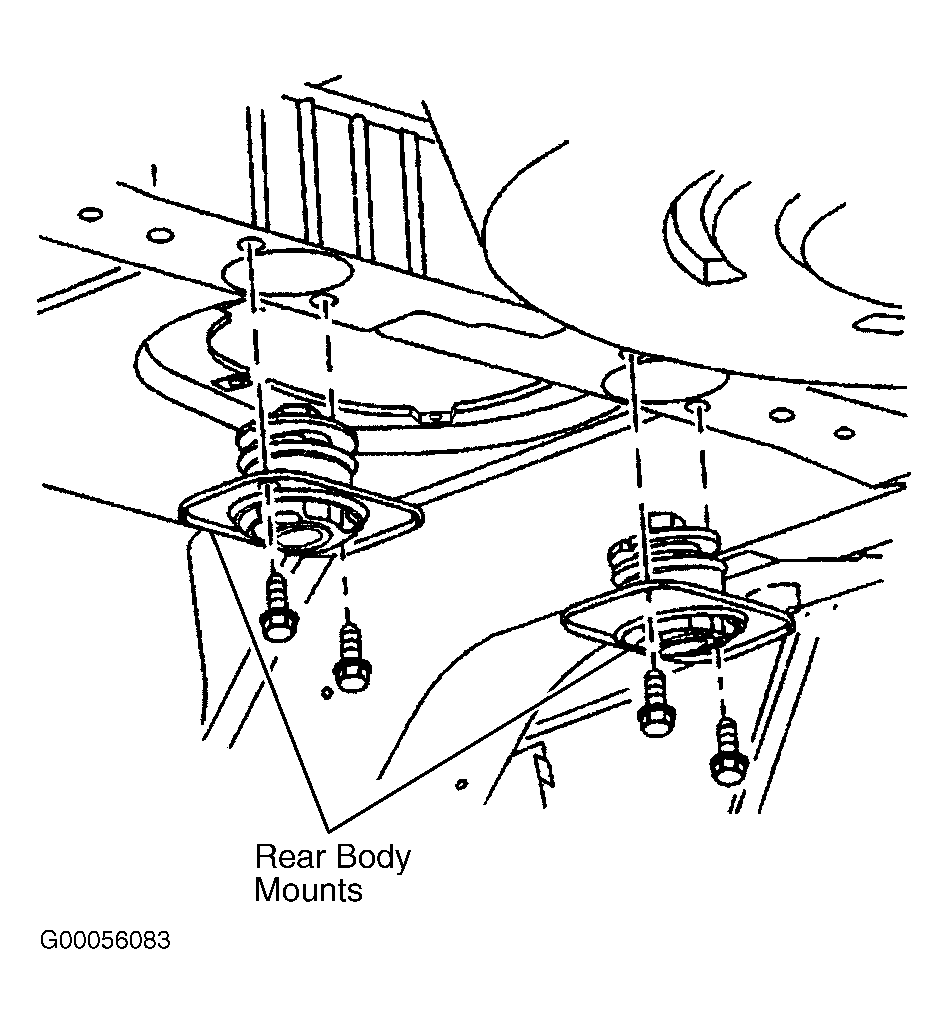

- Install the rear body mount and the bolts ensuring that OUT is toward the outboard of the vehicle. See Figure. Tighten the rear body mount bolts to 38 Ft. Lbs. (51 N.m).
- Raise the rear support.
- Install the bolts that secure the support assembly to the body of the vehicle. Tighten the rear support bolts to 141 Ft. Lbs. (191 N.m).
- Install the rear exhaust hangers.
- Install the tires and the wheels.
- Lower the vehicle.
