Removal & Installation (Passenger-side)
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 5 under DISABLING & ACTIVATING AIR BAG SYSTEM.

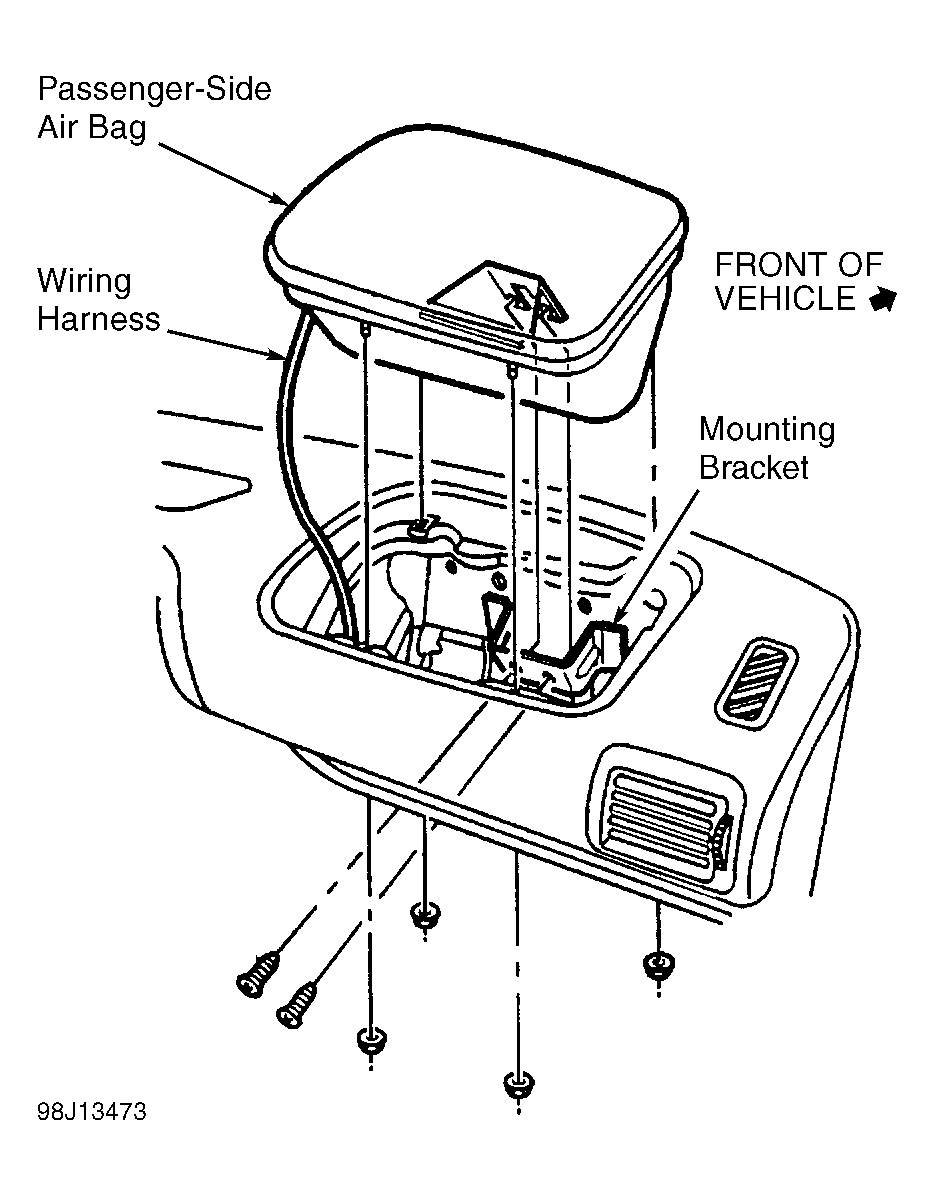

- Remove glove box. Disconnect glove box light electrical connector. Disconnect passenger-side air bag module harness clips from instrument panel carrier bracket. Remove passenger-side air bag module mounting nuts. See Figure. Remove passenger-side air bag module.
- To install, reverse removal procedure. Tighten air bag module mounting nuts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ZONE 5 under DISABLING & ACTIVATING AIR BAG SYSTEM.
