Zone 2

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.
  2. Remove fuse block cover. Remove SDM fuse (15-amp) from fuse block, located on right side of instrument panel.
  3. Remove Connector Position Assurance (CPA) clips from left and right Electronic Frontal Sensors (EFS) electrical connectors. See Fig 1. Disconnect both electrical connectors.

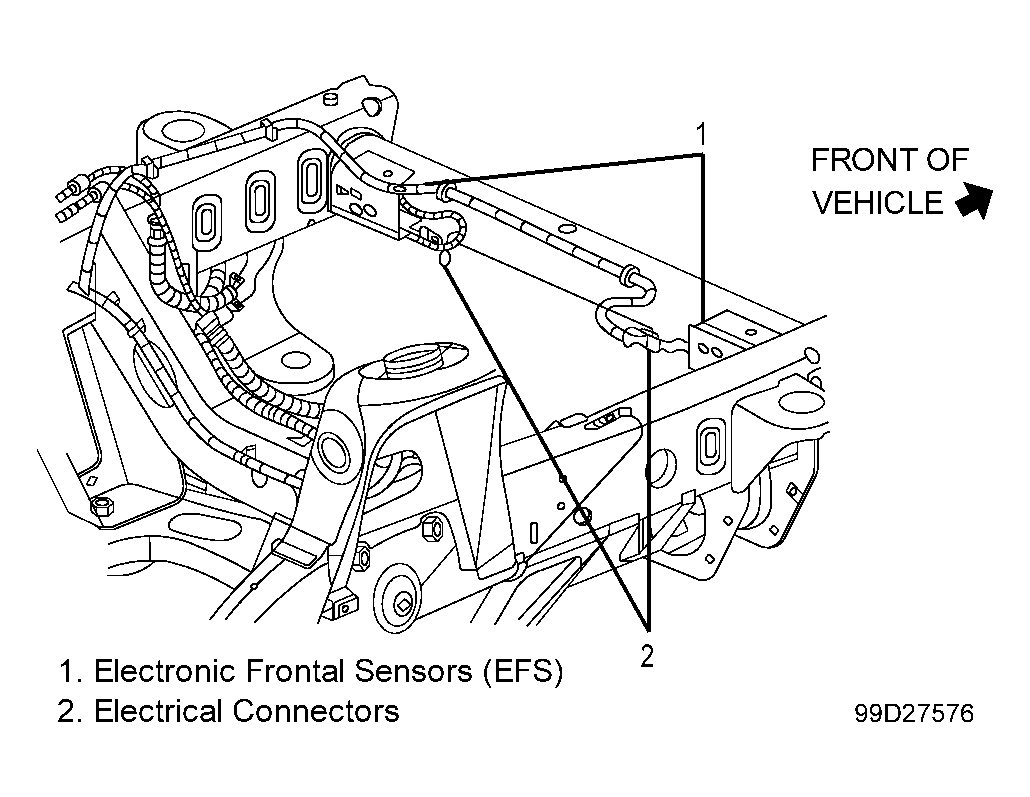

Fig 1: Identifying Electronic Frontal Sensors (EFS)
G99D27576Courtesy of GENERAL MOTORS CORP.
