Removal & Installation (Passenger-side)

WARNING: This page is about a different car, the 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 5  under DISABLING & ACTIVATING AIR BAG SYSTEM.

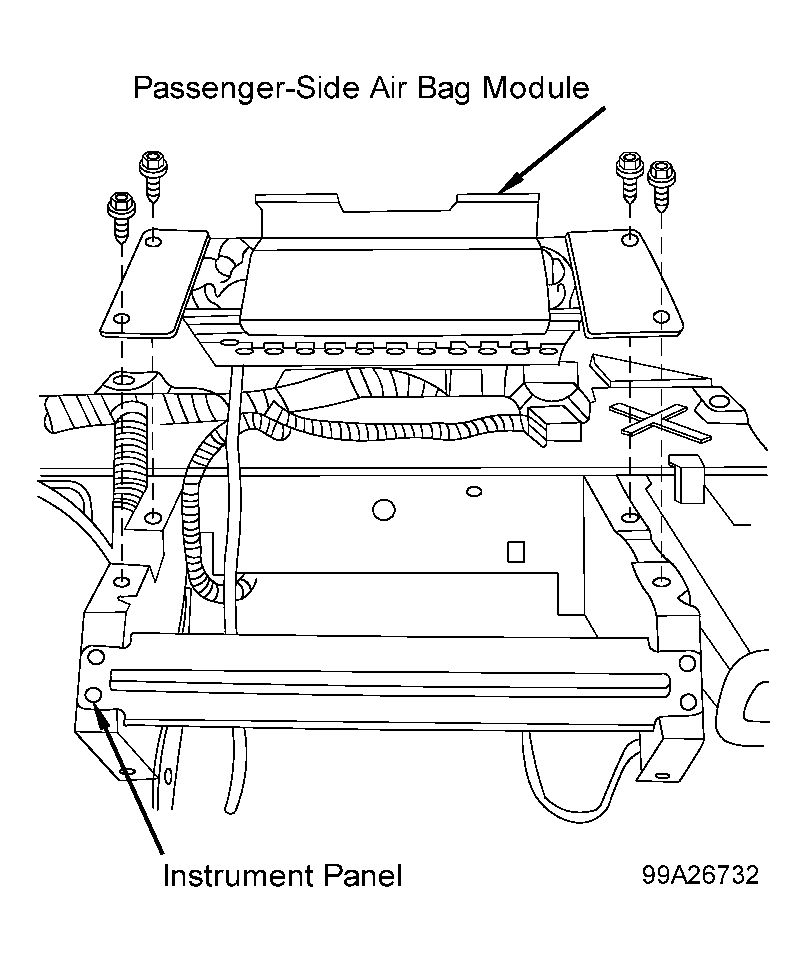

  2. Remove instrument panel trim pad. See INSTRUMENT PANEL TRIM PAD . Remove Connector Position Assurance (CPA) clip from passenger-side air bag module connector and disconnect connector. Remove passenger-side air bag module mounting bolts. See Figure. Remove passenger-side air bag module.
  3. To install, reverse removal procedure. Tighten passenger-side air bag module bolts and instrument panel trim pad screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See ZONE 5  under DISABLING & ACTIVATING AIR BAG SYSTEM.
