Removal (Right)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect both the battery negative cable from the batteries. Raise the vehicle. Remove the starter mounting bolts. The wiring can remain on the starter. Secure the starter out of the way. Position a suitable pole jack on the right rear corner of the engine block just above starter opening.
  2. Remove the engine mount through-bolt and the nut. See Fig 1. Raise the engine only enough to permit removal of the engine mount. Remove the bolts retaining the engine mount bracket to the engine block. Remove the engine mount bracket.
  3. Remove the bolts retaining engine mount to the engine mount frame bracket. See Fig 2. Remove the engine mount.

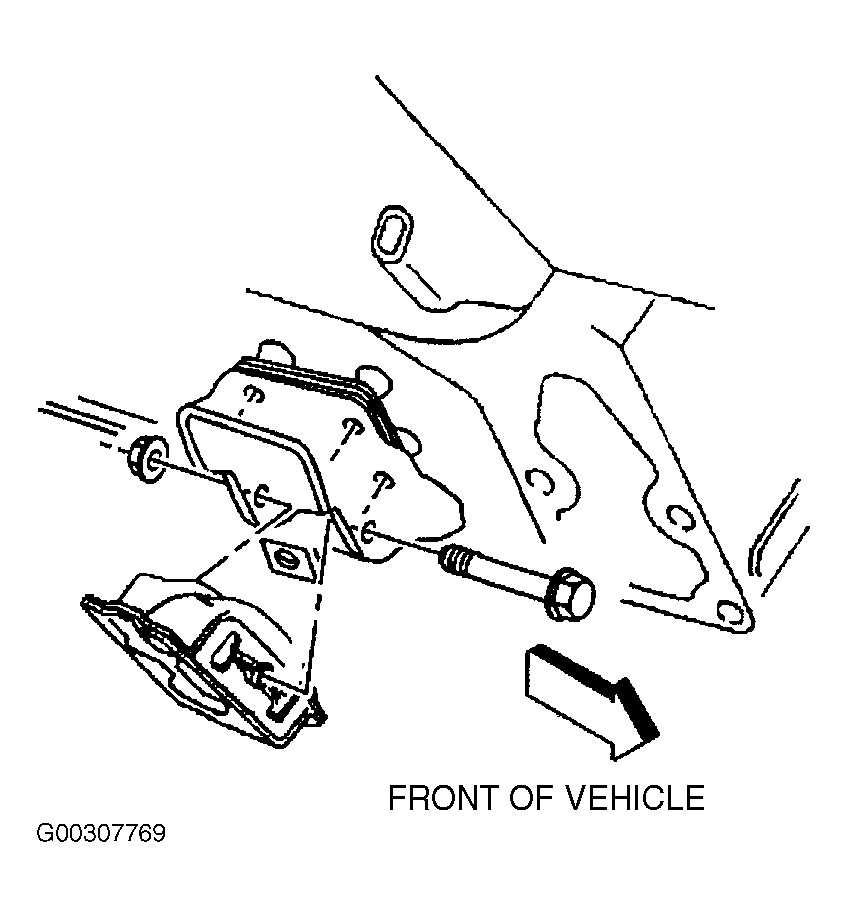

Fig 1: Identifying Right Engine Mount Through Bolt
G00307769Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Right Engine Mount-To-Engine Mount Frame Bracket
G00307770Courtesy of GENERAL MOTORS CORP.
