WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

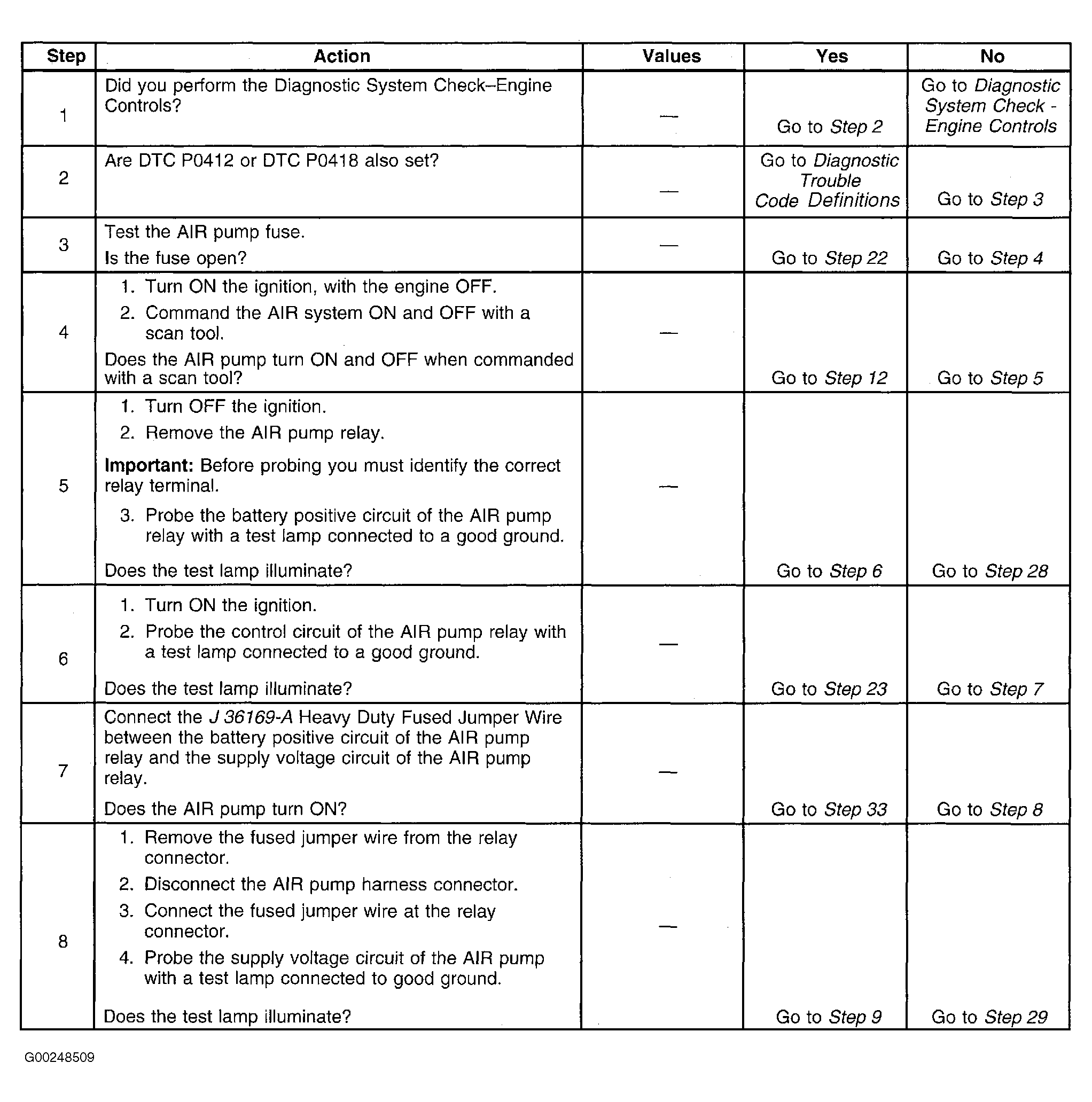

Fig 1: DTC P0410: Secondary Air Injection System (Steps 1-8)
Courtesy of GENERAL MOTORS CORP.

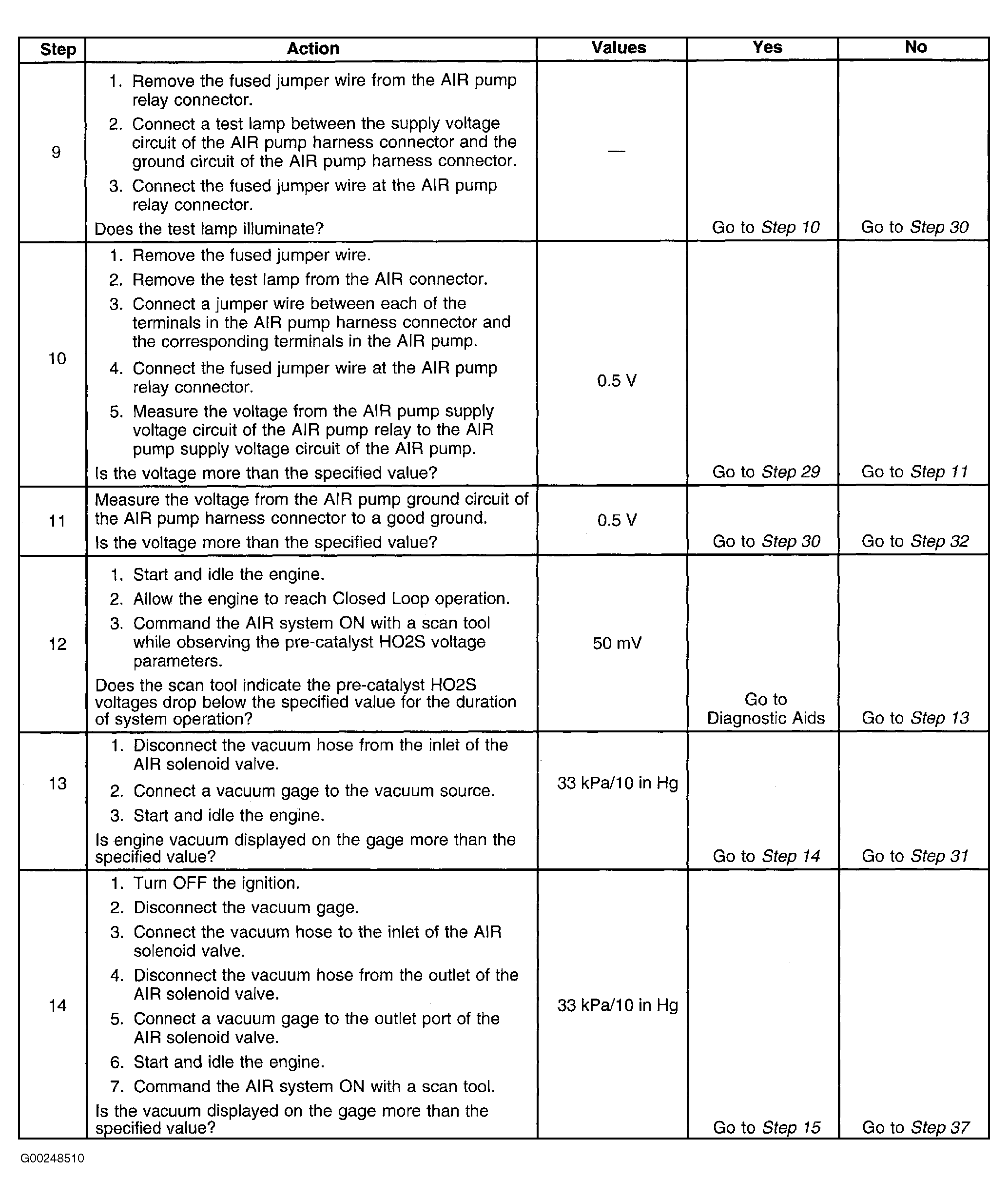

Fig 2: DTC P0410: Secondary Air Injection System (Steps 9-14)
Courtesy of GENERAL MOTORS CORP.

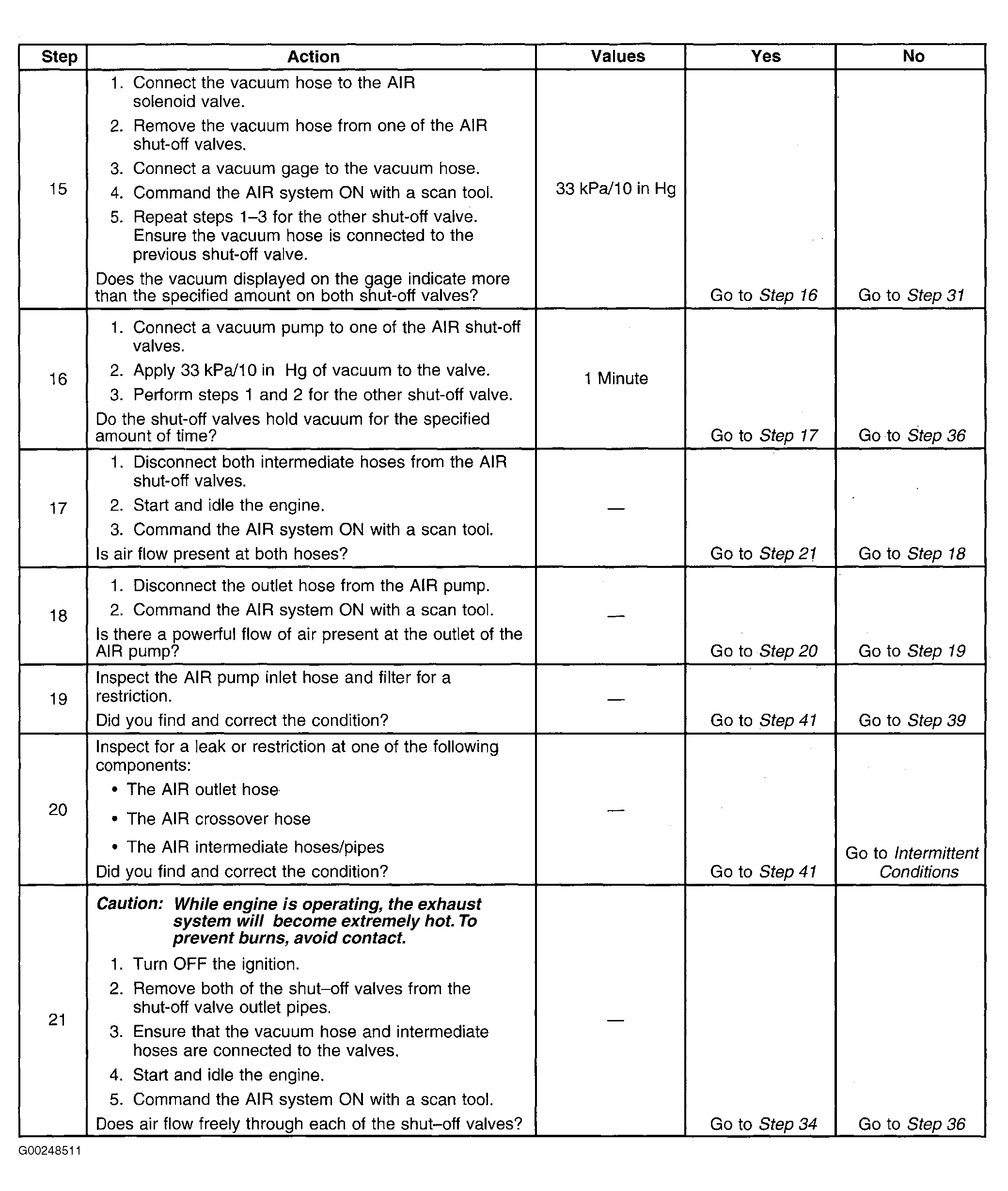

Fig 3: DTC P0410: Secondary Air Injection System (Steps 15-21)
Courtesy of GENERAL MOTORS CORP.

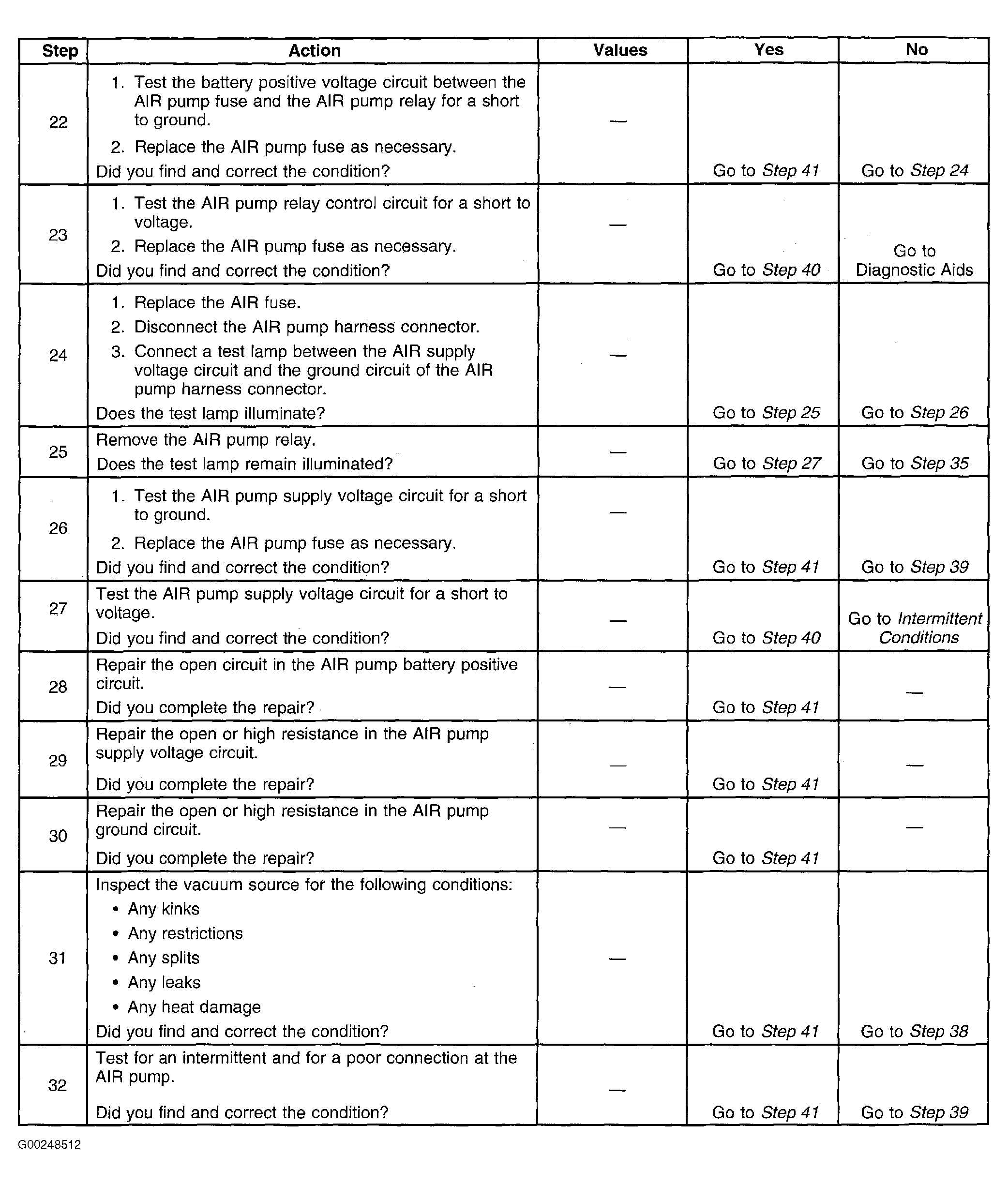

Fig 4: DTC P0410: Secondary Air Injection System (Steps 22-32)
Courtesy of GENERAL MOTORS CORP.

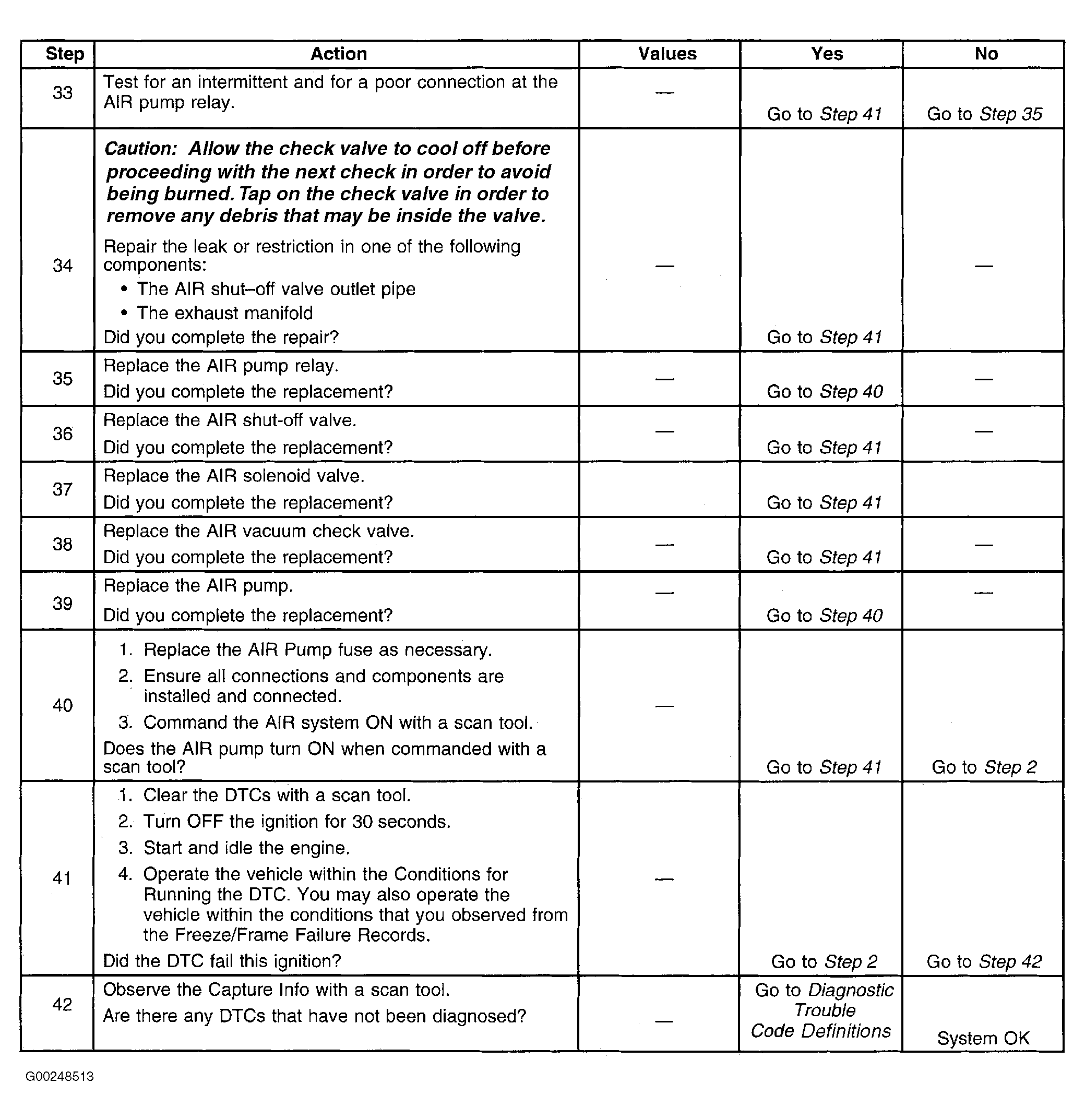

Fig 5: DTC P0410: Secondary Air Injection System (Steps 33-42)
