Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

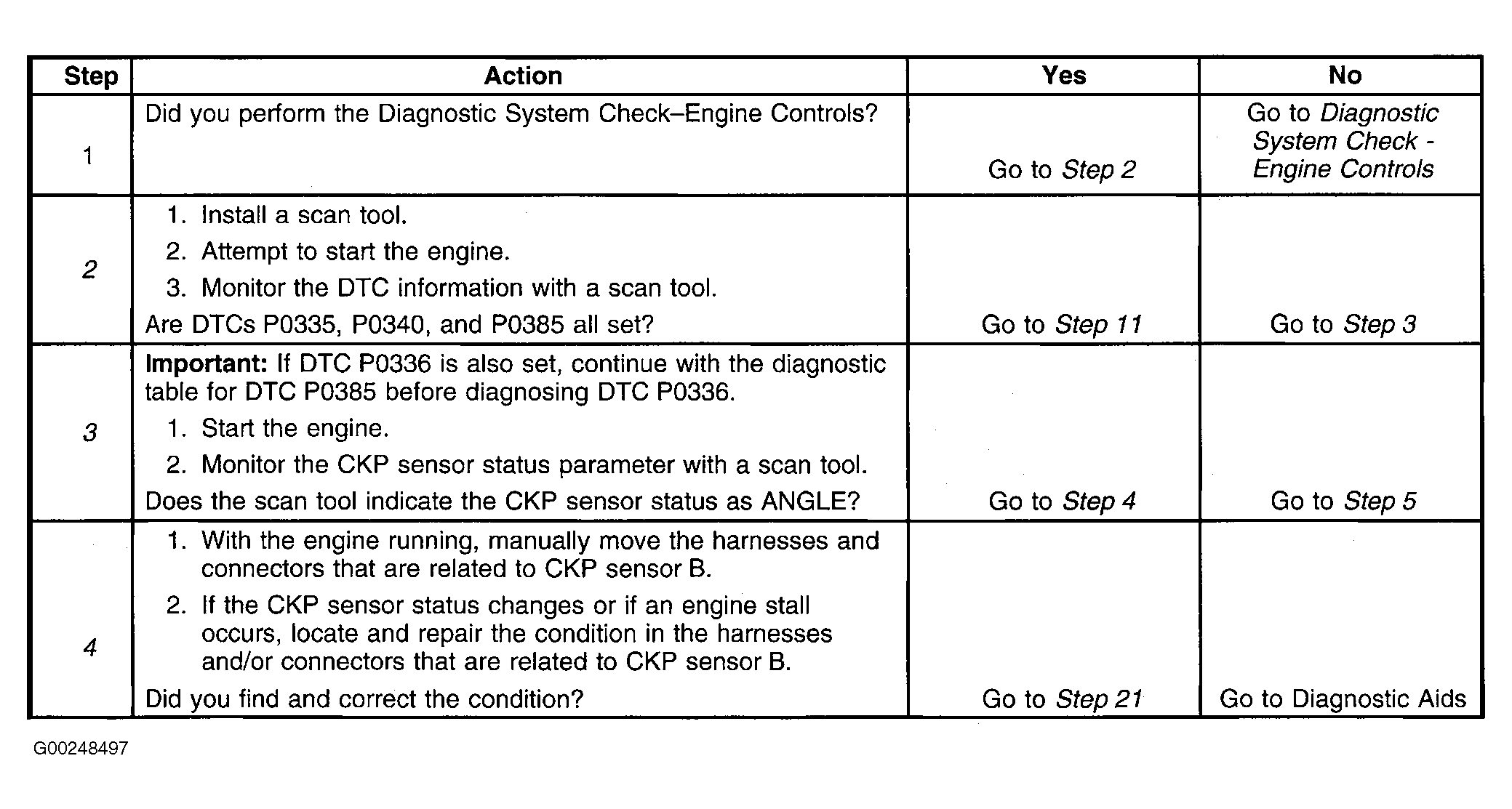

Fig 1: DTC P0385: Crankshaft Position Sensor "B" Circuit (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

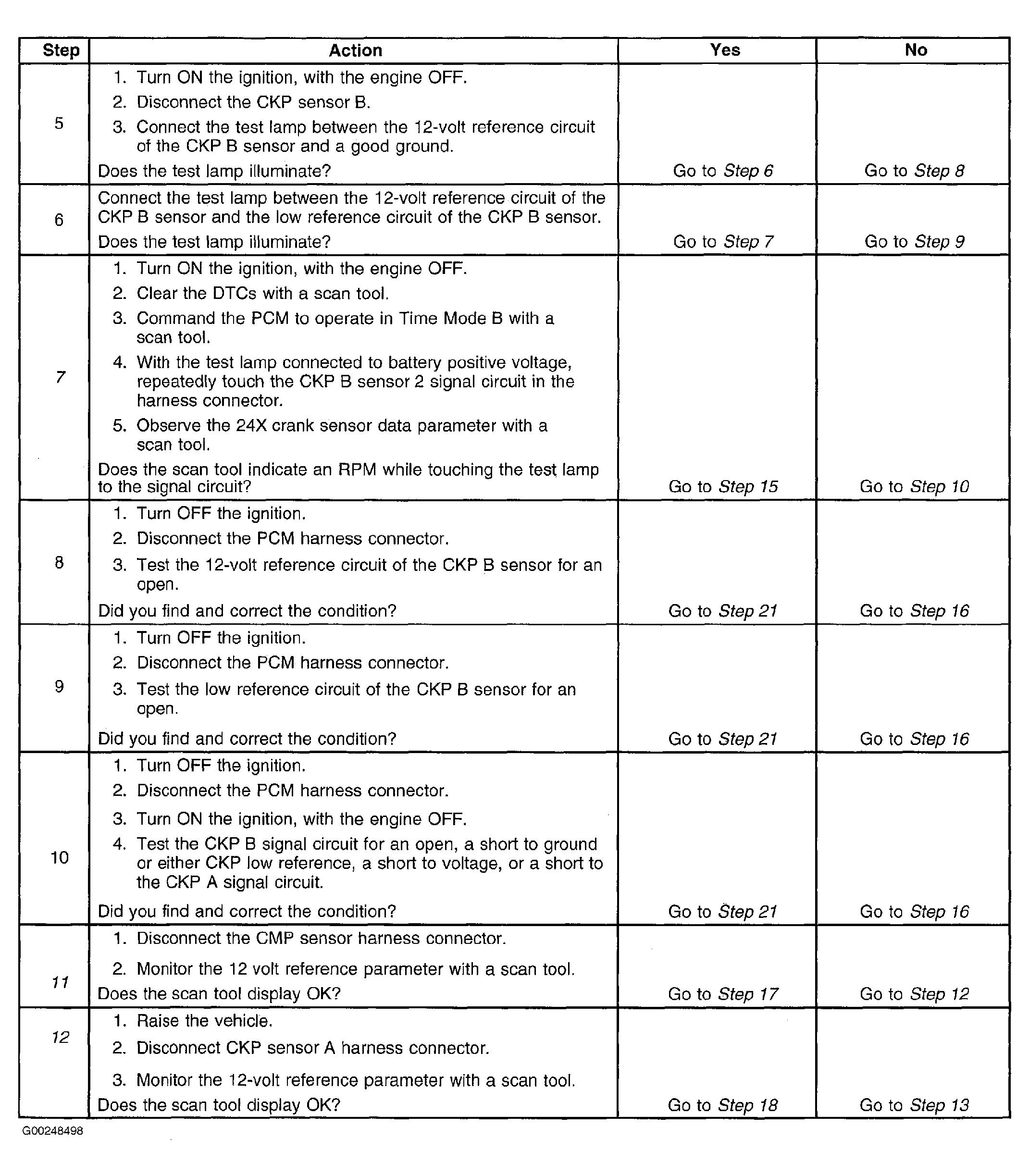

Fig 2: DTC P0385: Crankshaft Position Sensor "B" Loss Of Signal (Steps 5-12)

Courtesy of GENERAL MOTORS CORP.

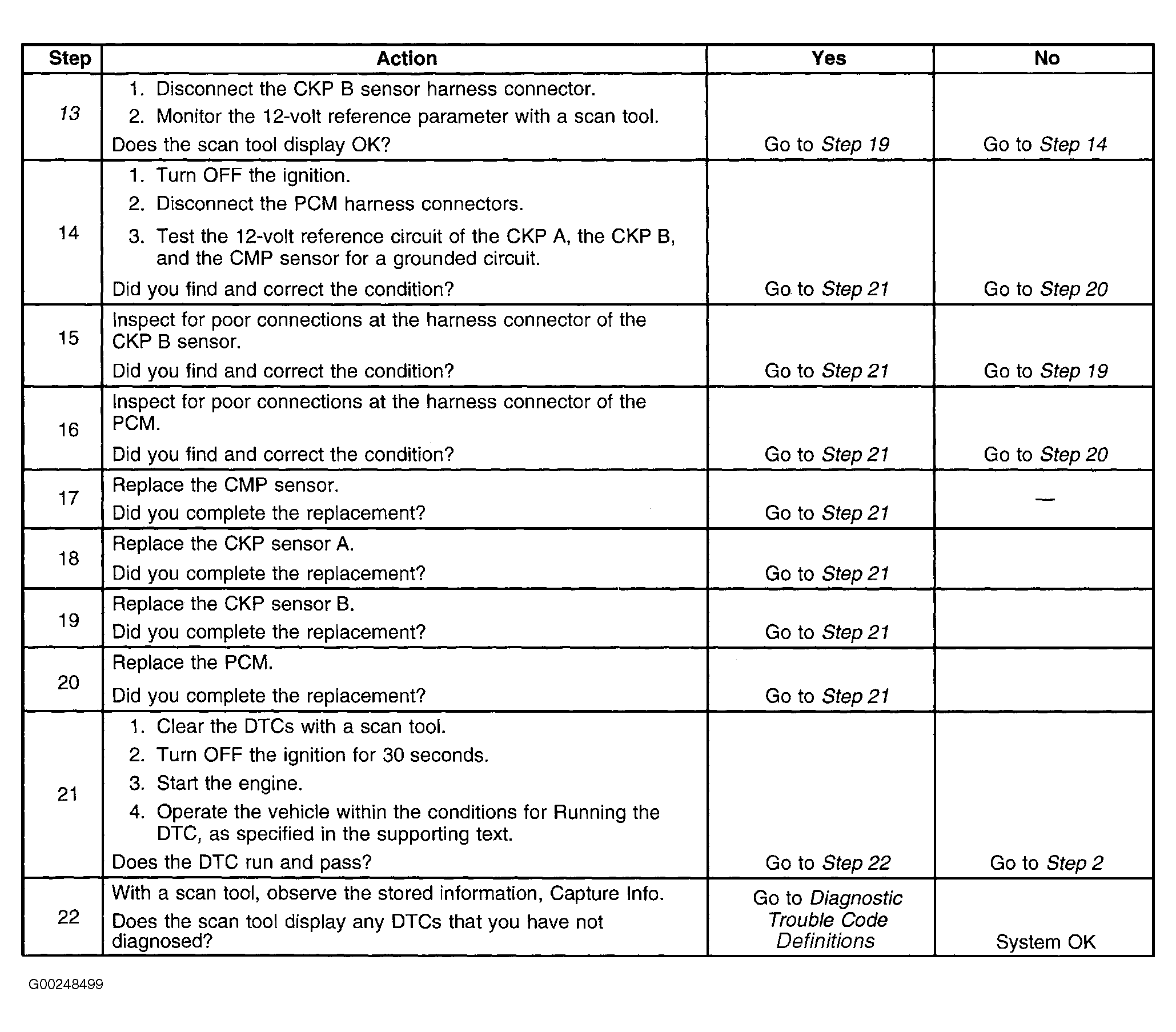

Fig 3: DTC P0385: Crankshaft Position Sensor "B" Loss Of Signal (Steps 13-22)

Courtesy of GENERAL MOTORS CORP.
