Component Locations

WARNING: This page is about a different car, the 2001 GMC Savana, 2001 Chevrolet RV Cutaway, 2001 Chevrolet Cutaway, and 2001 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

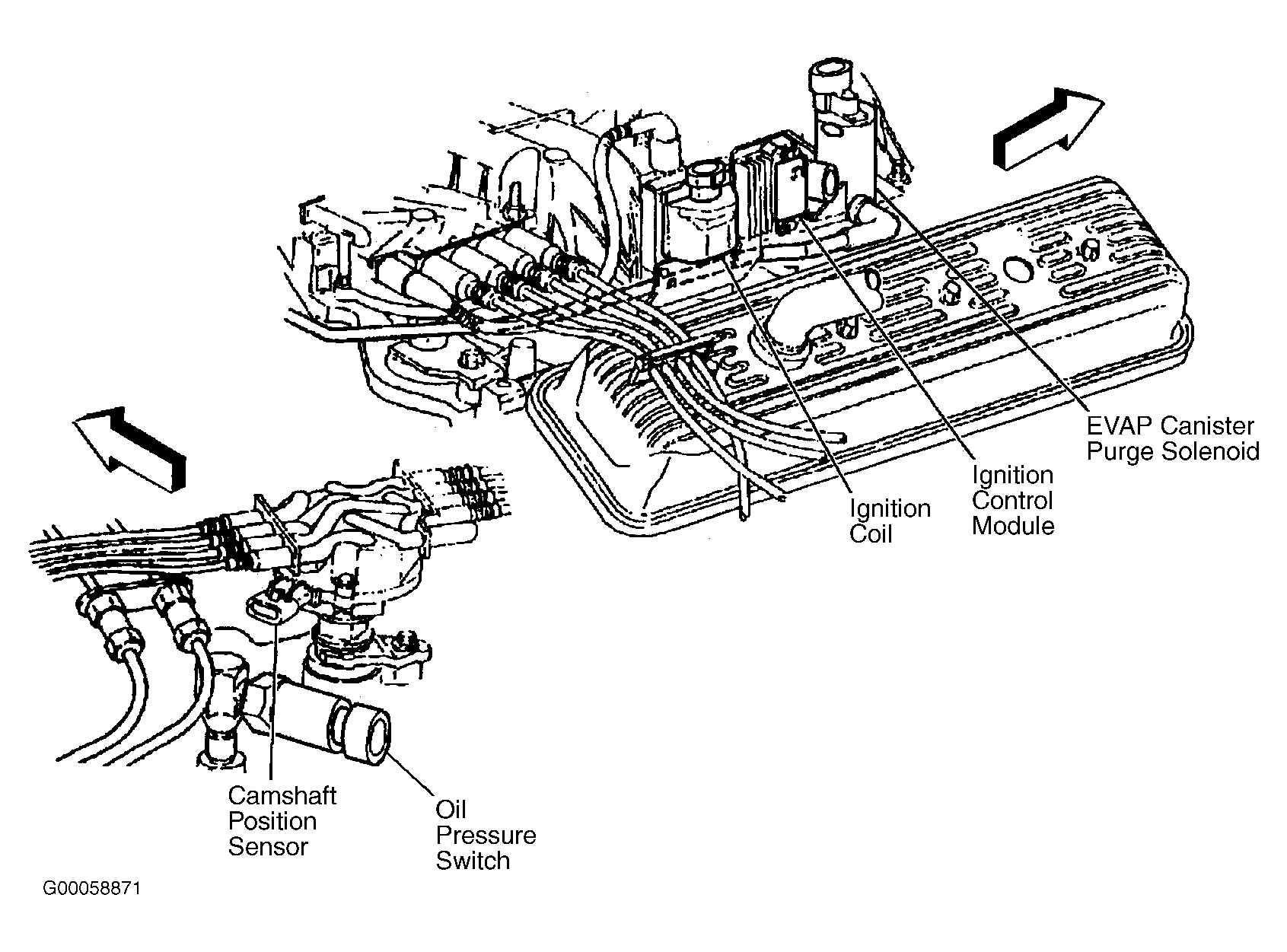

Fig 1: Locating Engine Sensors (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

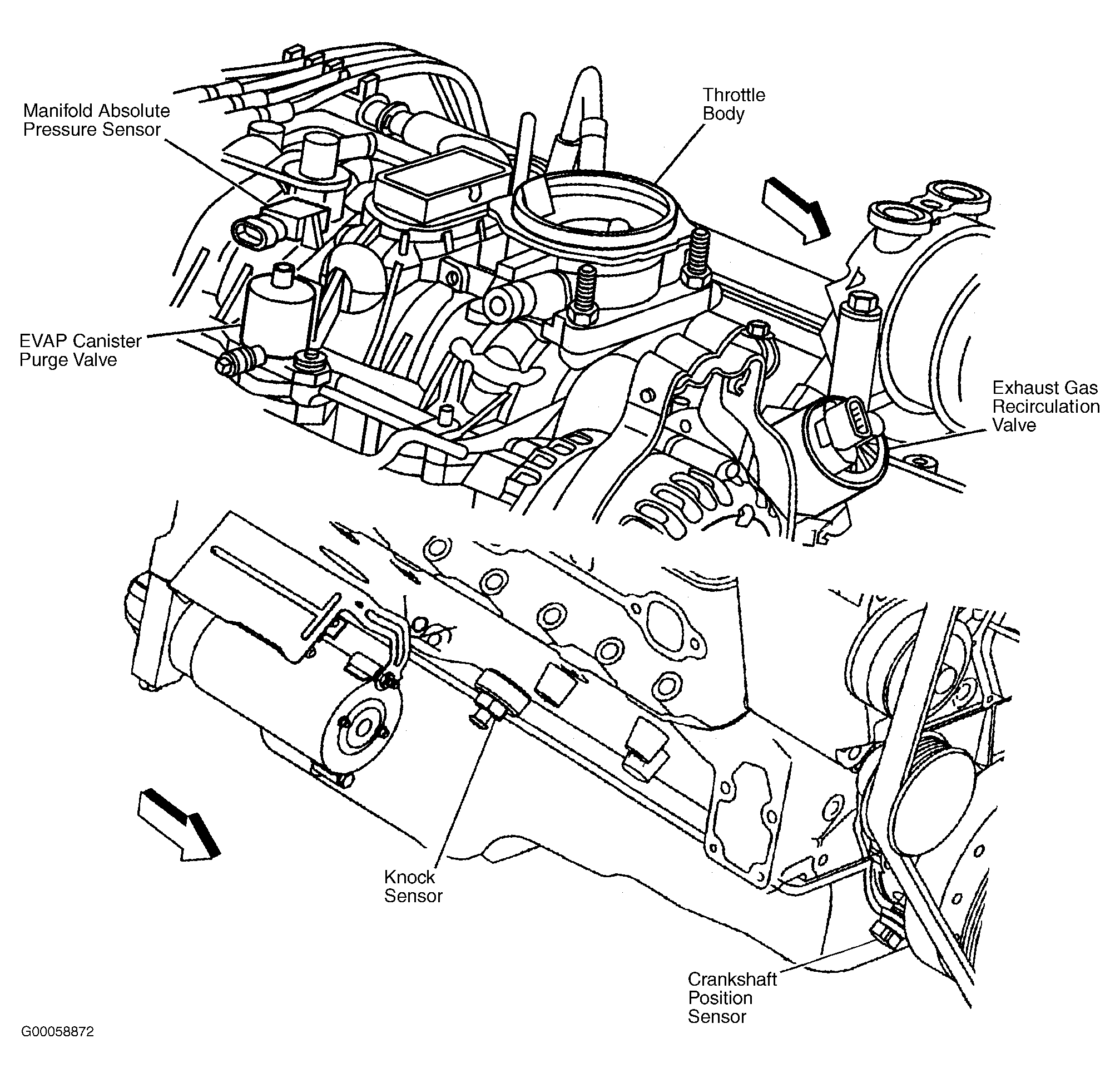

Fig 2: Locating Engine Sensors (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

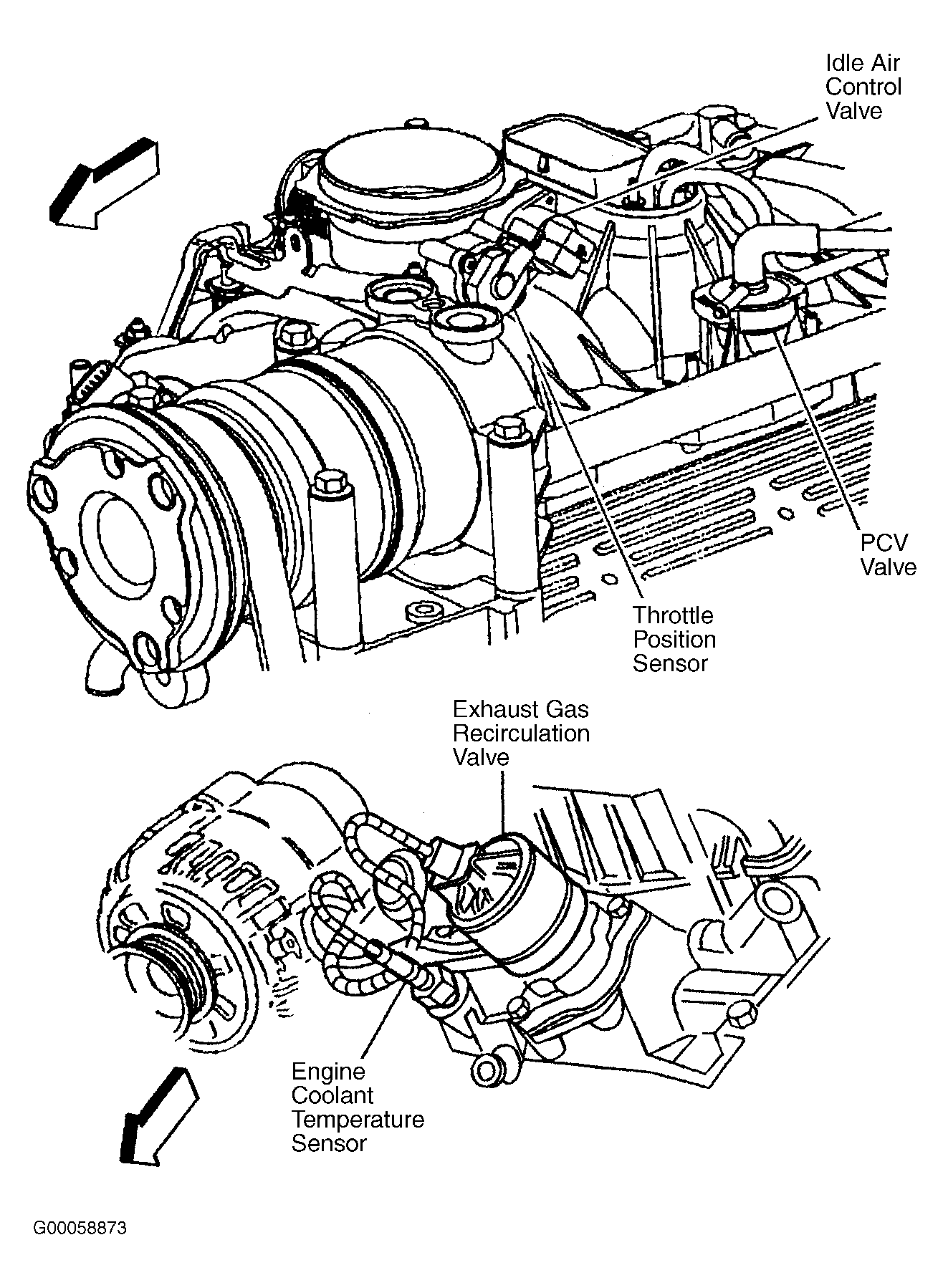

Fig 3: Locating Engine Sensors (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

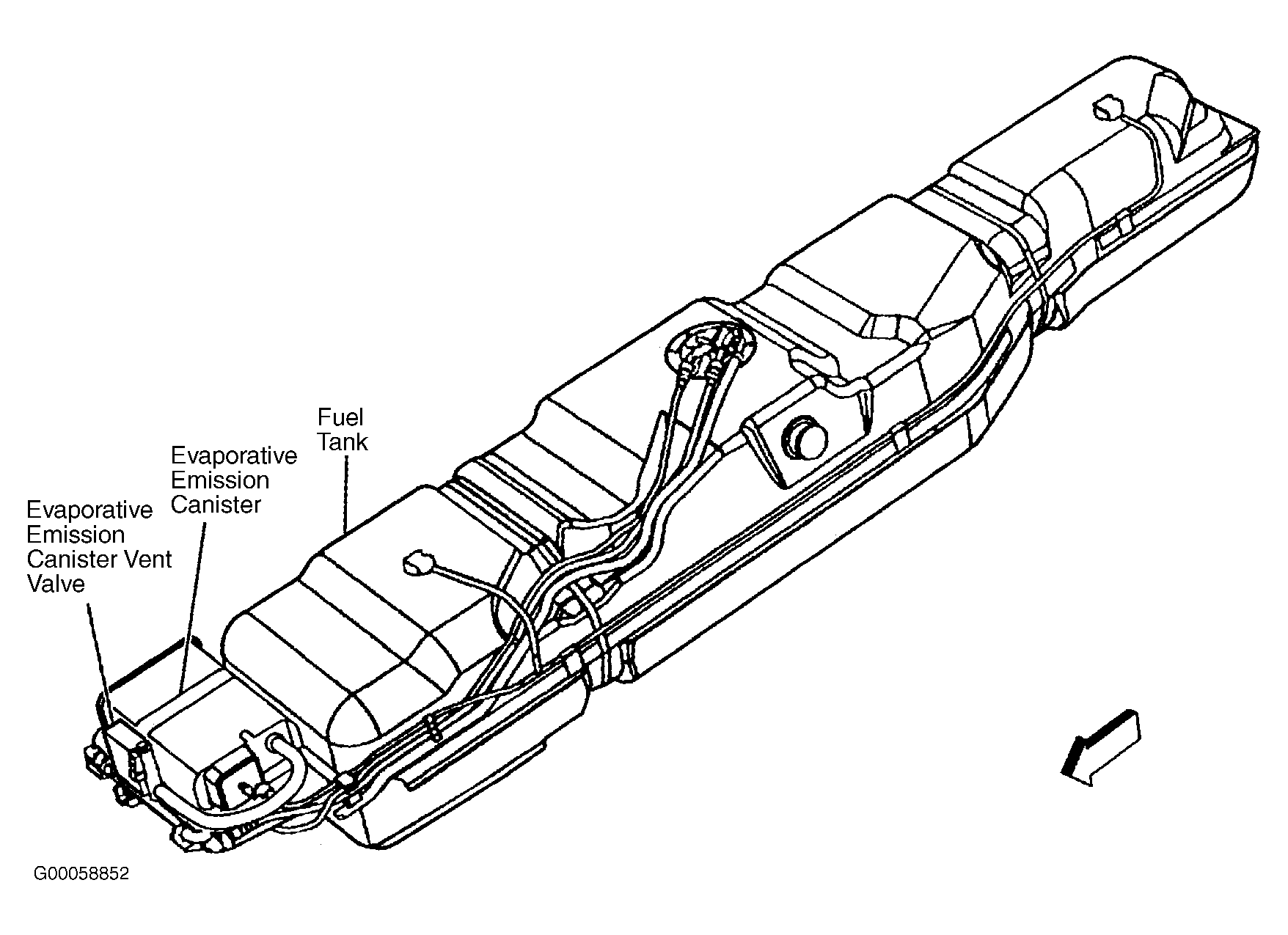

Fig 4: Locating Evaporative Emission Component

Courtesy of GENERAL MOTORS CORP.
