Removal (3.0L)

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the ignition. Remove outlet resonator/duct assembly. See AIR CLEANER OUTLET RESONATOR/DUCT ASSEMBLY  under AIR INDUCTION SYSTEMS. Disconnect EVAP purge solenoid harness connector. See Figure .

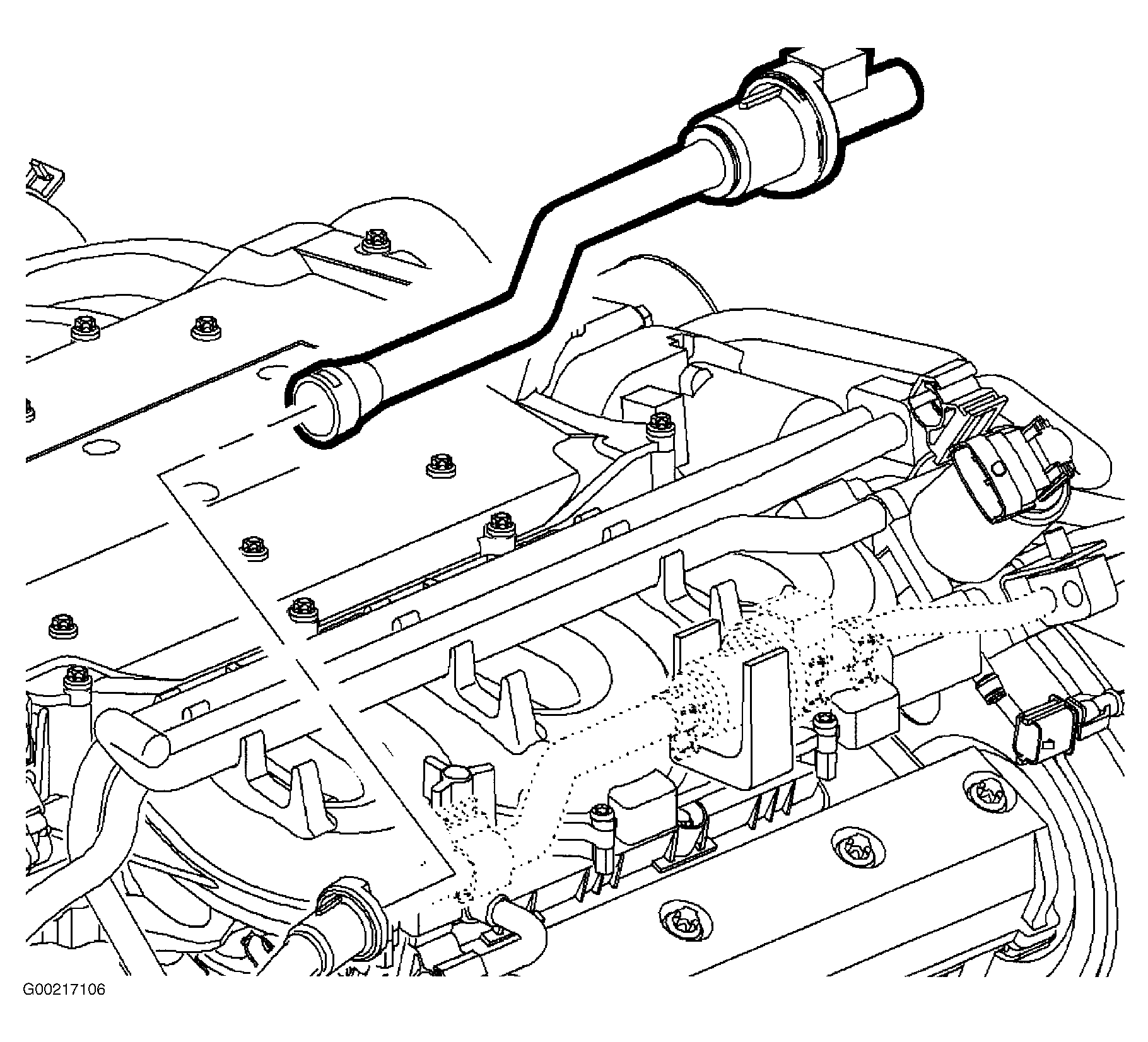

  2. Disconnect EVAP purge line quick-connect between the EVAP purge solenoid and EVAP service port. Release by pressing the release tab to the left then upward while pulling the two lines apart. See Figure . Remove the EVAP purge solenoid and line assembly from the solenoid attachment grommet and V-clamp. Remove EVAP purge solenoid manifold vacuum supply hose and remove solenoid and line assembly.
