Mass Airflow Sensor: Removal
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

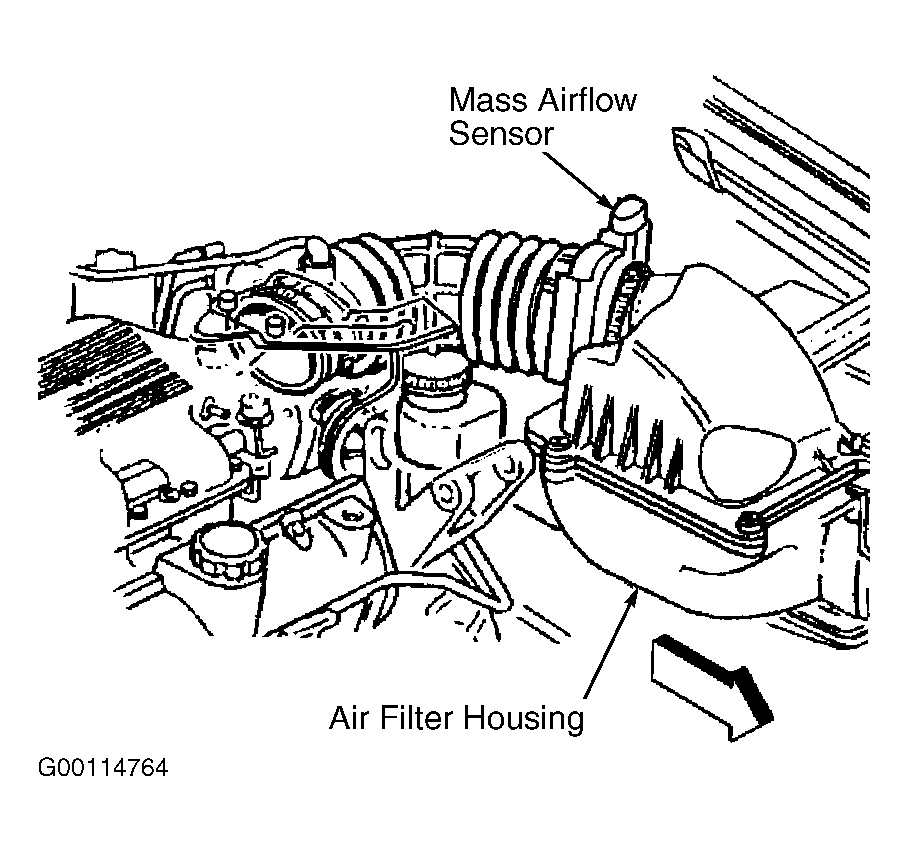

Turn OFF the ignition. Disconnect the Intake Air Temperature (IAT) sensor harness connector. See Figure. Disconnect the Mass Airflow (MAF) sensor harness connector. See Figure. Remove the air cleaner intake duct from the MAF sensor and the throttle body. Remove the MAF sensor from the air filter housing.
