Removal (Short Wheel Base)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

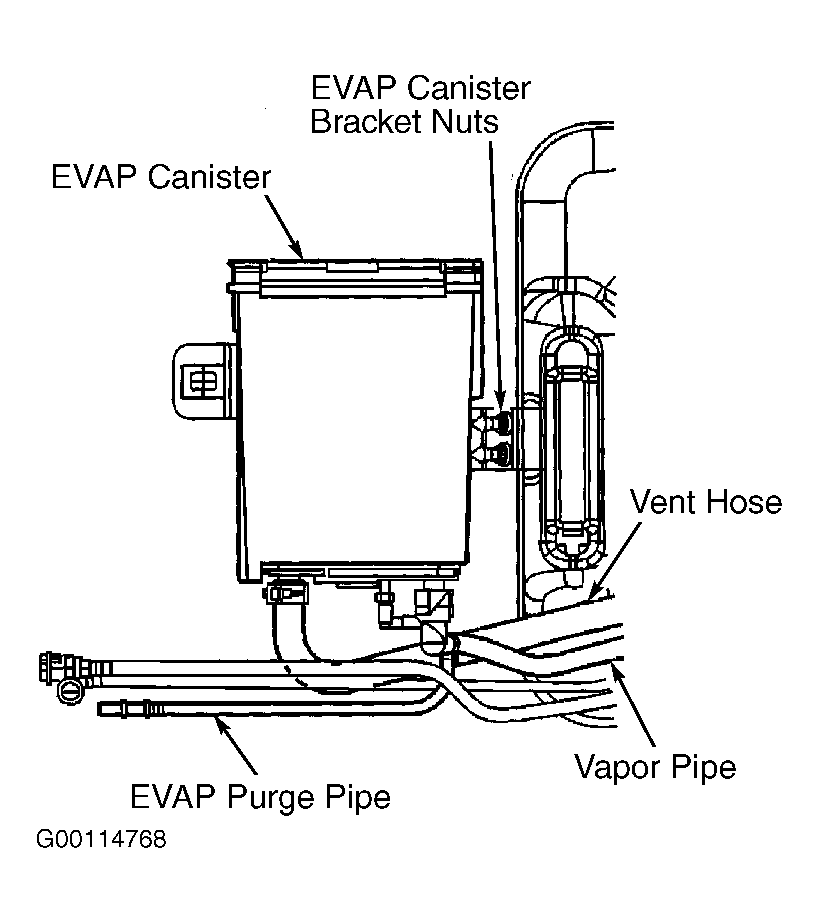

  1. Raise and support the vehicle. Disconnect the EVAP vent hose, purge pipe and vapor pipe from the EVAP canister. See Figure. Remove the forward attaching nut from the EVAP canister bracket.
  2. Remove the 2 rear attaching nuts from the EVAP canister bracket at the fuel tank. Lower the EVAP canister assembly. Pull the rear canister bracket flange away from the EVAP canister. Lift the rear of the EVAP canister from the bracket to release the forward tab.
