EVAP Canister: Installation

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the EVAP canister into the forward tab of the canister bracket. Press the rear of the EVAP canister down in order to engage the rear bracket tabs. Install the EVAP canister assembly to the fuel tank.
  2. Install the 2 attaching nuts to the EVAP canister bracket at the fuel tank studs. Tighten the attaching nuts to specification. See TORQUE SPECIFICATIONS . Install the forward attaching nut to the canister bracket.
  3. Tighten the attaching nuts to specification. Connect the EVAP vent hose, purge pipe and vapor pipe to the EVAP canister. Lower the vehicle.
Fig 1: Identifying EVAP Canister Hoses (Short Wheel Base)
G00114768Courtesy of GENERAL MOTORS CORP.


NOTE: High resistance is normal when installing the EVAP canister.
  1. Position and push the EVAP canister into the EVAP canister bracket of the fuel tank. Pull up on the EVAP canister to ensure a proper lock to the fuel tank bracket. Connect the EVAP canister purge pipe to the EVAP canister.
  2. Connect the EVAP canister vapor pipe to the EVAP canister. Connect the EVAP canister vent pipe to the EVAP canister. Install the fuel tank. See FUEL TANK  under FUEL SYSTEMS.

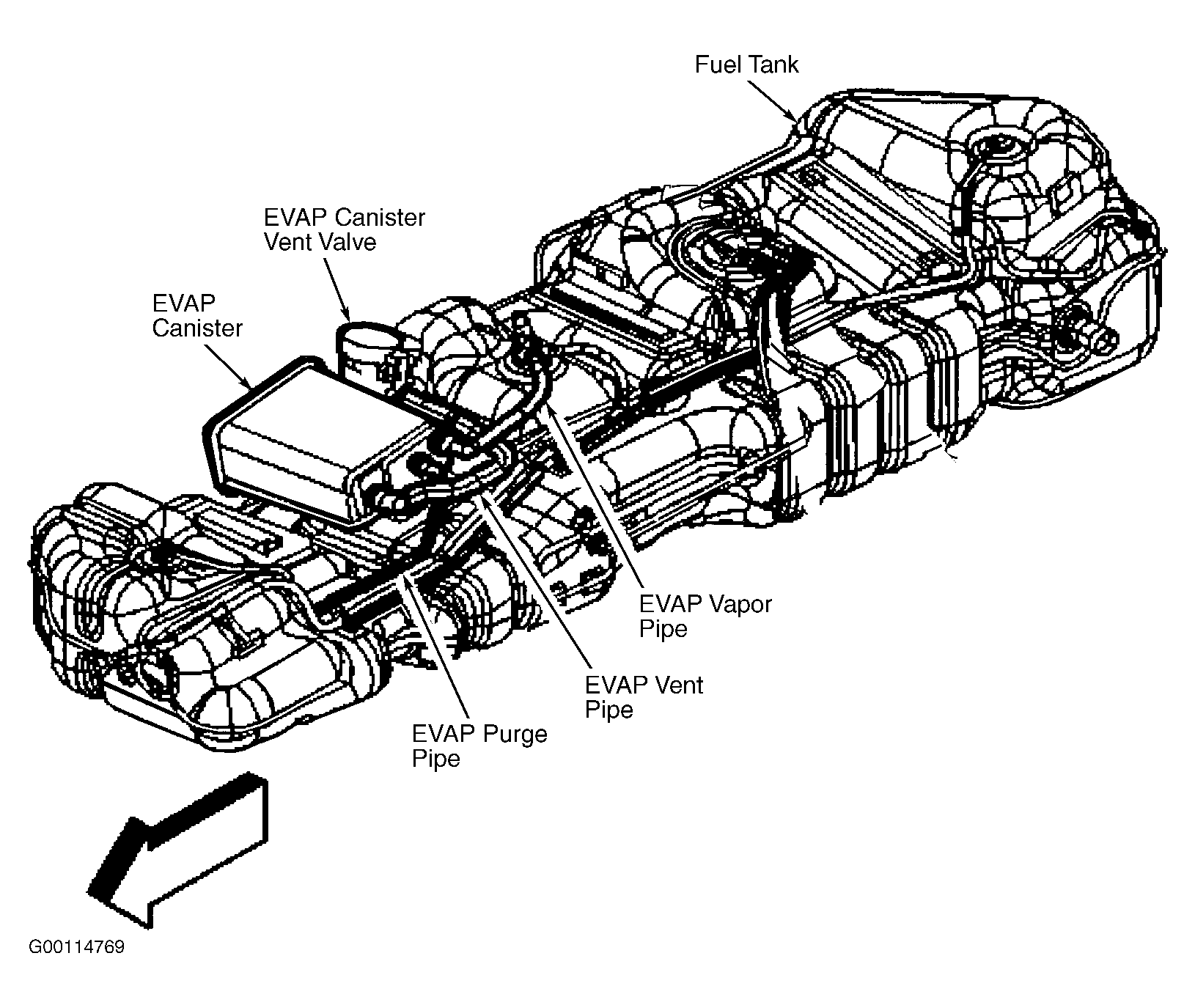

Fig 1: Locating EVAP Canister, EVAP Canister Vent Valve & EVAP Canister Pipes (Long Wheel Base)
G00114769Courtesy of GENERAL MOTORS CORP.
