Air Cleaner Intake Duct: Installation
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
- Install the air cleaner intake duct to the MAF sensor. Install the air cleaner intake duct to the throttle body and the air cleaner cover to the air cleaner assembly. Latch the air cleaner cover clips.

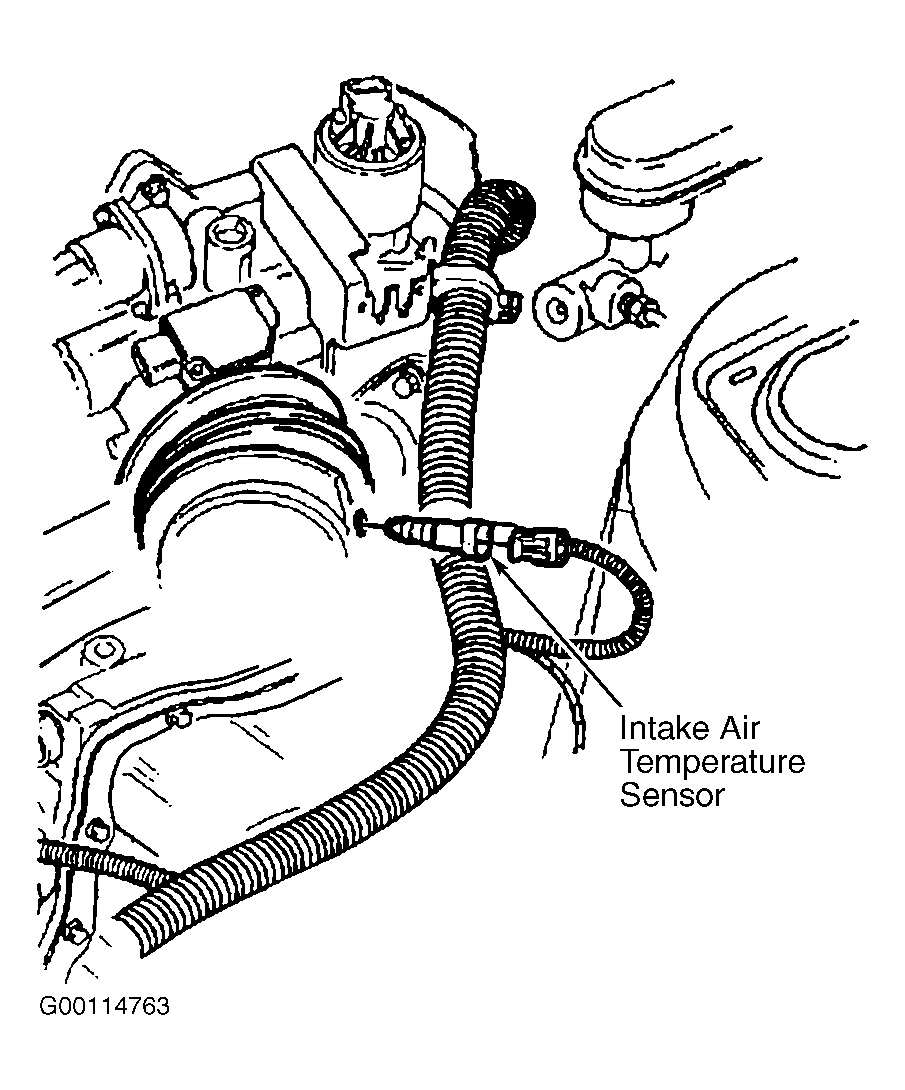

- Reconnect the MAF sensor electrical connector. Reconnect the vent tube to the air cleaner intake duct. Reconnect the IAT sensor electrical connector. Tighten the air cleaner intake duct clamps to specification. See TORQUE SPECIFICATIONS .
