Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the crankshaft front oil seal with engine oil in order to make installation easier.
  2. Install the crankshaft front oil seal using the J 35468. Ensure that the crankshaft front oil seal lip faces the engine.

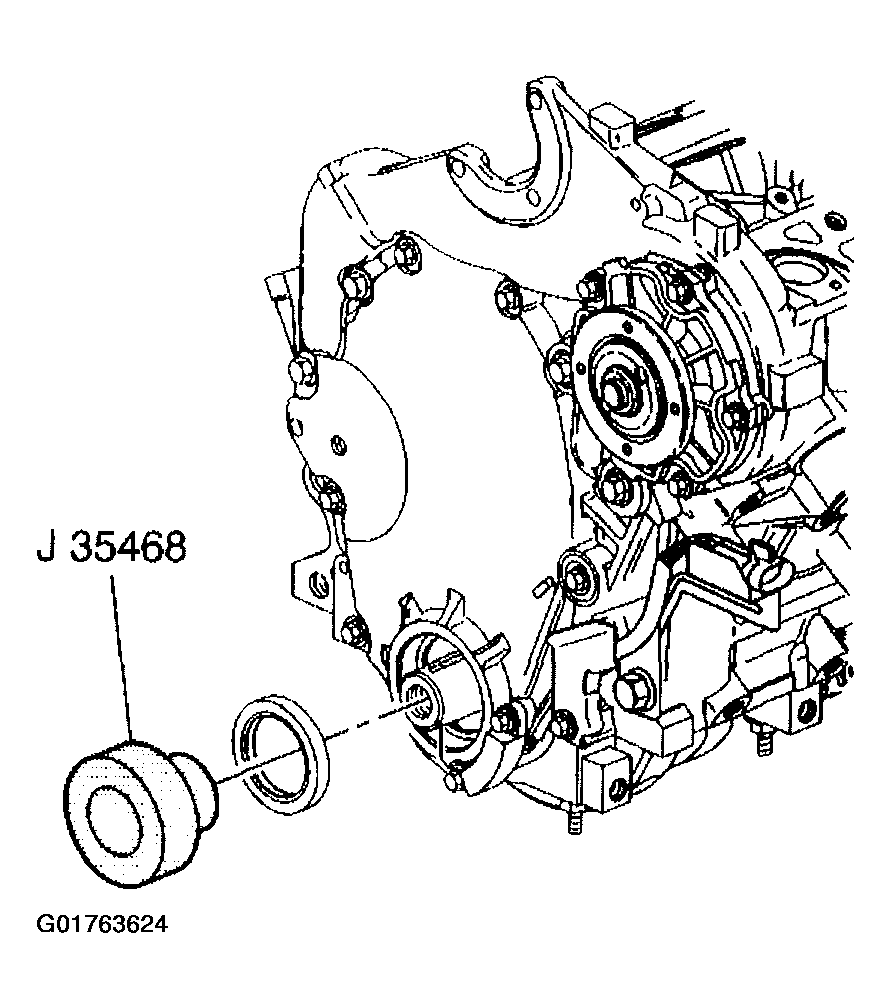

    Fig 1: Installing The Crankshaft Front Oil Seal
    G01763624Courtesy of GENERAL MOTORS CORP.
  3. Ensure the crankshaft front oil seal is installed flush to the engine front cover (1).
    4. Fig 2: Aligning Crankshaft Front Oil Seal
    G01763625Courtesy of GENERAL MOTORS CORP.
  4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  5. Inspect for leaks.
