Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 12346004 (Canadian P/N 10953480) or equivalent.
  2. Install the camshaft rear bearing hole plug.

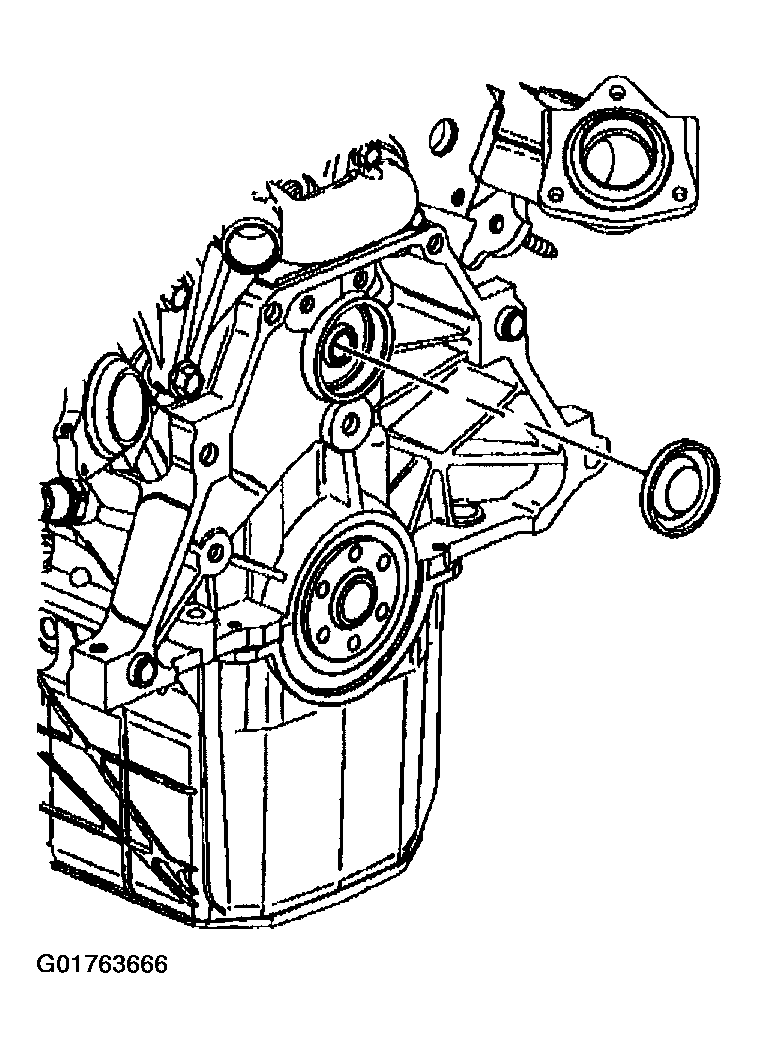

    Fig 1: Camshaft Rear Bearing Hole Plug
    G01763666Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the camshaft rear bearing plug is installed to specifications.
    4. Fig 2: Camshaft Rear Bearing Plug Installation Specifications
    G01763667Courtesy of GENERAL MOTORS CORP.
  4. Install the engine flywheel. Refer to Engine Flywheel Replacement .
