Transaxle Brace: Removal
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

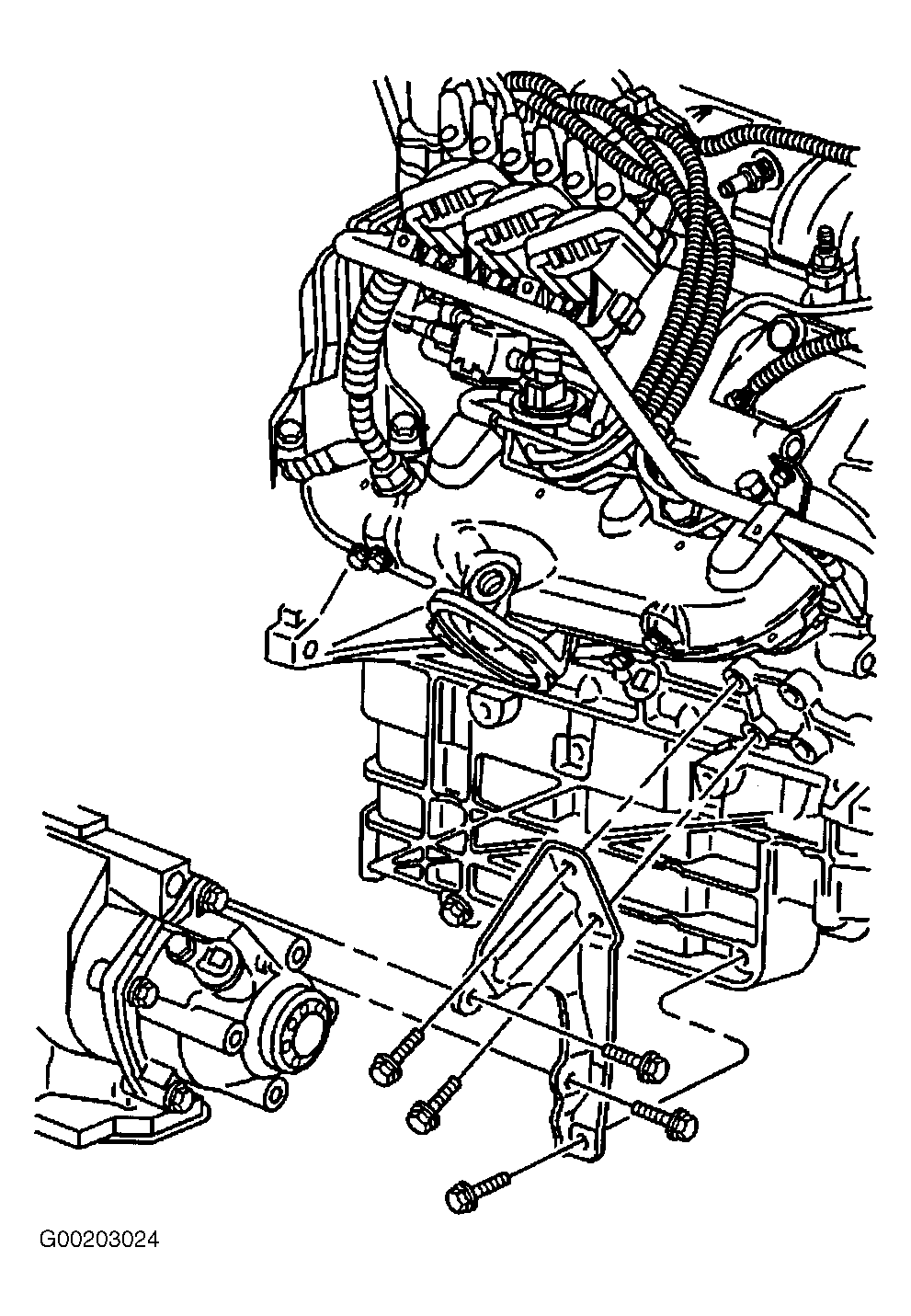

Raise and support the vehicle. Remove the right front tire and wheel. Remove the right engine splash shield. Remove the transaxle brace bolts. See Fig 1 . Remove the transaxle brace.
