Removal & Installation (Upper Mode Door)

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Remove instrument panel. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT. Remove heater case. See HEATER CORE .
  2. Remove upper mode door actuator and linkage. Remove upper mode door. See Fig 1.

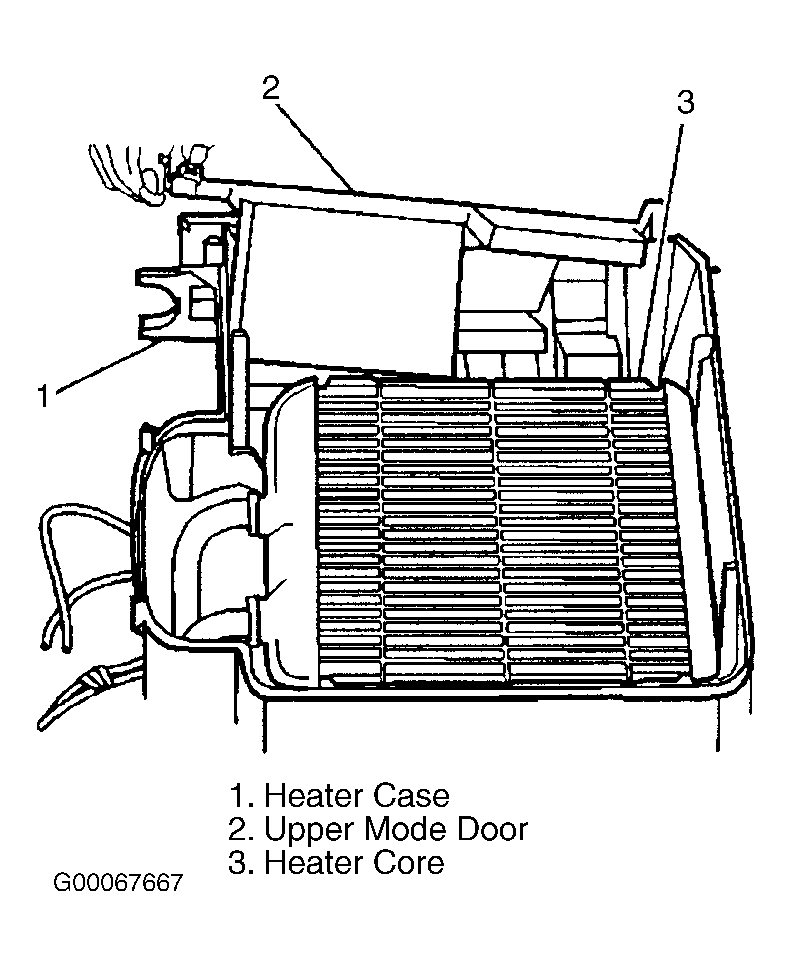

    Fig 1: Exploded View Of Upper Mode Door
    G00067667Courtesy of GENERAL MOTORS CORP.
