Transaxle Oil Cooler Line Seals: Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the new cooler line seal with transaxle fluid.
  2. Using the Cooler Line Seal Installer (J-41239-1), install the new cooler line seal. See Fig 1 .
  3. Install transaxle oil cooler line assembly nut and tighten to specification. See Figure and TORQUE SPECIFICATIONS  .
  4. Lower vehicle.
  5. Add fluid to transaxle. See CHECKING FLUID LEVELS  under LUBRICATION.
  6. Start engine and check for leaks.

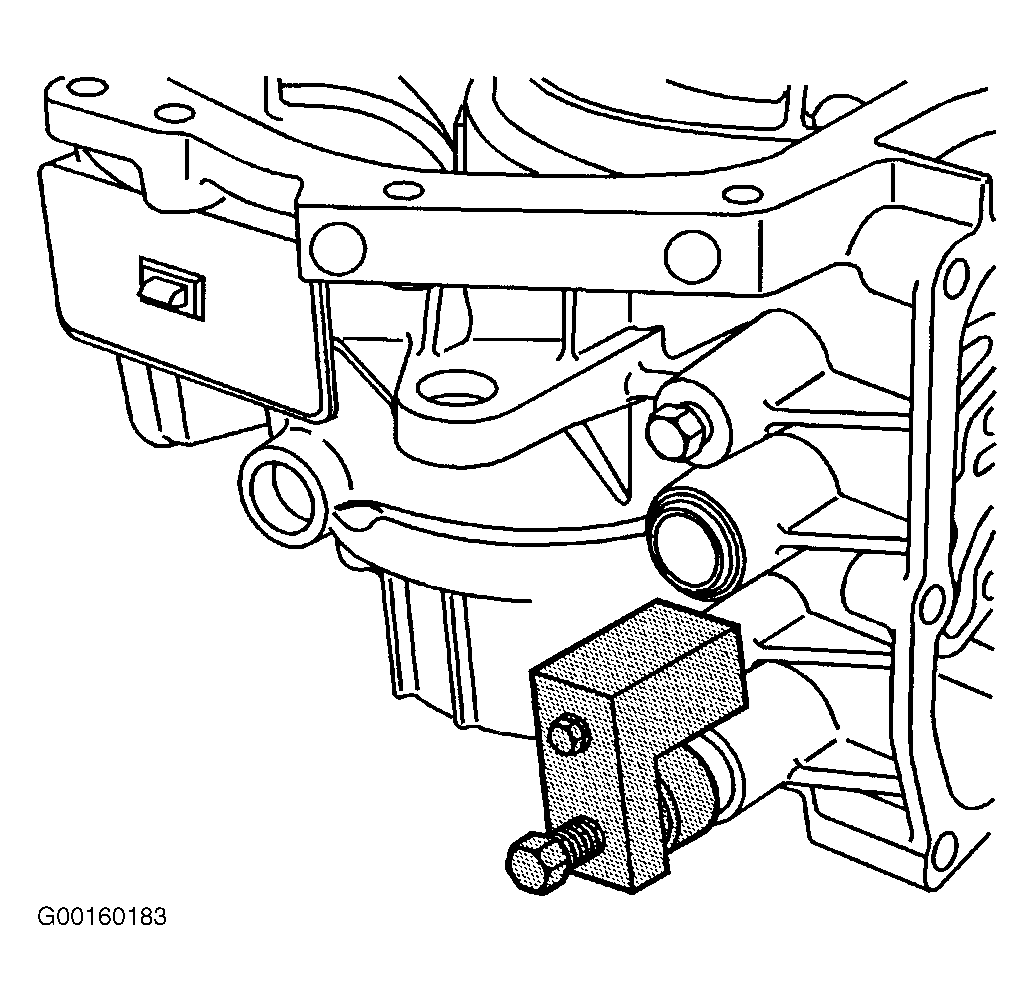

Fig 1: Installing New Cooler Line Seal
G00160183Courtesy of GENERAL MOTORS CORP.
