Removal & Installation

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the underhood relay center knob. See Fig 1. Remove the underhood relay center cover. Remove the A/C compressor control relay (15) from the electrical center. See Fig 2. To install, reverse removal procedure.

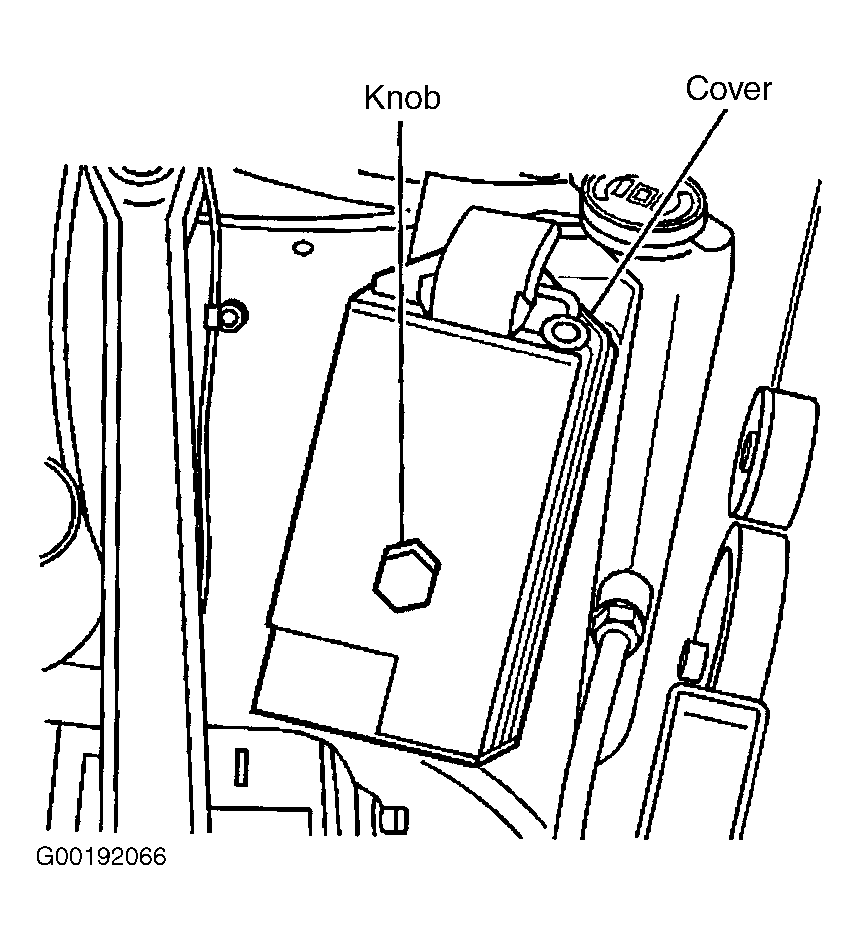

Fig 1: Identifying Underhood Relay Center

Courtesy of GENERAL MOTORS CORP.

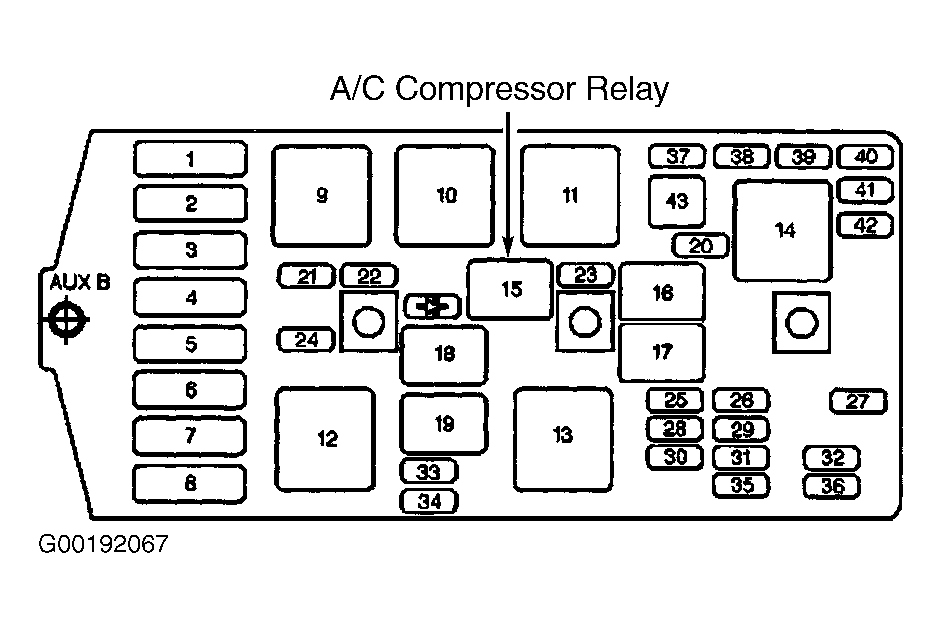

Fig 2: Removing & Installing A/C Compressor Relay

Courtesy of GENERAL MOTORS CORP.
