Solenoids & Solenoid Valves
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
SOLENOIDS & SOLENOID VALVES LOCATION
| Component | Location |
|---|---|
| Air Injection Bleed Valve | On left rear of engine, above valve cover. |
| A/T Shift Lock Control Solenoid | Inside steering column, near ignition switch. |

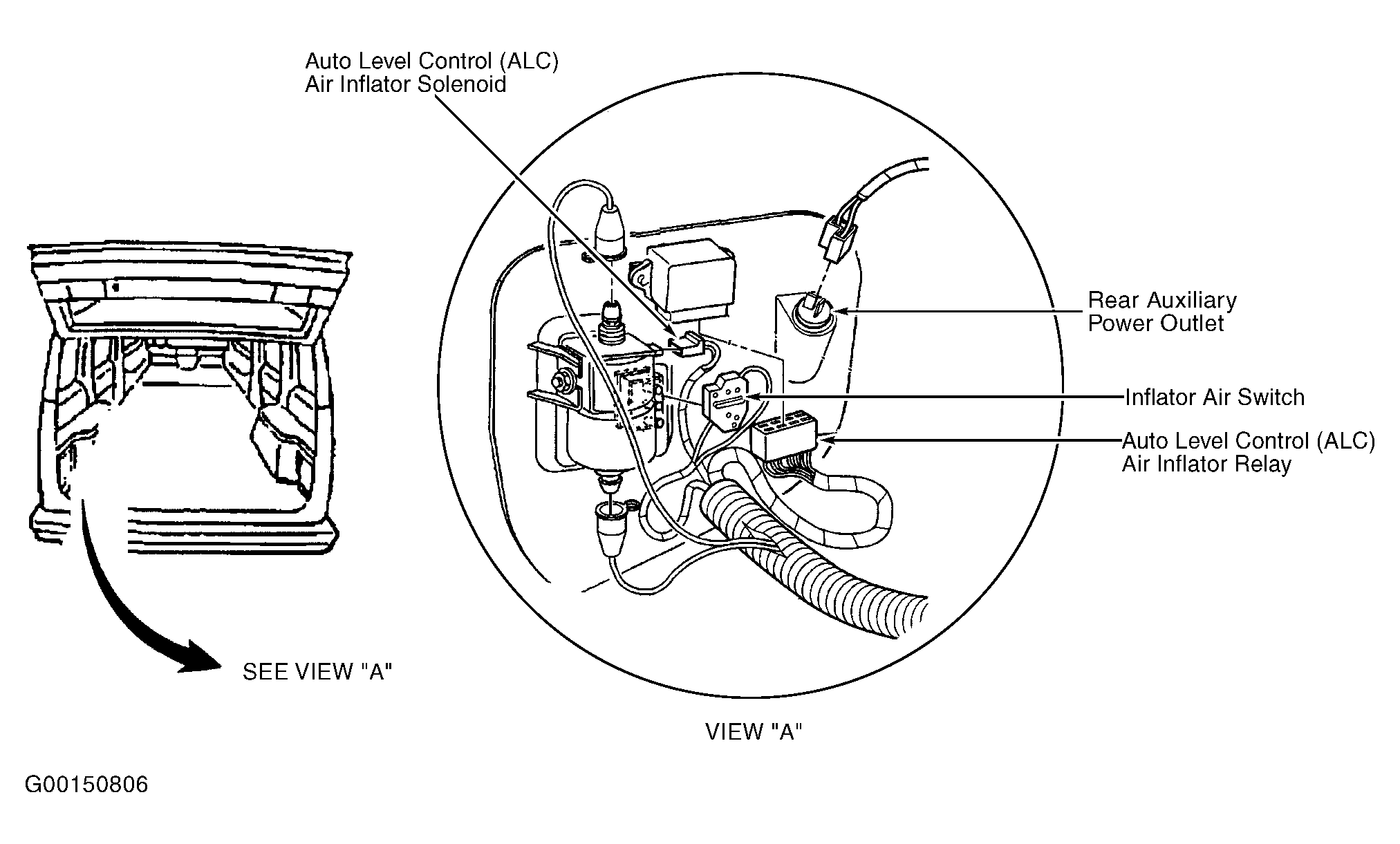

| Auto Level Control (ALC) Air Inflator Solenoid | In left rear of vehicle, behind wheelwell. See Figure . |
| Brake Solenoid Valve (Left) | Part of brake modulator. See Figure . |
| Brake Solenoid Valve (Right) | Part of brake modulator. See Figure . |
| Evaporative Emissions (EVAP) Canister Purge Solenoid | On top right side of engine, below ignition control module. See Figure . |
| Evaporative Emissions (EVAP) Canister Vent Solenoid Valve | Below center of vehicle, in front of fuel tank. |
| Exhaust Gas Recirculation (EGR) Valve | On upper right rear of engine. See Figure . |
| Idle Air Control (IAC) Valve | On top of engine, on front of throttle body assembly. See Figure . |
| Torque Converter Clutch (TCC) Solenoid Valve | Inside automatic transaxle. |
| 1-2 Shift Solenoid (1-2 SS) Valve | Inside automatic transaxle. |
| 2-3 Shift Solenoid (2-3 SS) Valve | Inside automatic transaxle. |
