Removal & Installation

WARNING: This page is about a different car, the 2003 Chevrolet Corvette and 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

For an exploded view of the drive shaft assembly, see Fig 1. For drive shaft removal and installation, see DRIVELINE SUPPORT ASSEMBLY .

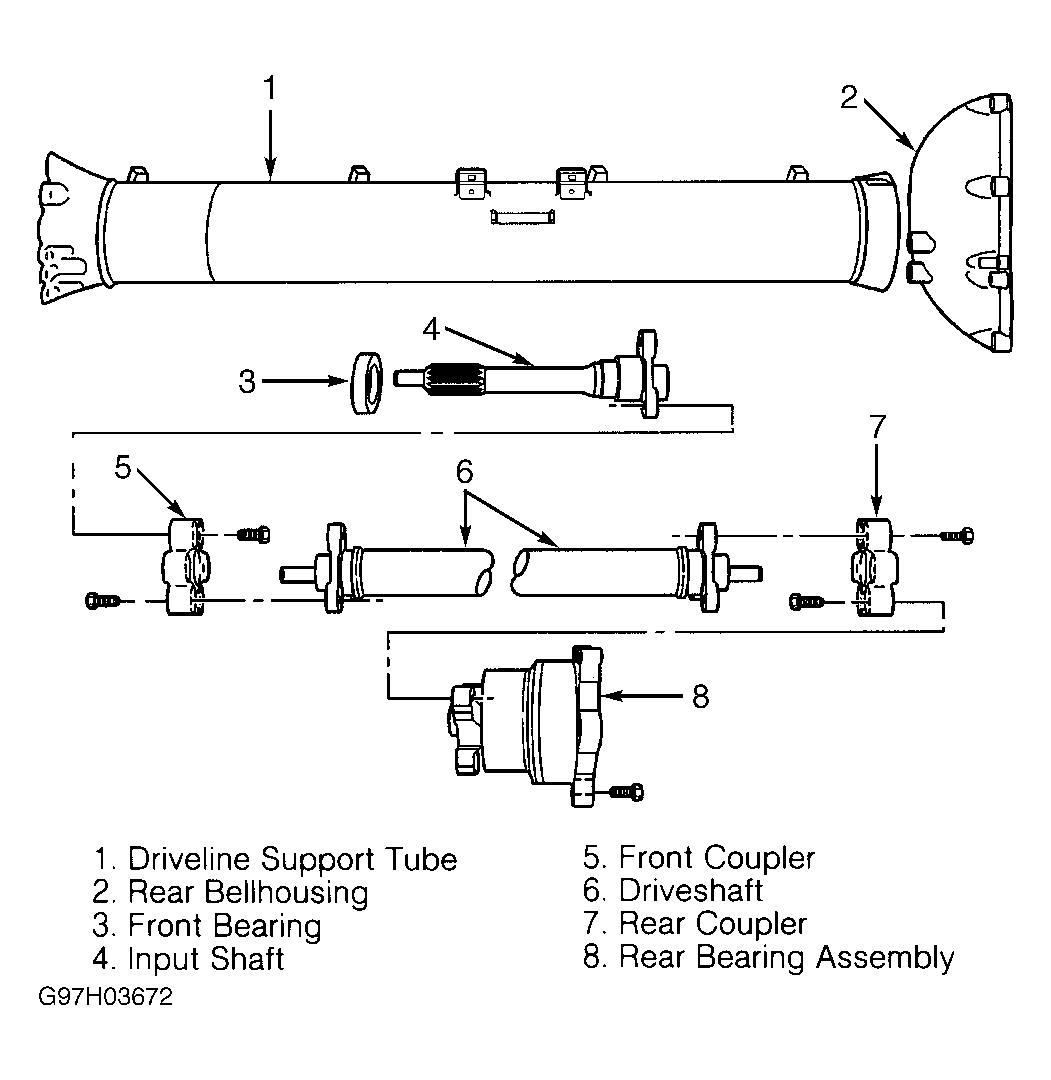

Fig 1: Exploded View Of Drive Shaft Case Assembly
G97H03672Courtesy of GENERAL MOTORS CORP.
