Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the reveal molding away from the top of the door using a small flat-bladed tool to release the clips while pulling.
  2. Remove the reveal molding from the door.

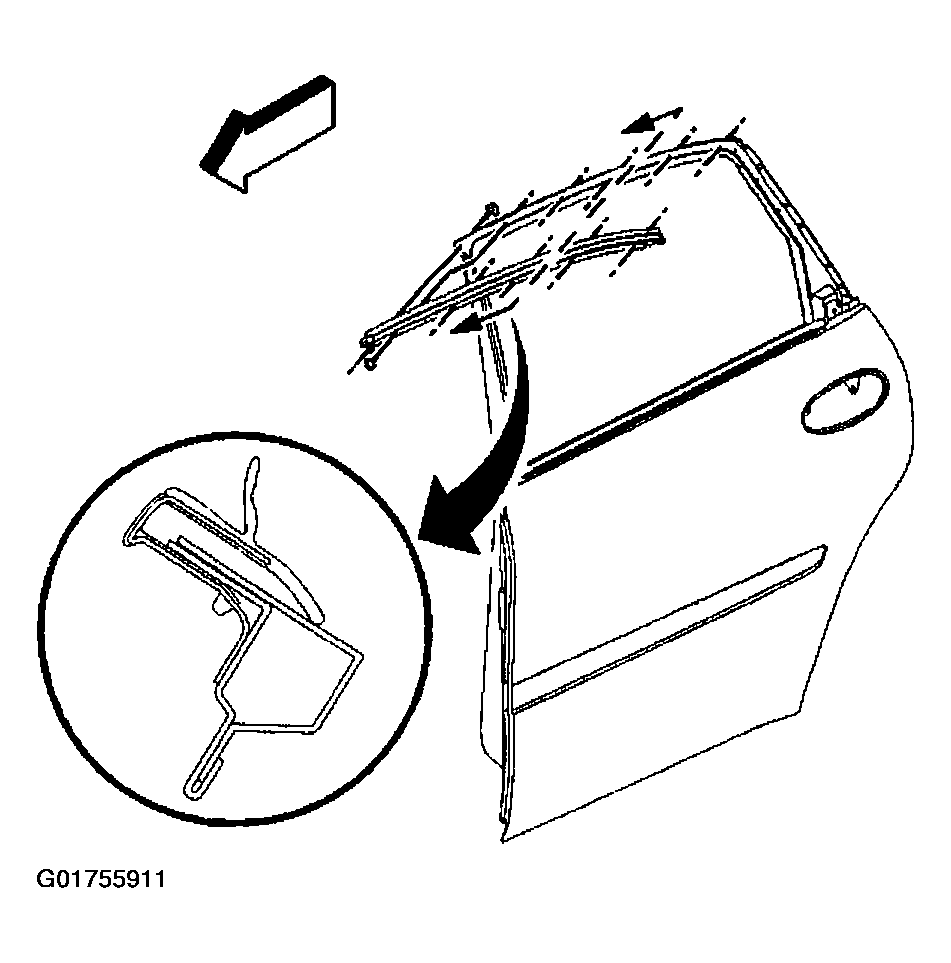

    Fig 1: Identifying Rear Door Window Reveal Molding
    G01755911Courtesy of GENERAL MOTORS CORP.
