Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door lock. Refer to Lock Replacement - Rear Door .
  2. Remove the rear door lock to rear door lock actuator screws.

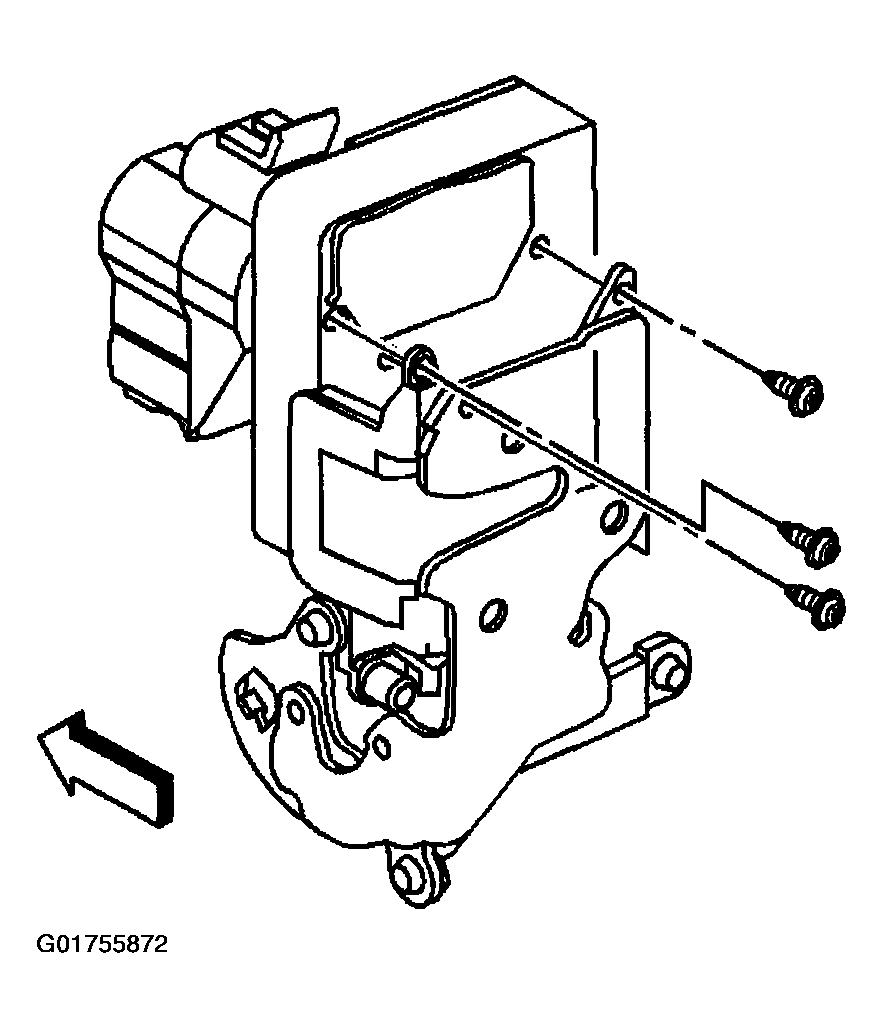

    3. Fig 1: Identifying Rear Door Lock Actuator
    G01755872Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear door actuator from the rear door lock.
