Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the door window in the down position.
  2. Remove the door window weatherstrip part way from the molding. Refer to Weatherstrip Replacement - Rear Door Window .
  3. Remove the outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  4. Remove the window weatherstrip retainer. Refer to Reveal Molding Replacement - Rear Door Window .
  5. Slide the door frame molding upwards.
  6. Remove the rear door frame molding from the door.

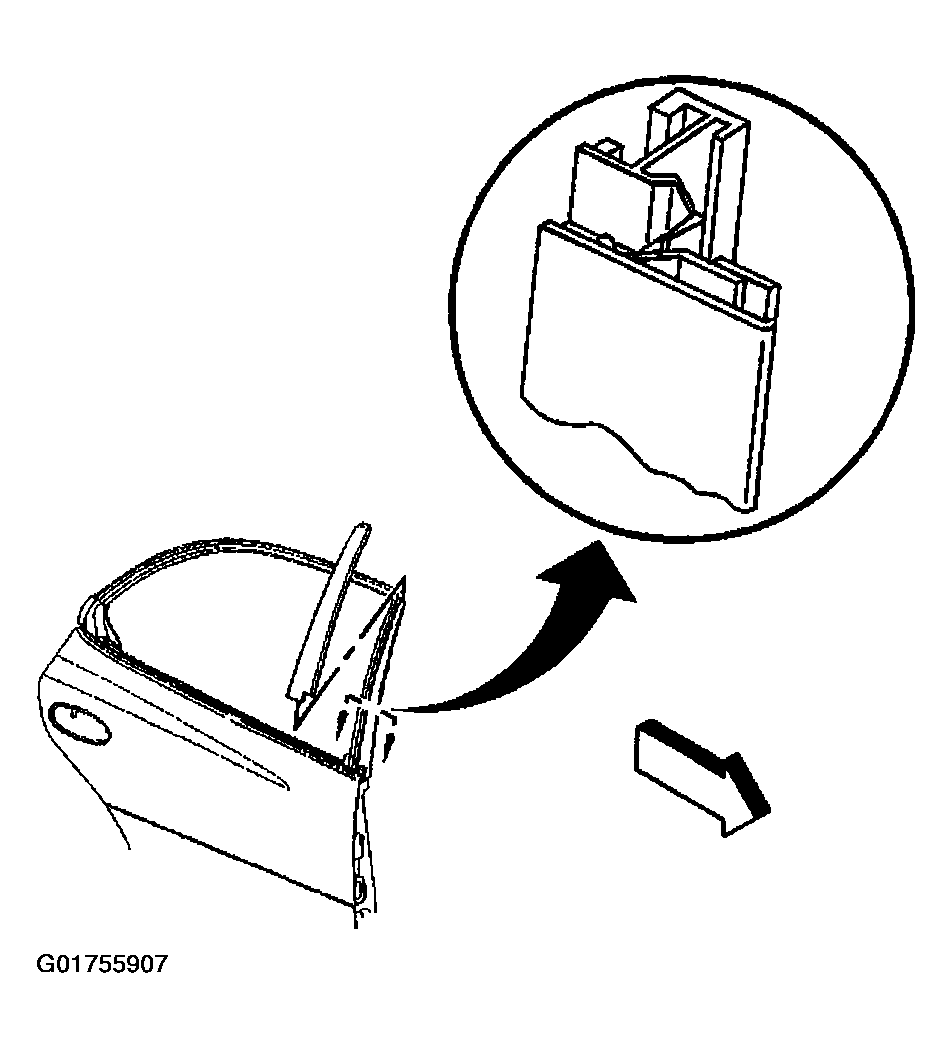

    Fig 1: Identifying Rear Door Frame Garnish Molding
    G01755907Courtesy of GENERAL MOTORS CORP.
