Installation - Right (3.1L)

WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right engine mount strut bracket over the pin locator. See Figure .
  2. Install the bolts through the right engine mount strut bracket to the cylinder head. Tighten engine mount strut bracket bolt to specification. See TORQUE SPECIFICATIONS  .

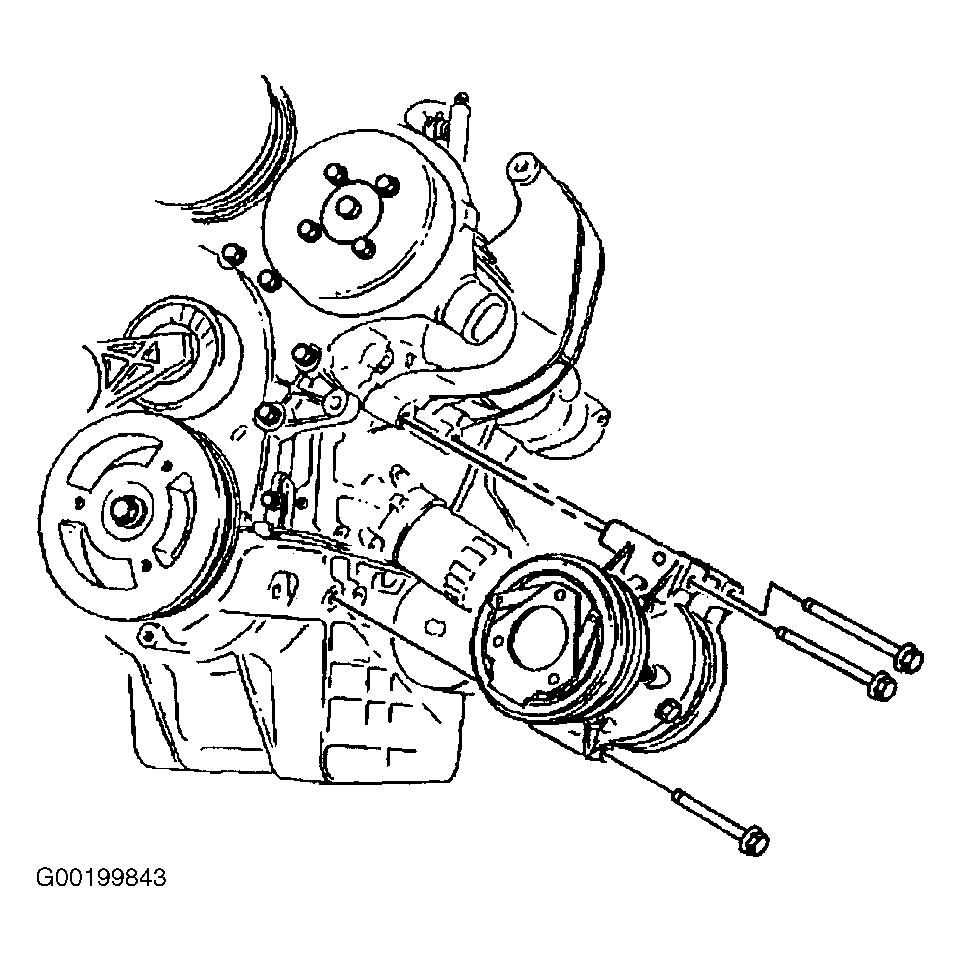

  3. Install the air conditioning compressor. Tighten air conditioning compressor mounting bolts to specification. See TORQUE SPECIFICATIONS  .

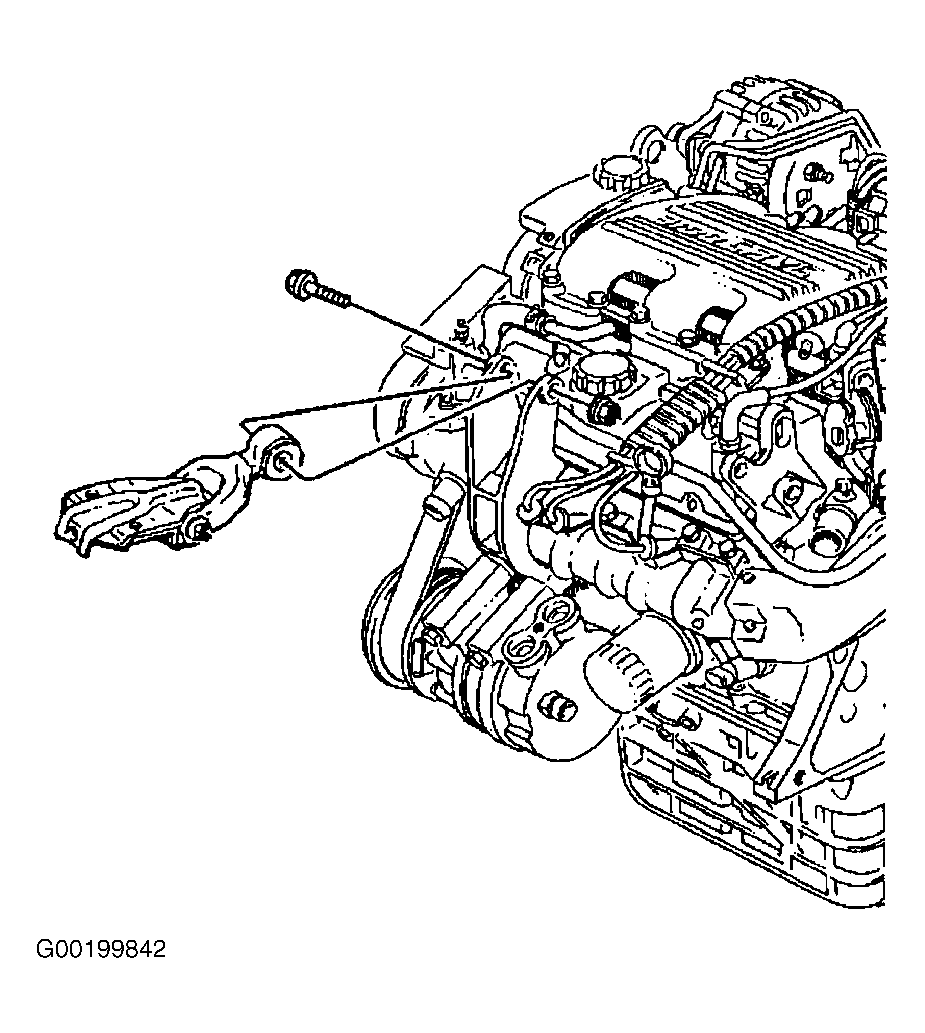

  4. Install the right engine mount strut to the right engine mount strut bracket. See Figure .
