Installation (3.8L)
WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
- Install the air cleaner intake duct to the throttle body.
- Install the air cleaner intake duct to the air cleaner cover. Tighten the air cleaner duct clamp to specification. See TORQUE SPECIFICATIONS .
- Install the IAT sensor.

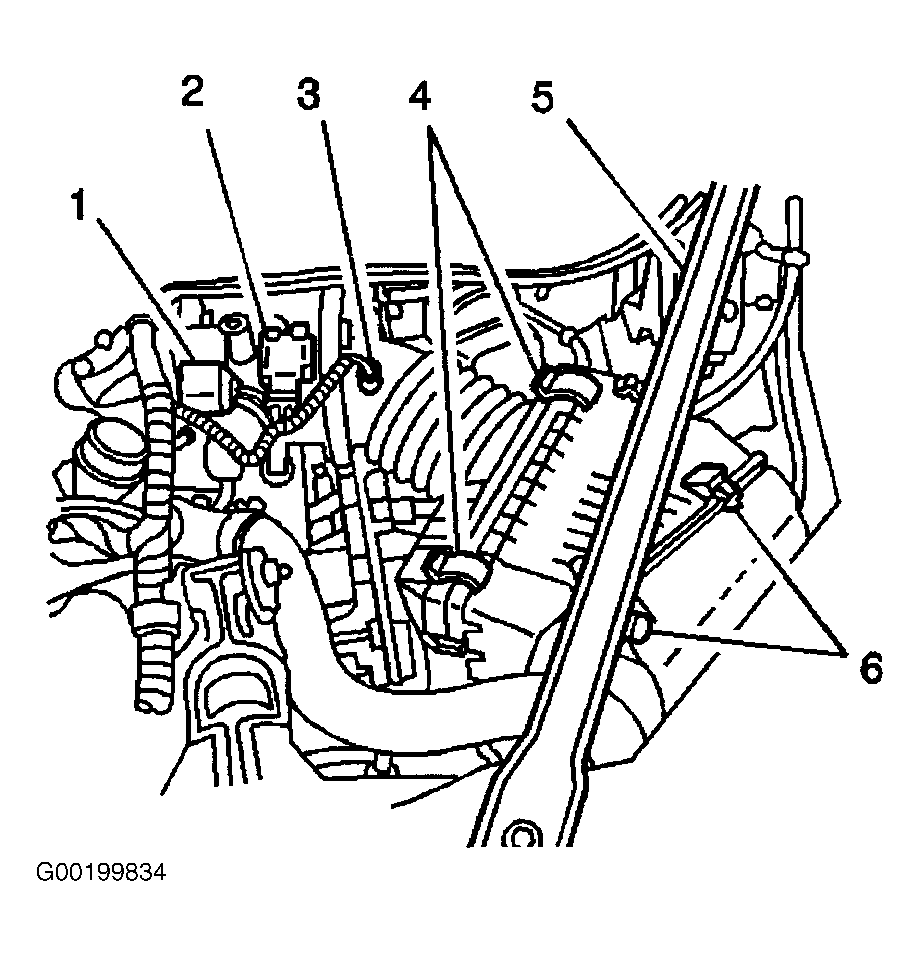

- Connect the IAT sensor electrical connector (3). See Figure .
