Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove sill plate retainers (1 and 2). Pull upward on sill plate (3) to release spring clips and remove sill plate. See Fig 1.
  2. Remove trunk floor trim panel retainers. Remove trunk floor trim panel (2). Remove trunk side trim panel retainers. Remove trunk side trim panels (1 and 3). See Fig 2.
  3. Remove trunk front trim panel retainers and remove trunk front trim panel. See Fig 3.
  4. To install, reverse removal procedure.

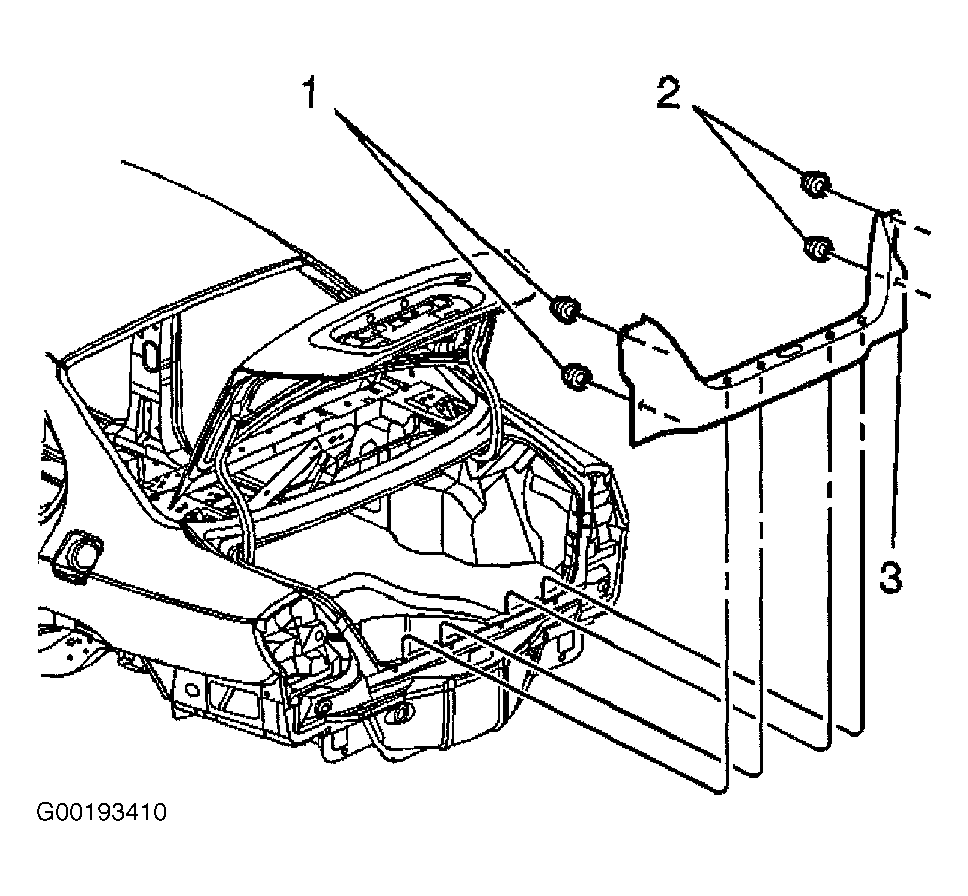

Fig 1: Removing Trunk Sill Plate
G00193410Courtesy of GENERAL MOTORS CORP.

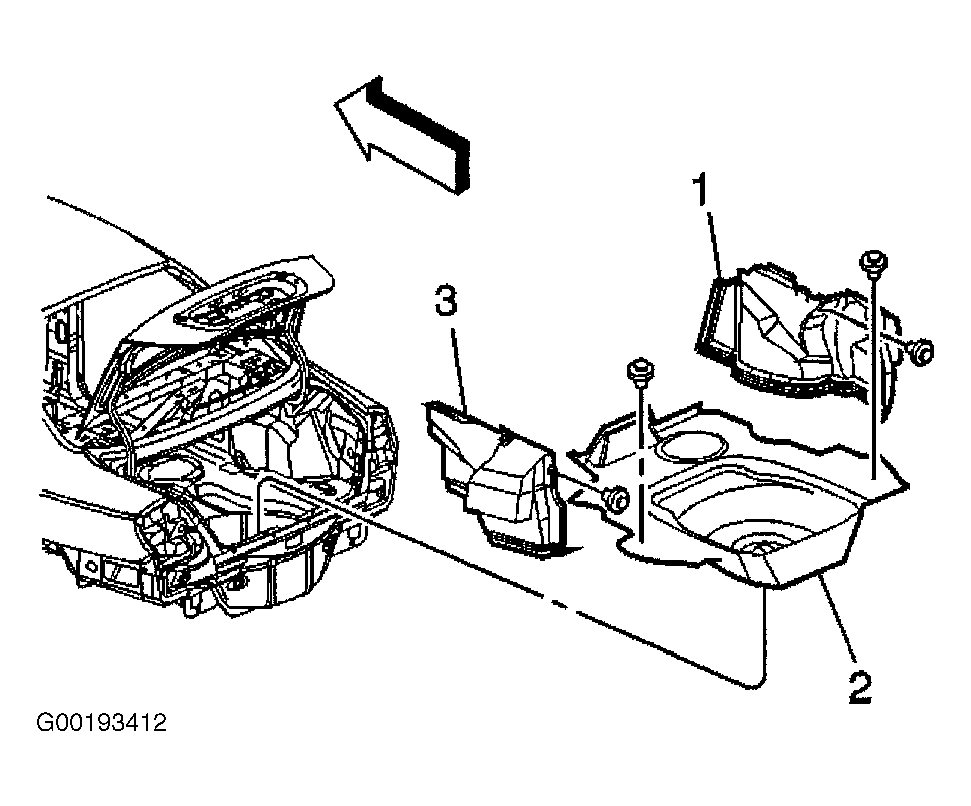

Fig 2: Removing Trunk Floor & Side Trim Panels
G00193412Courtesy of GENERAL MOTORS CORP.

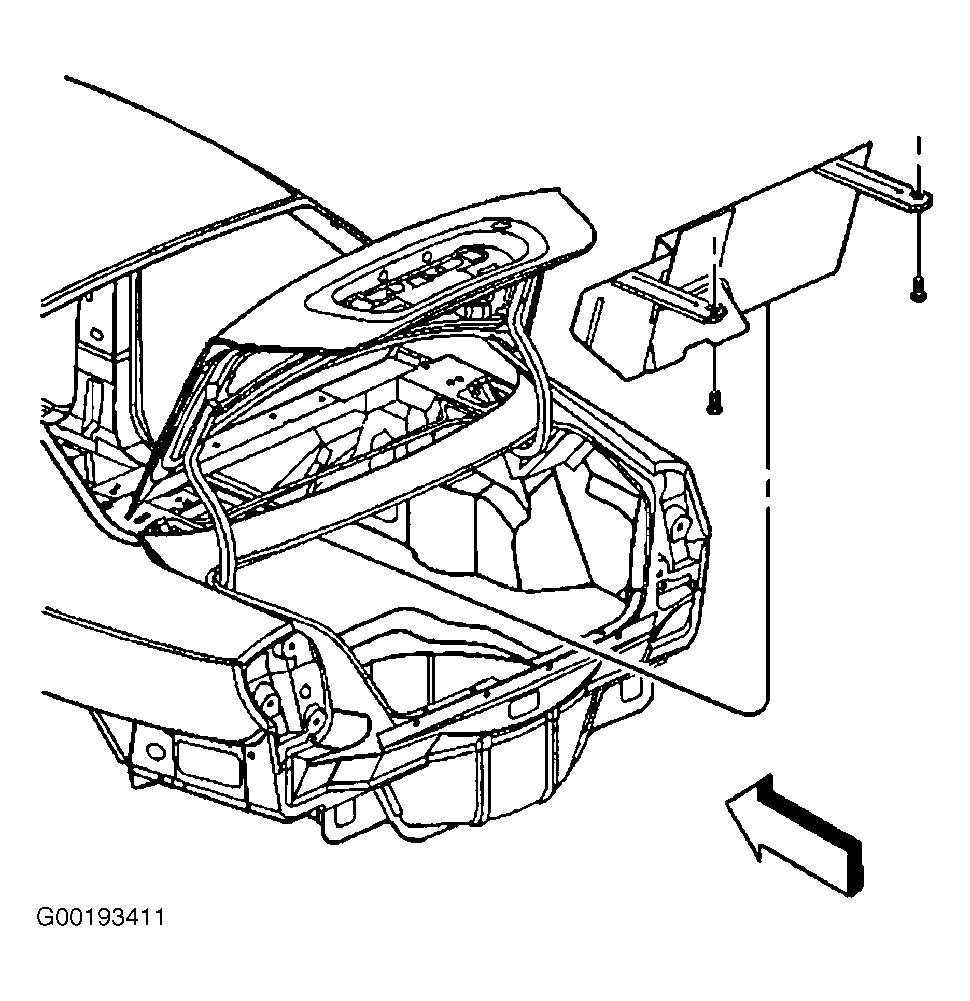

Fig 3: Removing Trunk Front Trim Panel
G00193411Courtesy of GENERAL MOTORS CORP.
